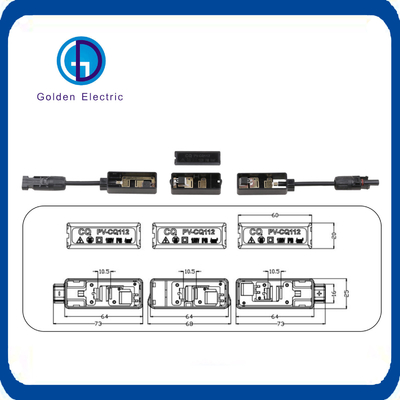

Corrosion Resistant Solar Module Junction Box GD-PV-CQ112 For Long Lasting Protection

Brand Name:	Golden Electric /OEM
MOQ:	1
Payment Terms:	LC, T/T, PayPal, Western Union
Supply Ability:	5000/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document:

Product Brochure PDF

Model NO.:

GD-PV-CQ112

Contact Resistance:

≦5mΩ

Cable Cross Section:

1*4mm²

Insulation Material:

PPO

Temperature Range:

-40~ +85ºC

Transport Package:

Carton/Pallet

Specification:

Different Sizes And Specifications

Trademark:

Golden Electric Or Customize

Origin:

China

HS Code:

8537209000

Supply Ability:

5000/Month

Type:

Solar Junction Box

IP Rating:

IP67

Certification:

CCC, CE

Power For PV Module:

285-350W

Rated Voltage:

1500V DC

Rated Current:

15A

Samples:

US$ 2/Piece 1 Piece(Min.Order) | Request Samp

Customization:

Available | Customized Request

Packaging Details:

Carton/Pallet

Supply Ability:

5000/Month

Highlight:

Corrosion Resistant Solar Module Junction Box

Long Lasting Solar Module Junction Box

GD-PV-CQ112 Protection Solar Panel Junction

Product Description

1 Product Description:

PV-CQ112 junction box got the TUV certificate, The maximum current of the junction
box could be changed according the different diodes.

2 Product Characteristic
b) It adopts the glue-filling sealing method, which is simple, convenient and safe to install
c) Good electrical performance.
d) Low contact resistance, extremely low power loss
e) The shell has excellent high and low temperature, anti-aging and anti-ultraviolet
performance, suitable for long-term outdoor use

Power for PV module	285-350W
Rated Voltage	1500V DC
Rated current	15A
Contact resistance	<=5mΩ
Cable cross section	1×4mm²
Insulation material	ppo
Temperature range	-40~ +85ºC
