Features

Specifications

Model NO.: GD-PV-CQ103

Contact Resistance: ≦5mΩ

Cable Cross Section: 1*4mm²

Insulation Material: PPO

Temperature Range: -40~ +85ºC

Transport Package: Carton/Pallet

Specification: Different Sizes And Specifications

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 8537209000

Supply Ability: 5000/Month

Type: Solar Junction Box

IP Rating: IP67

Certification: CCC, CE

Power For PV Module: 285-350W

Rated Voltage: 1500V DC

Rated Current: 13A

Samples: US$ 2/Piece 1 Piece(Min.Order) | Request Samp

Customization: Available | Customized Request

Highlight:

PV-Cq103 Solar PV Junction Box

Installation Solar PV Junction Box

Outdoor Solar Module Junction Box

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

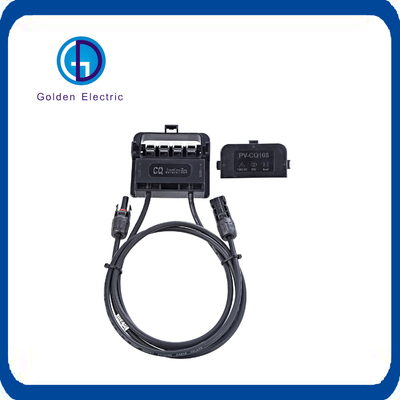

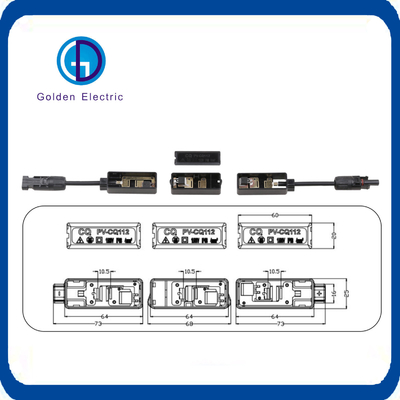

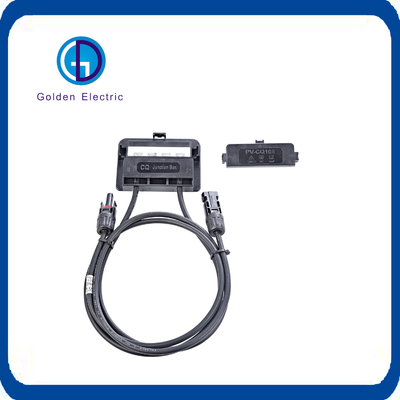

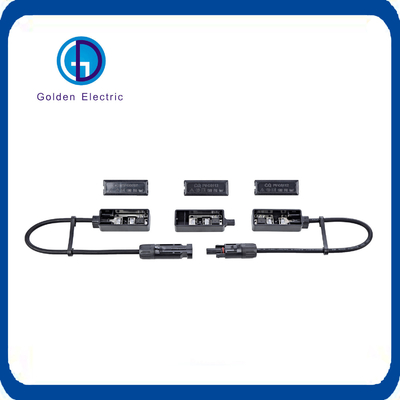

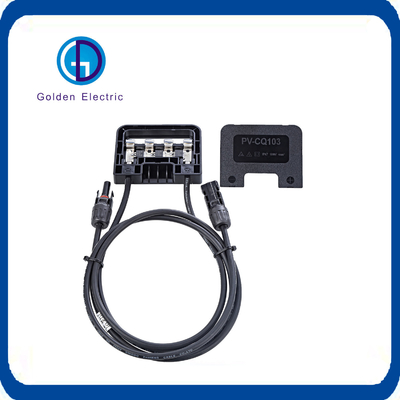

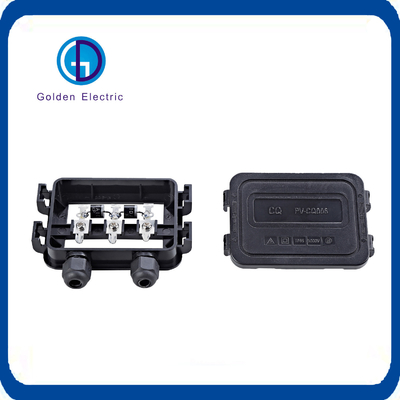

PV-Cq103 Solar Junction Box Outdoor Installation With Different Sizes

Product Description

PV-CQ103 junction box got the TUV certificate, The maximum current of the junction box could be changed according the different diodes.
PV-103 can transmit the current generated by a photovoltaic module through a cable

2 Product Characteristic
b) It adopts the glue-filling sealing method, which is simple, convenient and safe to install
c) Good electrical performance.
d) Low contact resistance, extremely low power loss
e) The shell has excellent high and low temperature, anti-aging and anti-ultraviolet
performance, suitable for long-term outdoor use

Power for PV module	285-350W
Rated Voltage	1500V DC
Rated current	13A
Contact resistance	<=5mΩ
Cable cross section	1×4mm²
Insulation material	ppo
Temperature range	-40~ +85ºC

Good Quality PV-Cq103 Solar Junction Box with Competitive Prices

1) Are you a factory or trading company?
Yes we are factories.

2) What is your FOB port?
FOB Guangzhou, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many
overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very
easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
