Features

Specifications

Materia: Lead

Copper Content Of Substrate: >=99.95%

Transport Package: Roll

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 8537209000

Supply Ability: 5000/Month

After-sales Service: 3years

Warranty: 3years

Condition: New

Certification: ISO, CE

Application: Industrial

Specification: All Kind Of Size, Different Sizes And Specifications

Samples: US$ 9.9/kg 1 Kg(Min.Order) | Request Sample

Customization: Available | Customized Request

Highlight:

Cuttable Solar PV Ribbon

Round Solar PV Ribbon

Cuttable Solar Panel Ribbon

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

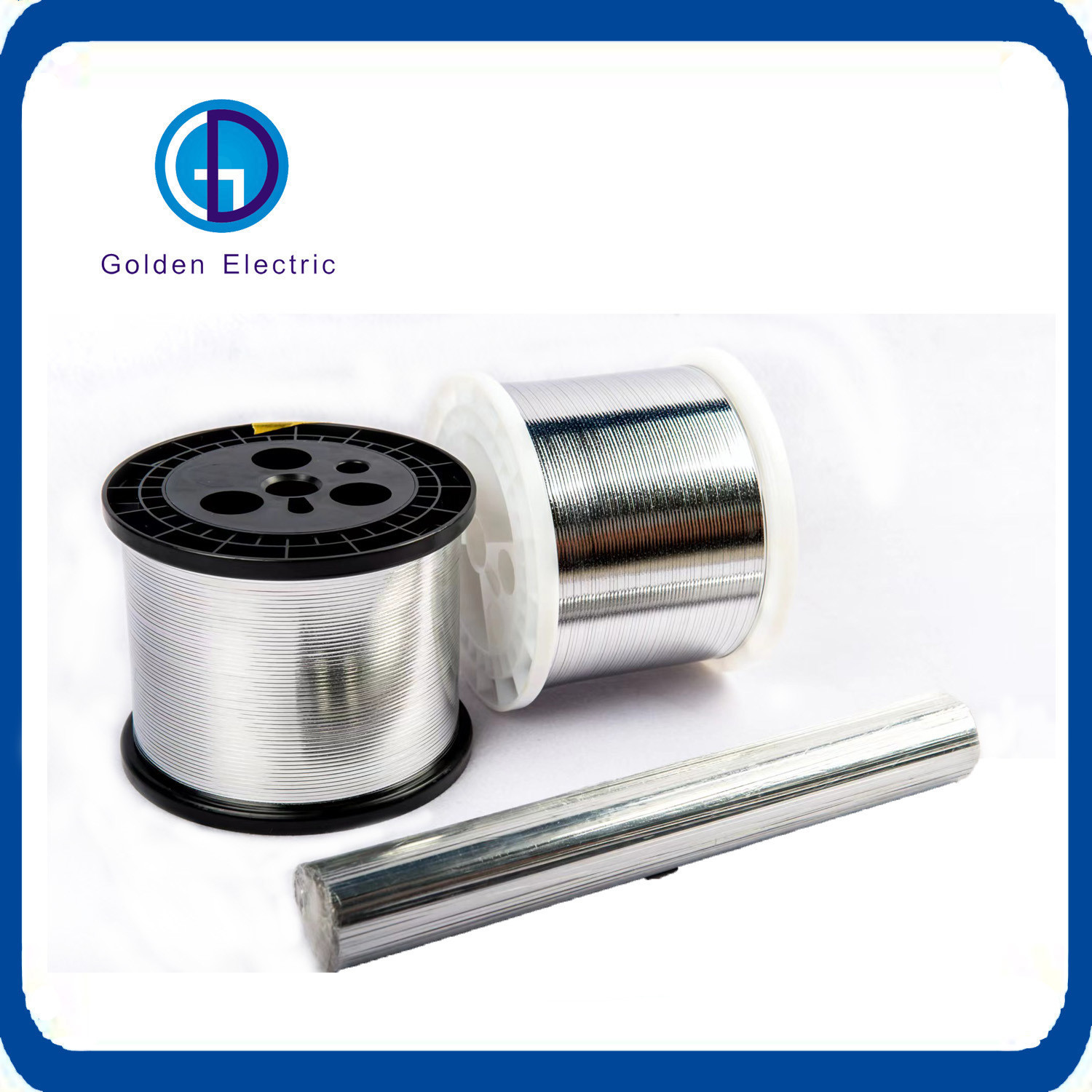

Cuttable Round Solar PV Ribbon With Copper Content Of Substrate 99.95%

Product Description

Product Description:

PV Ribbon is engineered to individual client specifications with dimensional and physical property flexibility to fit your solar module design.
*Rolled flat, from round wire for burr free ribbon with in-line gauge measurement for dimensional thickness and width accuracy & consistency;
* This combination of processes results in supelrior coatings and a completely burr free product;
* State of the art annealing ensures consistent physical properties with low yield strength, high elongation for low cell breakage;
* Lead or Lead free consistent solders applied on all four sicdes post production for a perfect bond between solar cell and tabbing ribbon;
* Precision levelled, wound and packaged for safe transport and problem-free strin

Main features:
1.Can be customized.
2.Stable quality.
3.Standard production chain and automatic line ensure fast delivery.
4.Passed SGS testing certification, fully in line with the European ROHS directive standards.

1.0 ×0. 25 Datasheet
Type Specification	1.0*0.25
Copper Content of Substrate	≥99.95%
Substrate Resistivity	≤0.01724Ω. mm2 /m
Fusion Point	143-189ºC
Single-sided Coating	20±5um
Thickness Tolerance	±0.01mm
Width Tolerance	±0.05mm

Elongation	≥25%
Tensile Strength	150~220MPa
RPO.2/Yield Strength RPO.2	≤65MPa
Sickle Bending	≤0.3%
Tabbing Ribbon Resistivity	≤0.0224Ω. mm2 /m
Solder ability(N)	≥1.ON

Product Details Display:

Cuttable Photovoltaic Round Busbar Panel Solar PV Ribbon

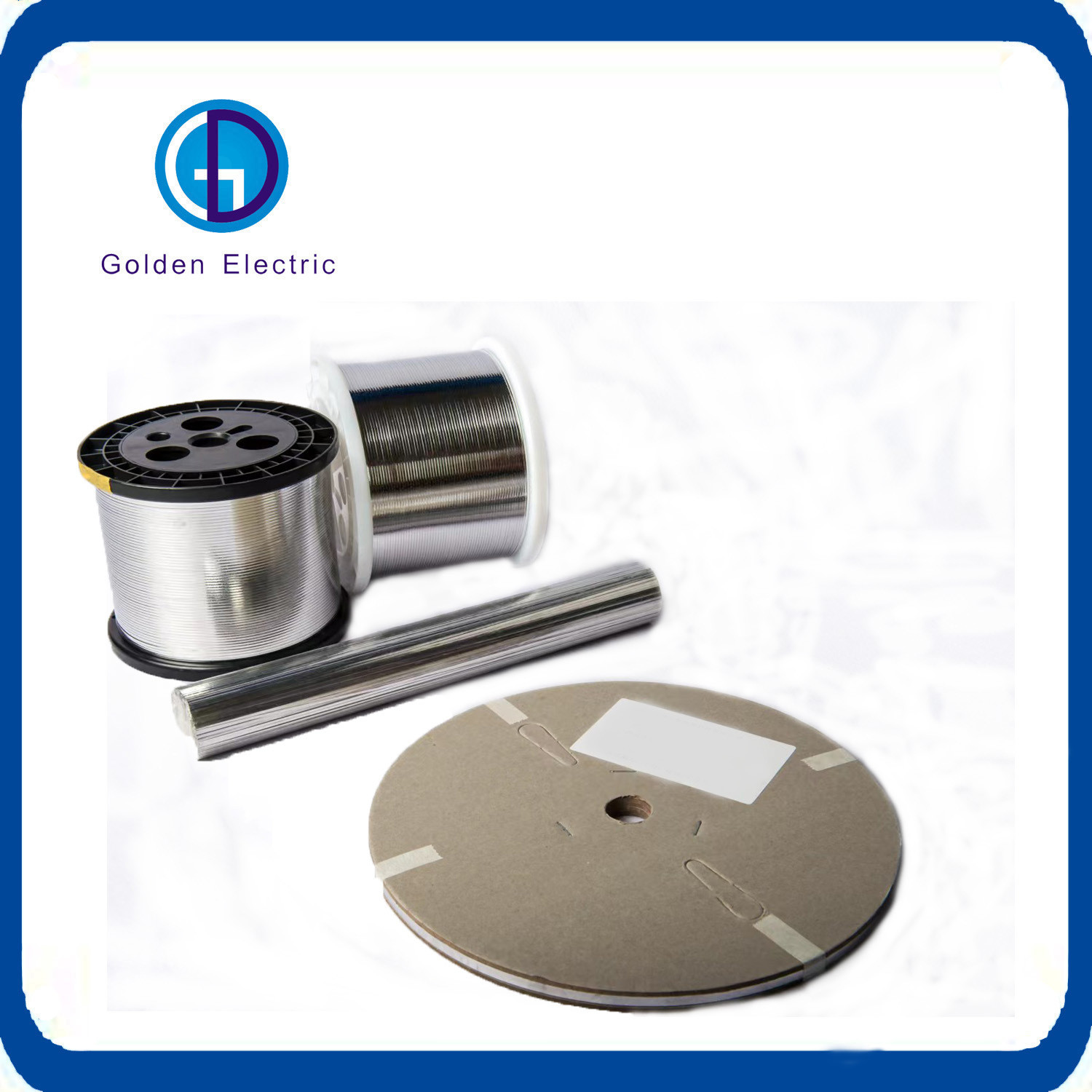

Package:

1) Are you a factory or trading company?
Yes we are factories.

2) What is your FOB port?
FOB Guangzhou, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many
overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very
easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
