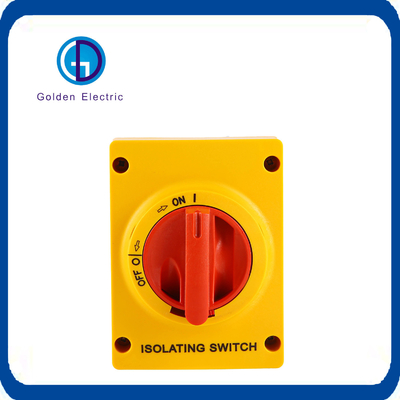

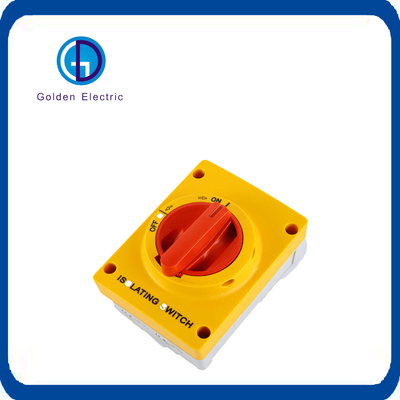

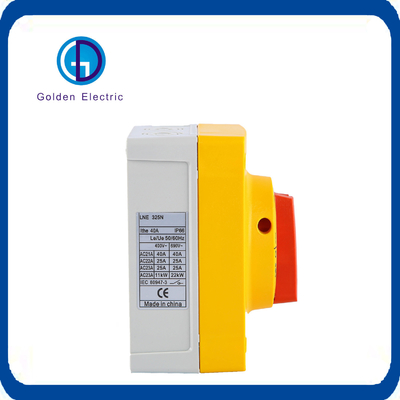

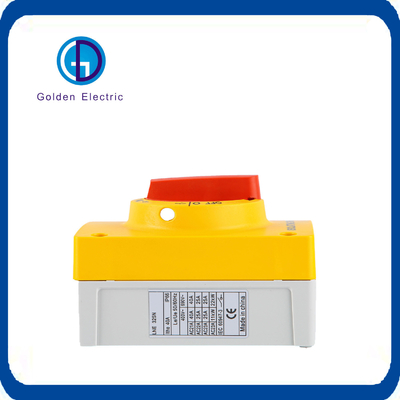

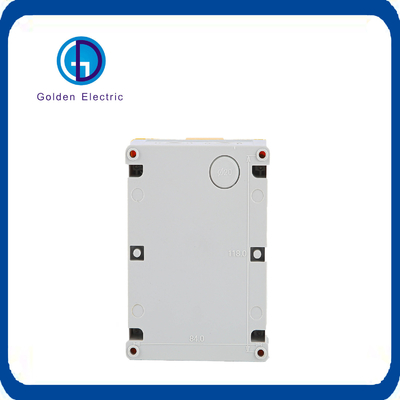

Waterproof IP66 AC Isolating Switch:
1.Rated insulation voltage 690V, current 20A~160A,commonly used in single-phase or three-phase AC system;
2.IP66 box body design, with the import of the sealing strip of the safety seal and dust,waterproof, anti ultraviolet materials;
3.Switch rotating operator (knob) with three lock position, reliable to prevent misuse;

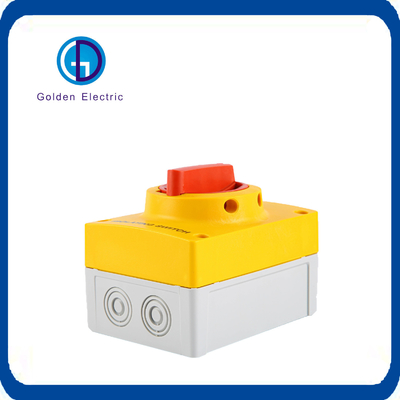

4.Suitable for different cable connectors: M25, M20, M16 and M12, optional waterproof cable connectors;
5.Large wiring operation space, the product is fixed on the box body, the connection is still convenient;
6.Adequate internal space, good heat dissipation effect, the whole machine can be loaded at -25ºC -70ºC;
7.Large contrast color design, easy to distinguish;
8.Protection degree: IP66.
Catalogue number construction
| Technical Parameters | | GS-25-3 | GS-32-3 | GS-40-3 | GS-63-3 | GS-80-3 |
| GS-25-4 | GS-32-4 | GS-40-4 | GS-63-4 | GS-80-4 |
| Rated Insulation Voltage | Ui | 690 | 690 | 690 | 690 | 690 | 690 |
| Rated Current | Ith | 20A | 25A | 32A | 40A | 63A | 80A |
| Rated Value@415V | AC21 | A | 20 | 25 | 32 | 40 | 63 | 80 |
| AC22 | A | 20 | 25 | 32 | 40 | 63 | 80 |
| AC23 | KW | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Switching Capacity@415V | Aeff | 120 | 150 | 220 | 300 | 370 | 440 |
| Breaking Capacity@415V | Aeff | 110 | 135 | 200 | 250 | 330 | 380 |
| Mechanical Life | 103 | 20 | 20 | 20 | 20 | 10 | 10 |
Other types of isolating switches
Packaging Details:
Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery Detail:
Shipped in 7 days after payment
