LCD Digital Power Programmable Timer Time Switch Customization Customized Request
Features Gallery Product Description Request A Quote
Features
Specifications
Internal Battery: 1.2V40mA(Rechargeable Battery
Exterior Dimension: 60×60×36mm
Mounting Way: Panel Mount Digital Timer
Time Error: ≤1s/24h 25ºC
Display Device: LCD
Working Voltage: 220-240VAC 50~60Hz
Timing Range: 1 Minutes To 168 Hours
Transport Package: Standard Export Carton
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8543709990
Supply Ability: 5000/Month
Protection: Waterproof
Certification: ISO9001, CE
Type: Electronic
Custom-Made Voltage: 5V,12V,24V,36,48V,110V
Timing Frequency: 17 Times Switch(Day / Week )
Voltage: From 240VDC To 12VDC
Samples: US$ 1/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description


Product Description

CN304 timer switch can open or close kinds of electrical apparatus and power automatically, according to preset time, the items can be streetlight, nion light (sign), billboard, electrical appliances, broadcast equipments etc, the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.

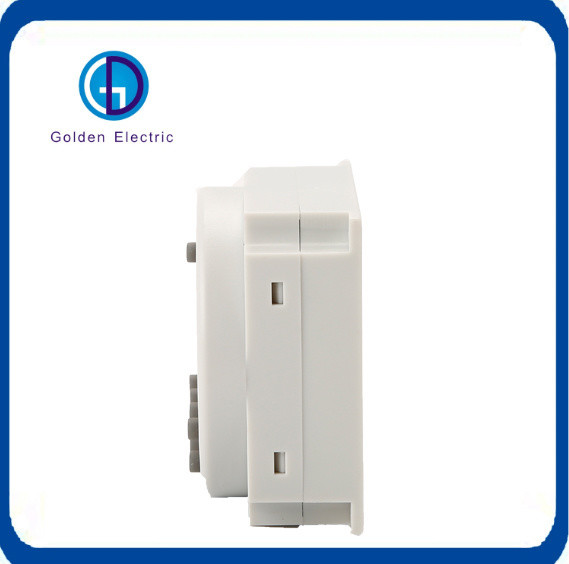

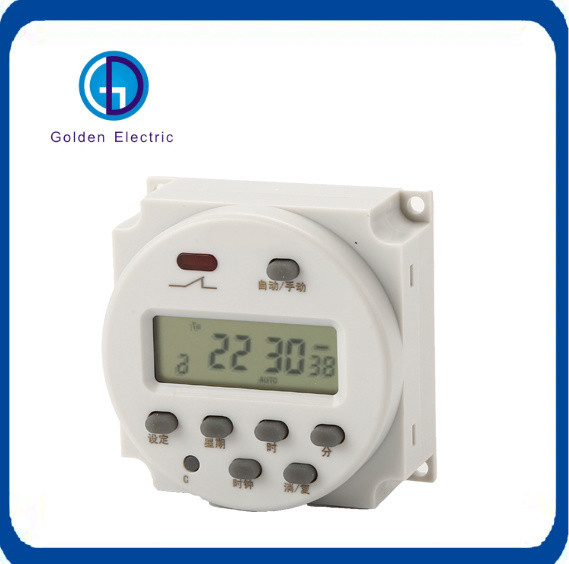

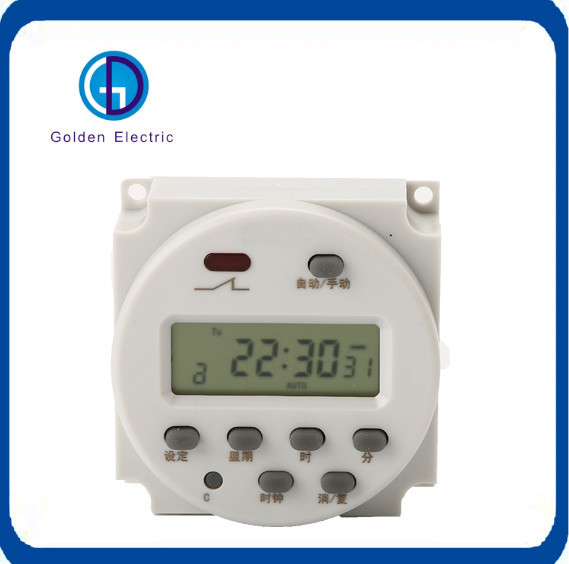

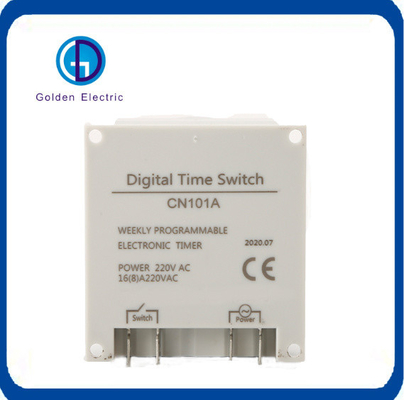

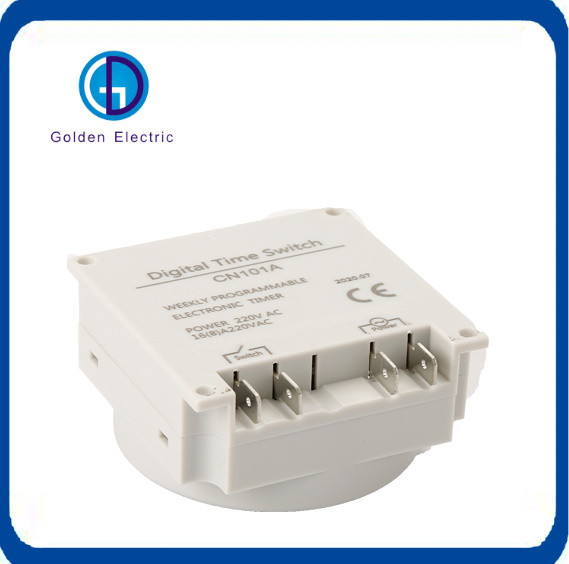

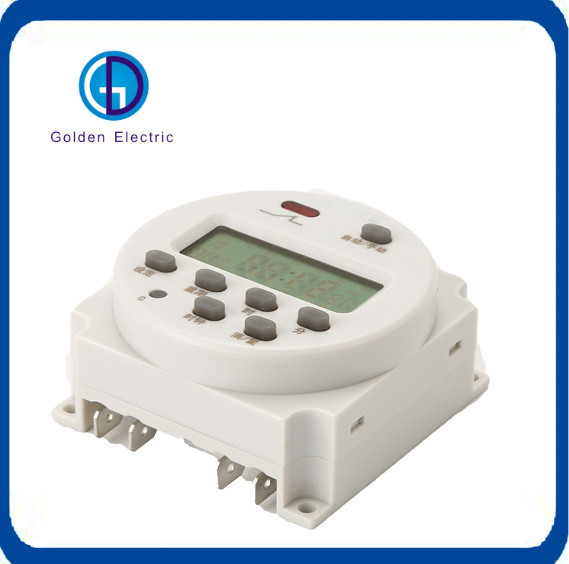

Detailed Photos

Factory Price LCD Digital Power Programmable Timer Time Switch
Factory Price LCD Digital Power Programmable Timer Time Switch

Product Parameters

Features:
100% Brand New and High Quality
The panel-mount digital timer series can be operated in 4 separate power supplies, ranges from 240V AC to 12V DC,output format can be produced to be volt-free or voltaic-output
The digital timer is accurate to the minute, hour, days, designed with either 17 ON/OFF (event) per day
Provide 15 combination of daily programs which can lead great convenience to user upon choosing the required days in a week for operation the time
Advanced pre-setting one week before, digital electronic timer switch with daily and weekly programs
Repeat programs with 17 on/off setting and manual override lithium battery power reserve when electric supply cut off

Regular Voltage:  220V/50-60Hz
OEM Voltage:  12V,24V,36V,48V,110,380V/50-60Hz DC

Control output:  16A,It can also be expanded to control the use.
Setting times:  17 times (day/week)
Setting time:  1 minute to 168 hours
Error:  1s/24h
Power failure memory:  180days (built-in 1.2V chargable battery)
Outside dimension:  60x60x32mm
Voltage Range 220V 50Hz   on off switch
Voltage scope 85%~110%
Capacitance Resistance Load  16A
Consumed power <5VA
Timing Control Range 1min~168h
Timing error <±2s/day(25°C±1°C)
Temperature -10°C~+50°C
Relative Humidity <95%
Dimension 120×72×50mm
Weight 210g

Factory Price LCD Digital Power Programmable Timer Time SwitchDetailed introduction:

Pannel mounted

Advanced pre-setting one week before

Digital electronic timer switch with daily programs

Repeat programs with 17 on/off setting and manual over-ride

Lithium battery power reserve when electric supply cut off

Auto timer error correction ±30sec,weekly

Switching current ac

Notice:

Shown on the Instruction Manual is "12V Wiring diagram"

The "POWER" should to connect DC 12V power. Never connect any other power on. The other side can depending on your need

If want to connect 110V electrical equipment. Wiring is depending on "0-250V Wiring diagram"

No matter which Wiring diagram. The "POWER" only allow to connect DC 12V power

Power"~" is not meaningful, custom-made voltage is DC12V
