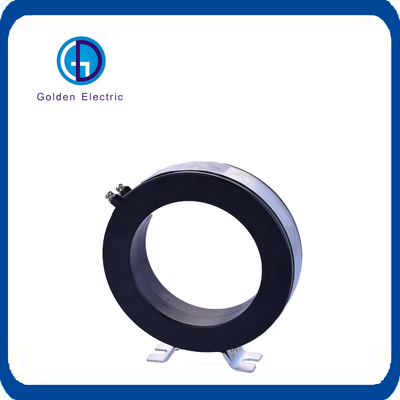

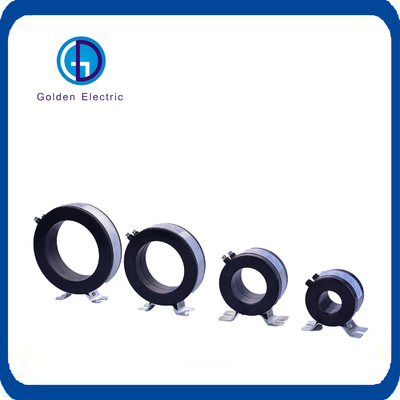

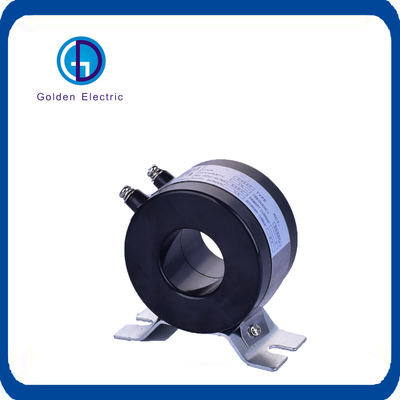

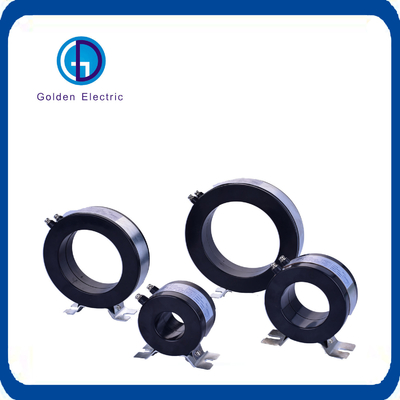

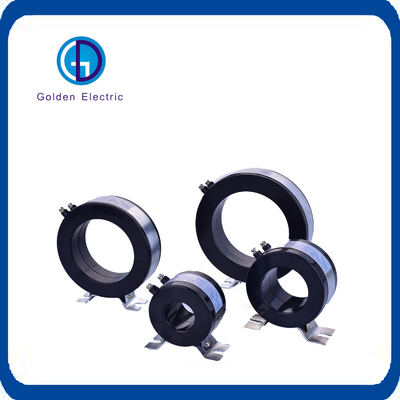

Protection and Rct Mr Series Low Voltage Ring Type Electric Current Power Transformer

Brand Name:	Golden Electric /OEM
MOQ:	1
Payment Terms:	LC, T/T, PayPal, Western Union
Supply Ability:	5000/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document:

Product Brochure PDF

Model NO.:

E-115 SERIES

Insulating Medium:

Common Insulating Materials

Installation:

Busbar Type

Magnetic Circuit Structure:

Cascade Type

Voltage Transformation Principle:

Electromagnetic Type

Output Signal Type:

Digital Output

Operating Temperature:

-30c To 70c

Measuring Range:

0-50A

IP Rating:

IP30

Accuracy Grade:

0.5g

Output Connection:

Terminal

S_Customized:

Yes

Construction:

Screw

Accuracy Class:

0.5 / 1.0

Bobbin:

PBT

Transport Package:

Cartoon

Specification:

According To Customer Demand

Trademark:

Golden Electric

Origin:

China

HS Code:

8504311000

Supply Ability:

50000PCS/Month

Application:

Electronic, Instrument, Position Sensor, Audio, Lighting, Power

Type:

Current Transformer

Phase:

Single

Operation Condition:

Indoor

Usage:

Protection, Measurement

Winding Form:

Multilayer Honeycomb Type

Samples:

US$ 5/Piece 1 Piece(Min.Order) | Request Samp

Customization:

Available | Customized Request

Packaging Details:

Carton/Pallet

Supply Ability:

5000/Month

Product Description

Application:

1.Current measurement
2.Monitoring and protection
3.Energy and sub-metering products
4.Network equipment
5.Instruments and sensors
6.Control systems

Technical parameter&Dimension of case(mm)
RCT SERIES

Type	Picture	Rated current(A)	Rated power(VA)	Class	Rated Voltage(KV)	Rated Frequency(Hz)
RCT-35		20/5A-300/5A	1.5-5	0.5/1.0	660	50/60
RCT-58		300/5A-1000/5A	5-10	0.5/1.0	660	50/60
RCT-90		600/5A-2000/5A	5-20	0.5/1.0	660	50/60
RCT-110		1200/5A-5000/5A	10-30	0.5/1.0	660	50/60

Type	A	B	C	D	E	F
RCT-35	36	78	95	84	90	53
RCT-58	58	102	93	80	113	57
RCT-90	92	93	138	85	153	45
RCT-110	112	110	165	96	180	45

Qutline Drawing:
Protection and Rct Mr Series Low Voltage Ring Type Electric Current Power Transformer 1

MR SERIES

Type	Picture	Rated current(A)	Rated power(VA)	Class	Rated Voltage(KV)	Rated Frequency(Hz)
MR-28		30/5A-100/5A	1.5-5	0.5/1.0	720	50/60
MR-42		100/5A-250/5A	5	0.5/1.0	720	50/60
MR-45		300/5A-400/5A	5	0.5/1.0	720	50/60
MR-60		400/5A-800/5A	5-10	0.5/1.0	720	50/60
MR-85		600/5A-1000/5A	5-10	0.5/1.0	720	50/60
MR-125		1200/5A-5000/5A	10-30	0.5/1.0	720	50/60

Type	ID	OD	HT
MR-28	28	70	40
MR-42	42	80	30
MR-45	45	80	30
MR-60	60	100	30
MR-85	86	120	20
MR-125	125	165	20

Qutline Drawing:
Protection and Rct Mr Series Low Voltage Ring Type Electric Current Power Transformer 3
