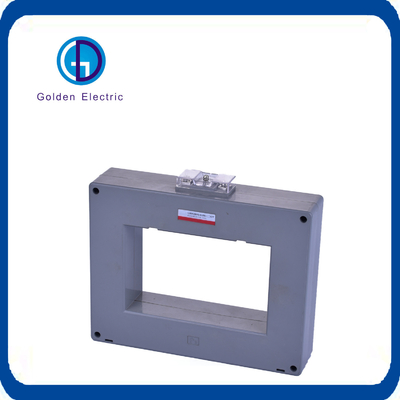

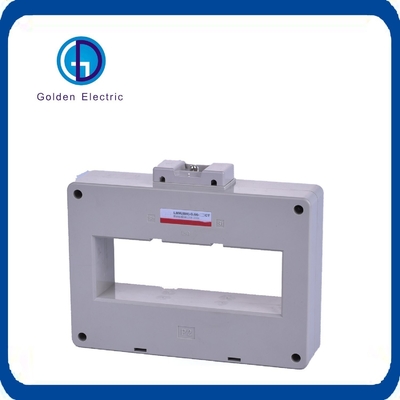

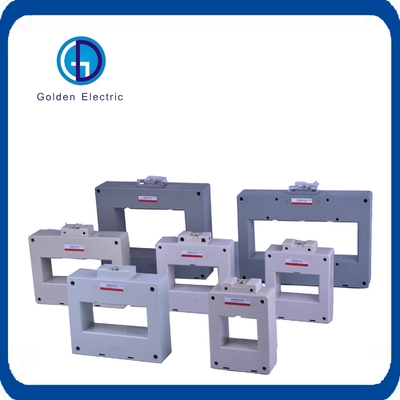

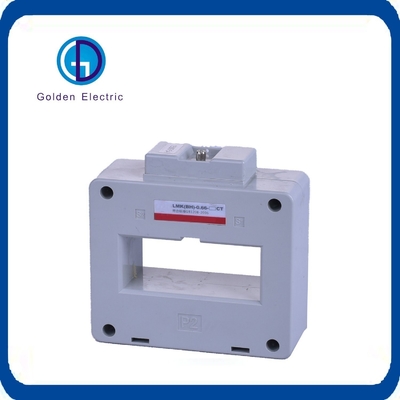

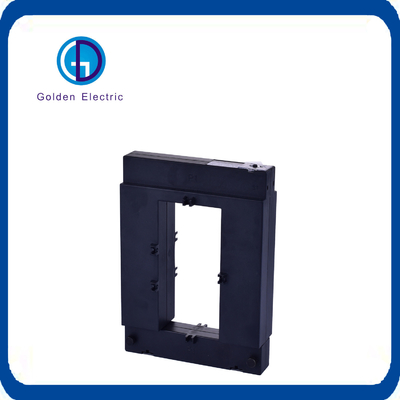

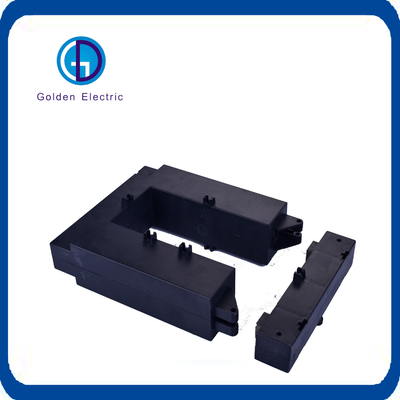

SDH Kct Series Low Voltage Current Transformer/CT for Ammeter Volt Meter Customization

1
MOQ
SDH Kct Series Low Voltage Current Transformer/CT for Ammeter Volt Meter Customization
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: E-11 SERIES
Insulating Medium: Common Insulating Materials
Installation: Busbar Type
Magnetic Circuit Structure: Cascade Type
Voltage Transformation Principle: Electromagnetic Type
Output Signal Type: Digital Output
Operating Temperature: -30c To 70c
Measuring Range: 0-50A
IP Rating: IP30
Accuracy Grade: 0.5g
Output Connection: Terminal
S_Customized: Yes
Construction: Screw
Accuracy Class: 0.5 / 1.0
Bobbin: PBT
Transport Package: Cartoon
Specification: According To Customer Demand
Trademark: Golden Electric
Origin: China
HS Code: 8504311000
Supply Ability: 50000PCS/Month
Application: Electronic, Instrument, Position Sensor, Audio, Lighting, Power
Type: Current Transformer
Phase: Single
Operation Condition: Indoor
Usage: Protection, Measurement
Winding Form: Multilayer Honeycomb Type
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description
Application:

1.Current measurement
2.Monitoring and protection
3.Energy and sub-metering products
4.Network equipment
5.Instruments and sensors
6.Control systems

Technical parameter&Dimension of case(mm):
SDH SERIES
Type Picture Rated current(A) Rated power(VA) Class Rated Voltage(KV) Rated Frequency(Hz)
SDH-40 SDH Kct Series Small Low Voltage Current Transformer/CT for Ammeter Volt Meter 100/5A-600/5A 1.5-5 0.5/1.0 720 50/60
SDH-60 300/5A-1000/5A 5-10 0.5/1.0 720 50/60
SDH-80 400/5A-2000/5A 5-20 0.5/1.0 720 50/60
SDH-100 800/5A-4000/5A 10-30 0.5/1.0 720 50/60
SDH-120 1000/5A-5000/5A 10-30 0.5/1.0 720 50/60
SDH-150 3000/5A-8000/5A 30 0.5/1.0 720 50/60
Type A B C D E F
SDH-40 42 32 78 104 47 45
SDH-60 62 32 102 112 46 53
SDH-80 82 32 122 120 46 60
SDH-100 102 32 141 123 50 73
SDH-120 122 52 165 152 50 80
SDH-150 152 52 206 163 52 82
Qutline Drawing:
SDH Kct Series Small Low Voltage Current Transformer/CT for Ammeter Volt MeterKCT SERIES
Type Picture Rated current(A)     Rated power(VA) Rated Voltage(KV) Rated Frequency(Hz)
Class:0.5 Class:1
KCT-23 SDH Kct Series Small Low Voltage Current Transformer/CT for Ammeter Volt Meter 200/5   1.5 720 50/60
250/5   2.5 720 50/60
300/5 1.5 2.5 720 50/60
400/5 2.5 5 720 50/60
500/5 2.5 5 720 50/60
KCT-58 SDH Kct Series Small Low Voltage Current Transformer/CT for Ammeter Volt Meter 200/5   1.5 720 50/60
300/5   2.5 720 50/60
400/5 1.5 5 720 50/60
500/5 2.5 5 720 50/60
600/5 2.5 5 720 50/60
750/5 2.5 5 720 50/60
800/5 5 5 720 50/60
1000/5 5 10 720 50/60
KCT-88 SDH Kct Series Small Low Voltage Current Transformer/CT for Ammeter Volt Meter 200/5   1.5 720 50/60
300/5   1.5 720 50/60
400/5 1.5 2.5 720 50/60
500/5 2.5 2.5 720 50/60
600/5 2.5 5 720 50/60
750/5 2.5 5 720 50/60
800/5 3.75 5 720 50/60
1000/5 5 7.5 720 50/60
KCT-812 500/5   2.5 720 50/60
600/5   2.5 720 50/60
750/5 2.5 5 720 50/60
800/5 2.5 5 720 50/60
1000/5 3.75 7.5 720 50/60
1200/5 5 10 720 50/60
1250/5 5 10 720 50/60
1500/5 7.5 10 720 50/60
KCT-816 1000/5 5 10 720 50/60
1500/5 7.5 10 720 50/60
2000/5 10 15 720 50/60
2500/5 15 20 720 50/60
3000/5 20 25 720 50/60
4000/5 20 25 720 50/60
5000/5 20 25 720 50/60
6000/5 25 30 720 50/60
Qutline Drawing:
SDH Kct Series Small Low Voltage Current Transformer/CT for Ammeter Volt Meter
