110V LED Voltage 110V Flat IP67 Waterproof Metal Push Button Switch for Electronic

1
MOQ
110V LED Voltage 110V Flat IP67 Waterproof Metal Push Button Switch for Electronic
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: Power Built-in Type
Usage: Control Button, Start Button, Control Switch
Kind: Double-pole On-off Switch
Contact Type: Type A Contact
Detection Method: Retro-reflective Mode
Max. Voltage: 220V/500V
AC Rated Operation Current: >15A
Protection Level: IP67
Holes: According To Customer Demand
Color: Orange Red
External Size: Standard
Sample: Available
Material: Al Alloy Or Stainless Steel
Button Type: Round, Flat, High
Mounting: Different Current Sizes Are Different
LED Voltage: 2V,3V,5V,6V,12V,24V,36V,110V,220V Etc.
Mounting Dimension: 12mm, 16mm, 19mm, 22mm, 25mm, 28mm
Rating: 2A 250VAC, 2A36VDC
LED Type: DOT, Ring, Power Logo
LED Color: Red/Green/Yellow/Blue/White
Transport Package: Export Standard Packing
Specification: Size According To Customer Demand
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 853650000
Supply Ability: 50000PCS/Month
Protection: Durable, Waterproof
Feature: Flat
Wiring: Null Line And Live Line
Principle: Capacitive
Application: Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa
Number Of Switch: Multi Control Switch
Samples: US$ 10/Piece 1 Piece(Min.Order) | Request Sam
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description



Product Description

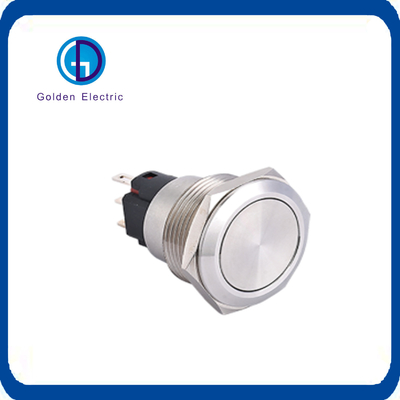

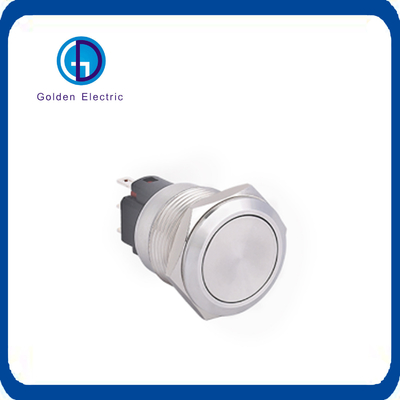

IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch

      IP67 Waterproof Electronic Power Metal  Push Button Switch

The Switch Rating is up to 3A 220VAC and offering Momentary or Lock Function for options. The Switch can be with the LED as well. More data and information as below:

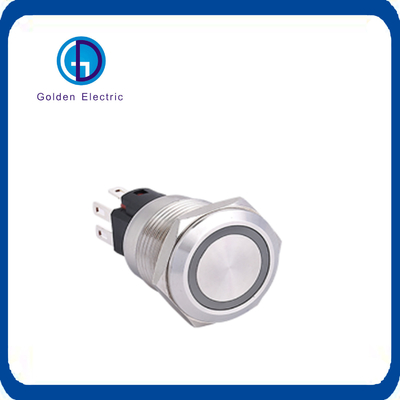

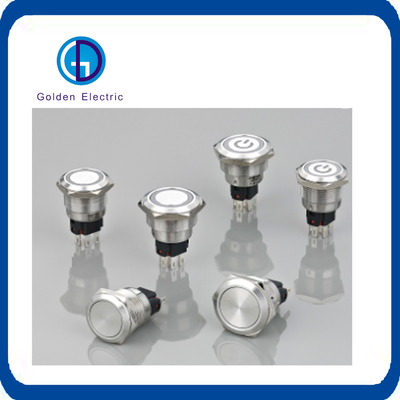

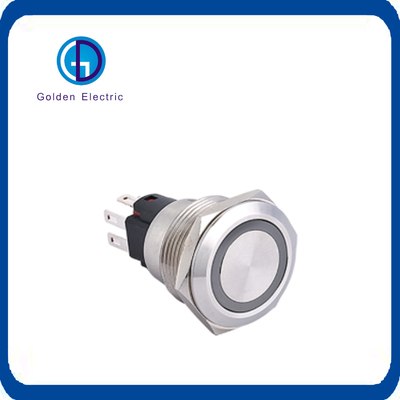

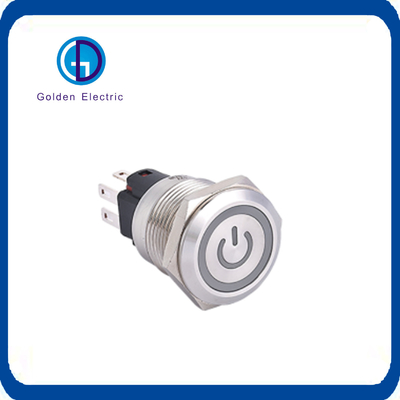

The operating life of this Metal Power Switches up to 1,000,000 life cycles (momentary) and 500,000 (latching). This  Illuminated Push Button Switch have Illuminated pattern options include dot, ring or power symbol.

Furthermore, the stainless steel is resistant to damage IK10, it is very hard and reliable. Therefore, this series of Waterproof On Off Switch is widely used in automobiles, ships, medical and large mechanical equipment.

IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch

Product Parameters

Product name Metal push button switch
Mounting hole 8mm,10mm,12mm,16mm,19mm,22mm,25mm,28mm,30mm,40mm
Protection Level IP67
Operation type Momentary or latching
Switch Combination 1no1nc,2no2nc,1no,1nc
Illuminated or not Illuminated or non-illuminated
Led voltage 2v,3v,5v,6v,12v,24v,36v,110v,220v etc.
Led color Red,yellow,blue,green,white,bi-color,tri-color
Illuminated type Ring led,dot led
Material Stainless steel,brass nickel plated,aluminum alloy
Head type Flat head,high flat head,dome head etc.
Terminal type Terminal pin or wire leadig
Delivery date 5-7 work days
Certificate CE
Customized Acceptable
Feature Waterproof
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button SwitchIP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch
Hot Product
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch

Packaging & Shipping

 Packing:Standard export carton packing

Shipping:1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch

Company Profile

 - Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

  - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

  - Golden is always striving hard to provide the best services and competitive price to all customers.

RELATED PRODUCT


IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch
IP67 Waterproof Electronic LED Momentary Push Button Switch Locking Metal Push Button Switch

If you are interested in our products , please feel free to contact with us ,we will try our best to meet your demand

FAQ

Q 1. What's the payment term?
A. We accept TTWestern Union, Paypal,L/C And Ali trade assurance.
Q 2. How's the delivery time ?
A. It rests with the quantity you need, 1-30 days usually.

Q 3. The standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer Form A Form E or C/O ?
A. It's totally not a problem. We can prepare relative documents to foreign affairs office or other office  to apply for this certificate.

Q5.Would you accept to use other logo ?
A. If you have good quantity, it absolute no problem to do OEM.
