Solar Surge Protector Device 2p 3p 500V 1000V 1200V 1500V Power Source Arrester Imax 40ka

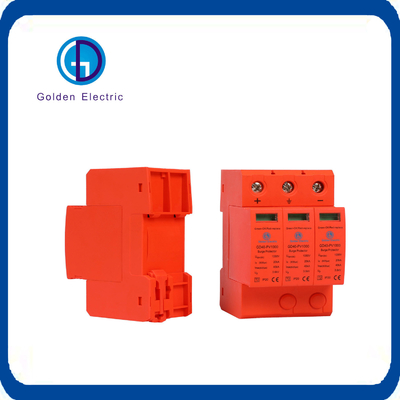

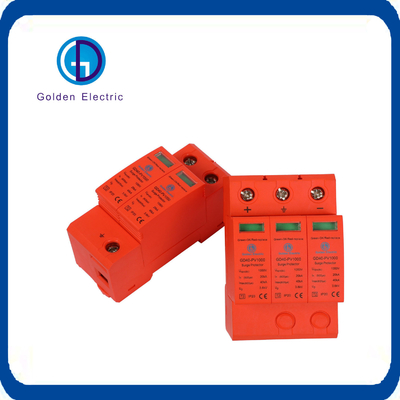

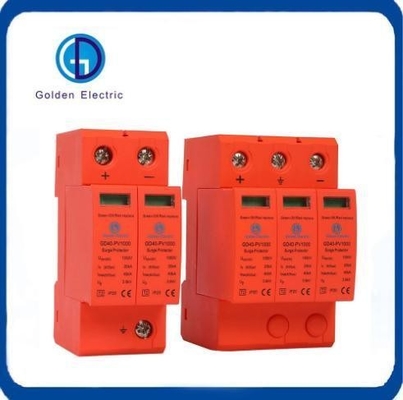

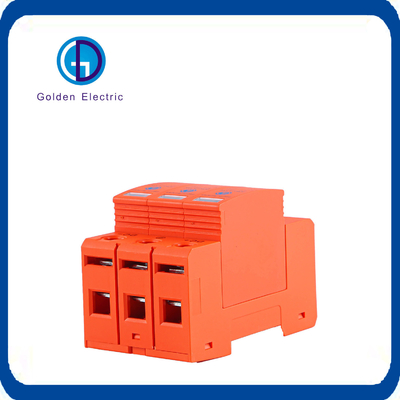

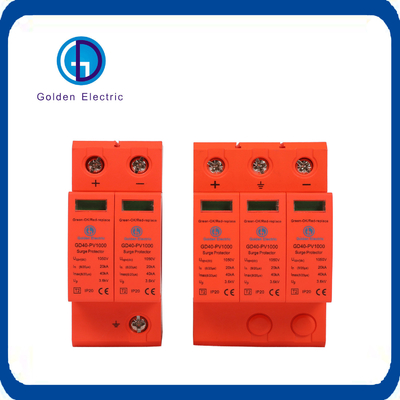

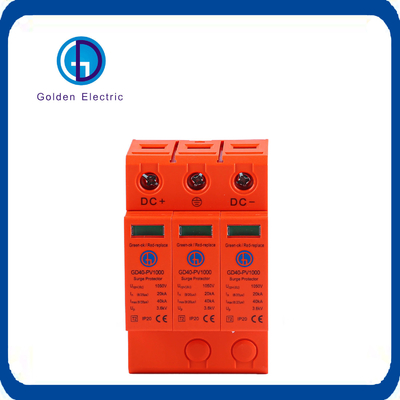

GD40-PV1000 series of DC Surge Protector Device (SPD) for use in Photovoltaic applications. Surge protective devices provide protection from lightning current and overvoltage surges in system from 500VDC to 1500VDC.

Provding power with photovoltaic solar panels is tremendously interesting in the context of renewable energy sources, as regards economical photovoltaic systems connected to the public electricity network. Because of their exposition, frequently in isolated sites and of the extended surface of photovoltaic system (PV), lightning strikes are a major components in risk to be assumed, both for the direct effect of lightning on the structures, and of the surge overvoltages on the installation. Cells are generally associated with inverters, has devolped a specfic Din Rail product to protect DC side of cells and inverters against surge in power plant or residential application.
With the MOV (Metal Oxside Varistor), the overvolatge will be limited at the value of the voltage protection level of the GD40-PV1000 DC surge protector, as recommended in standards and guides, insure all protections(between + and - , + and Ground, - and Ground). On each surge arrester, as option , an available auxiliary contact will inform the end life status to ensure a maximum effciency.


Surge Protective Device Arrester Packing List:

PV Surge Protective Device SPD Features:
a.Module design, convenient installation,with easy electric maintains operation
b.Built-in over current and over heat, temperature control open circuit technology
c.Adopt independent intelligence property right and high performance sensitivity resistance plates
d.Small creepage current,fast response time, remnant low voltage
e.With remote connection, can realize remote control

Application:
(1)Product Description:
This solar spd 20KA-40KA SPD is applied to provide fine overvoltage protection of
electronic equipment whose power is supplied by direct-current power supply.
 It is D-level overvoltage protection device, is design according to IEC and GB standard,
 is available in a variety of different power supply voltage and selector corresponding specifications.
It is use for high temperature resistant plastic with excellent tightness, and easy to install wiring.
Adopt temperature control circuit technology which has built-in over current breakers and thermal fuse circuit breakers, automatically trip because of deterioration.
It is designed modular deterioration instructions, flame-retardant shell.
It has dustproof, anticorrosion and other functions.
It is used in a relatively harsh environment staying a long-term stability
The remote signal port can achieve remote alarm control.
It is widely used in the DC power lightning protection of solar power systems, mobile communication base
stations, microwave communications bureau, telecommunications room, plant, civil aviation, finance,
securities and other system.


- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Wind Turbine, Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

*Package:International standard packaging
