Features

Specifications

Model NO.: CN304

Custom-Made Voltage: 5V,12V,24V,36,48V,110V

Working Voltage: 220-240VAC 50~60Hz

Timing Frequency: 17 Times Switch(Day / Week )

Transport Package: Standard Export Carton

Specification: 4/5 Pins

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 9107000000

Supply Ability: 20000PCS/Month

Number Of Switch: Multi Control Switch

Protection: Waterproof

Certification: CCC, RoHS, ISO9001, CE

Type: Mechanical

Voltage: From 240VDC To 12VDC

Mounting Way: Panel Mount Digital Timer

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

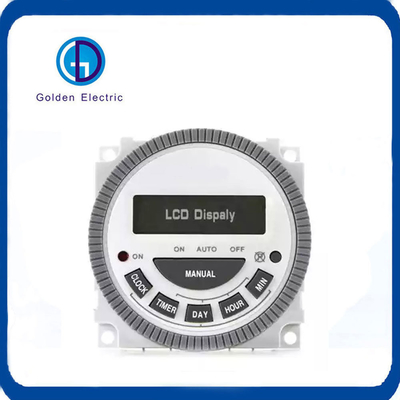

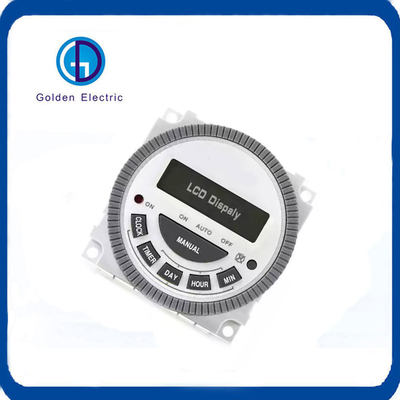

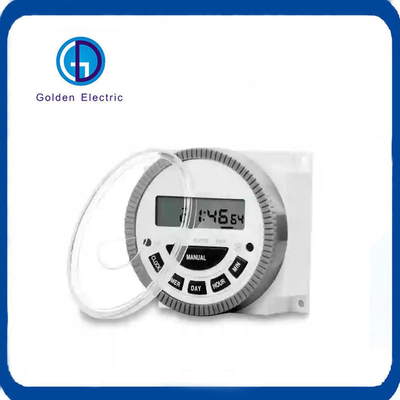

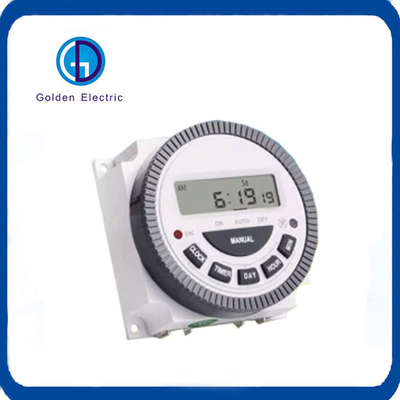

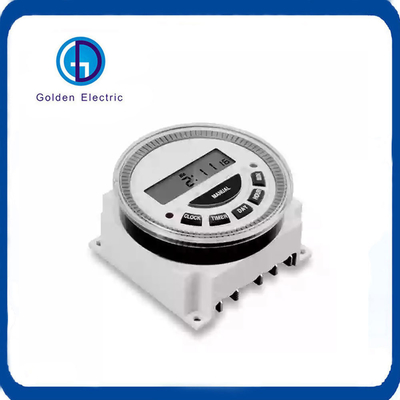

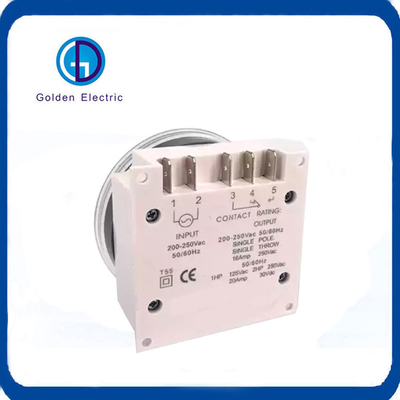

17 Times Switch Digital LCD Power Timer Switch for Industrial AC220V 110V 24V 12V 16A

Product Description

CN304 220-240VAC industrial timer switches module Indoor wall installation timers

The products according to the time set by the user, automatically turn on and turn off the variety of electrical equipment, agruculture, aquaculture,warhouse exhaust dehumidifier automatically preheat optimal control products, such as radio and television equipment.

This Panel-Mount Digital Timer series can be operated in 4 separate power supplies, ranges from 240VAC to 12VDC. Output format can be produced to be Volt-free or Voltaic-output.

Batteries of 1V2/40Mah or recharge bie V60D available for which id for retaining the programing during Timer's so operating power disconnected.

Panel Mounted
Advanced pre-setting one week before
Digital electronic timer switch with daily & weekly programs
Repeat programs with 17 on/off setting and manual override
Lithium battery power reserve when electric supply cut off

Ambient Temperature	-10ºC~+40ºC
Working Voltage	220-240VAC 50~60Hz
Power consumption	≤2W
Custom-made voltage	12V,24V,36,48V,110V
Control power	16(8)250VAC
Display device	LCD
Timing range	1 minutes to 168 hours
Power failure memory	60 days
time error	≤1s/24h 25ºC
Internal battery	1.2V40Ma(Rechargeable battery )
timing frequency	17 times switch(Day / week )
Exterior dimension	60×60×36mm
Installation method	Panel and apparatus
Voltage rating	≤48VDC/AC,110VAC±15%.220VAC±15%
ON/OFF operation	17 ON/OFF
Service life	Mechanical 10⁷ ,Electrical 10⁷
Ambient Humidity	35-85%RH
Battery life	3 years (Lithium battery)

Programming& PRODUCT SIZE

A. Functional description to buttons on panel

1. TIMER: programs review & setting programs

2. MANUAL: To select "ON, AUTO or OFF"

3. CLOCK: To adjust current DAY and TIME

4. DAY: To adjust day or week

5. HOUR: To adjust hour

6. MIN: To adjust minute

7. LED: To indicate ON/OFF status

B. Adjusting CLOCK
Press and hold CLOCK and the press DAY key, HOUR key, MIN key respectively to adjust clock of Timer to accurate DATE, HOUR, MINUTE. 24-Hour-Format LCD screen shall indicate 0:00~23:59

Product Size

Digital LCD Power Weekly Programmable Timer Time Switch Relay AC220V 110V 24V 12V 16A Industrial Timer Switch

Digital LCD Power Weekly Programmable Timer Time Switch Relay AC220V 110V 24V 12V 16A Industrial Timer Switch

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Timer Switch,Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse, busbar clamp etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Timer Switch guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Timer Switch.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
