Features

Specifications

Application: AC/DC System

Size: Small

Operation Voltage: Low Voltage

Shape: Module

Material: Aluminum Alloyed

Brand: Golden Or OEM

Weight: 60g

Color: Black

SPD Location: Indoor

Product Name: 12VDC Surge Protector

Nominal Voltage: 6V/12V/24V/48V

Maximum Working Current: 300mA

Series Resistance: 15Ω

Working Temperature: -40ºC+80ºC

Transport Package: Standard Export Carton

Specification: 2p And 3p

Trademark: Golden Or Netural Or Customer Brand

Origin: China

HS Code: 8536300000

Supply Ability: 50000PCS/Month

Package Size: 10.00cm * 5.00cm * 3.00cm

Package Gross Weight: 2.000kg

Type: Power Source Arrester

Structure: Plugable

Installation: DIN Rail

Samples: US$ 9/Piece 1 Piece(Min.Order) |

Customization: Available | Customized Request

Shipping Cost : About Shipping Cost And Estimated Delivery Time.

: Initial Payment Full Payment

Currency: US$

Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

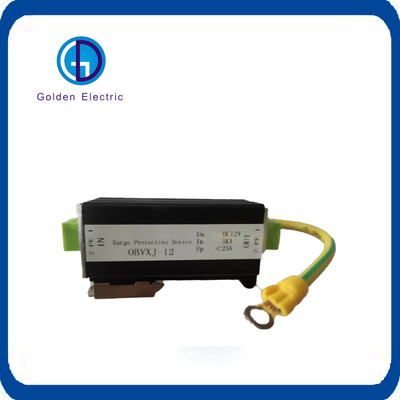

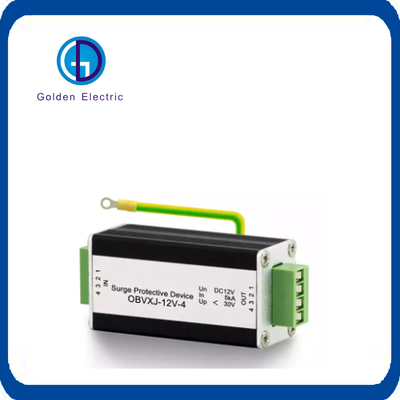

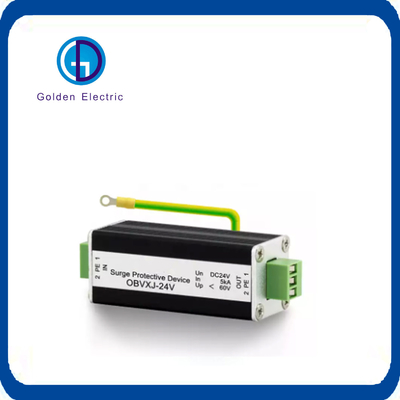

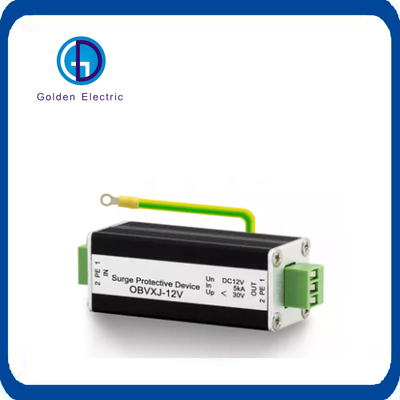

DIN Rail Installation 12VDC Surge Protector for Date Line Remote Testing Signal Protection

Product Description

OBVXJ is the series of devices for discharging transient overvoltages induced in RS 485 networks.OBVXJ designed for protection of data,communication,measuring and control lines against surge effects.The protector with RS485 input and output connectors.able to hold up nominal discharge currents of 5kA for each line.

-Suitable for the protection of instrumentation installed in RS485 networks.By their nature,they are highly exposed to induced transient overvoltages(surges) associated with meteorological activity.
- Protection of 1or 2 pairs of wires.
-For nominal voltage.Un:12V24V48V
-Low residual voltage in all the working voltages.
-Available with optional Din-rail mountable.
12VDC Surge Protector Date Line Surge Protector, Remote Testing Signal Surge Protection

Reference	OBVXJ-6	OBVXJ-12	OBVXJ-24	OBVXJ-48
Nominal voltage : Un	6Vdc	12Vdc	24Vdc	48Vdc
Maximum continuous operating voltage: Uc	8Vdc	15Vdc	30Vdc	65Vdc
Nominal discharge current for line C2 10kV(1,2/50μs) / 5kA(8/20μs): In (C2)	5kA
Protection level at In (8/20μs):	12V	25V	40V	75V
Maximum working current:	300mA
Series resistance:	15Ω
Response time:	< 10ns
Working temperature:	-40ºC+80ºC
SPD location:	Indoor
Type of connection:	Series (two ports)
Input / Output connector:	RS485 / RS485
Certificated tests according to: IEC 61643-21, EN 61643-21

Surge Protective Device Arrester Dimensions:

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment

- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

12VDC Surge Protector Date Line Surge Protector, Remote Testing Signal Surge Protection

Q1: If I'm interested in your Solar SPD when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 8hours.

Q2:Your Solar SPD seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!

A: Our DC SPD is special for Solar system all the parts in the SPD are high quality customized.Not all the DC SPD are Solar SPD!

Q3:Can I get a sample before the order because I really don't how is your DC SPD quality?

A:Of course!We also think sample order is the best way to build the trust.

Q4:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q5:How's the warranty period for your DC SPD?

A:We offer one year warranty for our customer.
