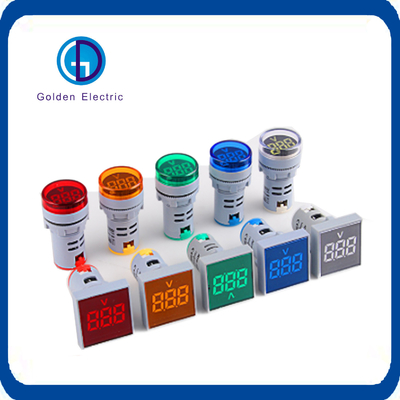

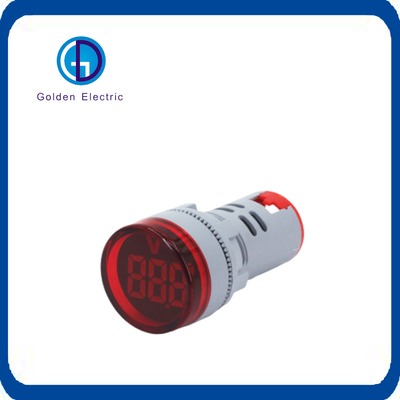

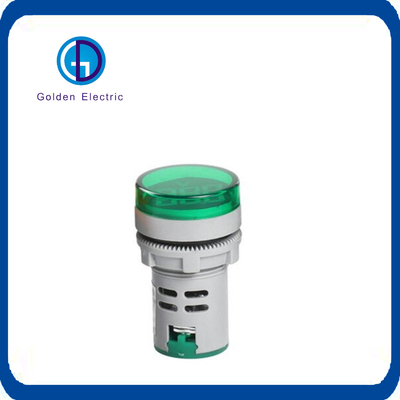

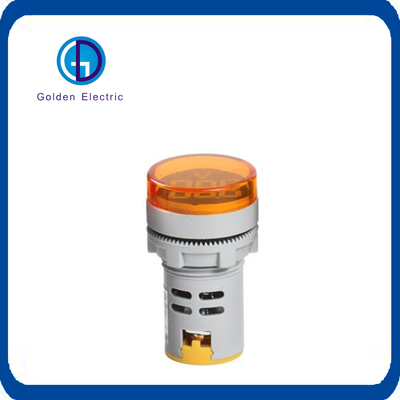

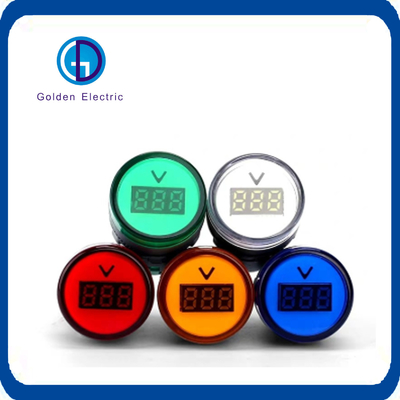

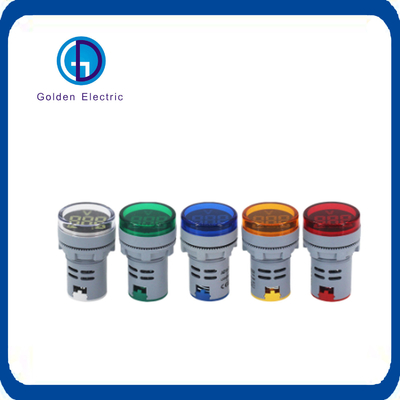

Electric AC Voltmeter Type 25 ordm Mini 22mm LED Digital Display Panel Meter Indicator

Digital Indicator Lamp

Voltmeter/Ammeter/Frequency Meter

3in1 Function with Current Transformer
1)Working Condition
1. ambient temperature:-25ºC-+55ºC,
2. relative humidity:≤98%,
3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g
4. pollution degree is 3, installation g roup is III
5. "TH" marked can work at damp-heat environment.
2)Technic data
1.Power frequency withstand voltage:2.5kv/1min(effective AC value),
2.insulation resistance:≥ 22MΩ,
3.Allowable voltage fluctuation: ± 20%,
4.Continuous operating life: ≥30000H.
5.Brigtnss: ≥100cd/m2,
6.CTI≥600,
7.Protection degree of the head IP65, IP67 is available on request,
8.Applying frequency:AC20-75Hz.

Application
It can be used as signal indication, warning signal, accident signal and other signals in the line of electric power, telecommunication, machine tool, ship, textile,printing and mining machinery.

Product Name	Digital AC Voltmeter
product specification	AD16-22DSV
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	12V-500V AC
Ambient temperature	-25ºC-+65ºC
Relative humidity	<=98%
Display method	LED bright digital display
tolerance scope	+-5V

Product Name	Digital DC Voltmeter
product specification	AD101-22VM
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	5V-60V DC
Ambient temperature	-25ºC-+65ºC
Relative humidity	<=98%
Display method	LED bright digital display
tolerance scope	+-5V

Product Name	Digital AC frequency meter
product specification	AD101-22HZ
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	AV24V-500V
Ambient temperature	-25ºC-+65ºC
Frequency Range	0-99Hz
Display method	LED bright digital display
product weight	18.5g

Noted:Can not used in the electric environment with  frequency conversion , high frequency, strong harmonic interference signal.
