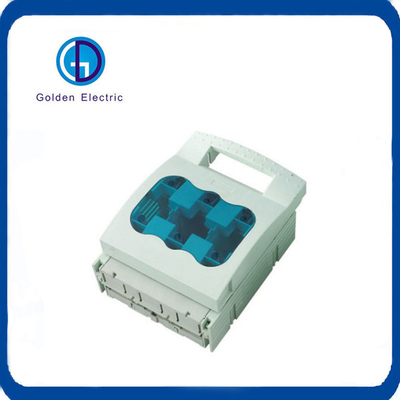

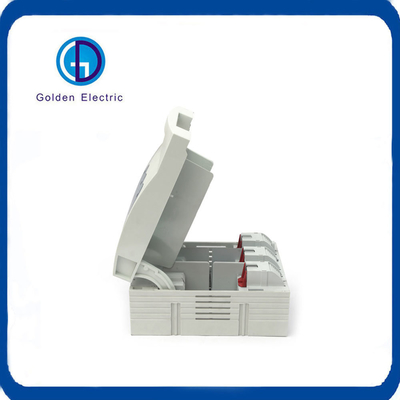

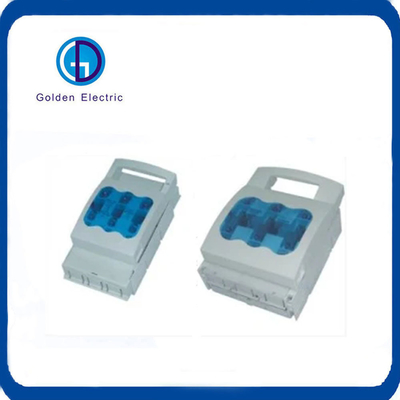

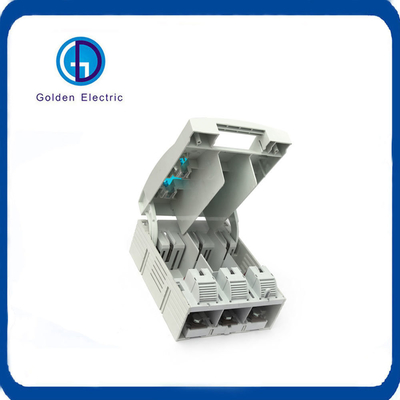

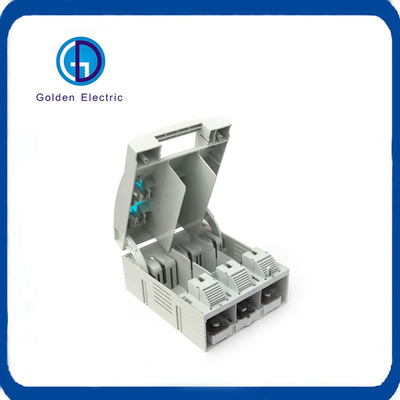

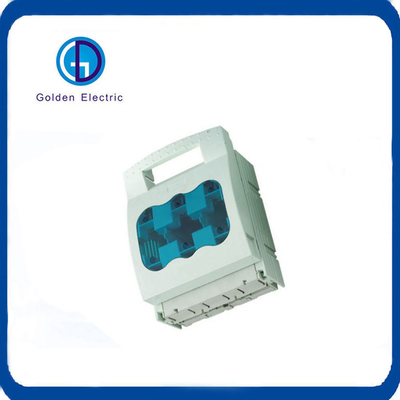

HR17 series fuse-swith disconnector is a new product developed by our company. Rated insulation voltage up to 800V. rated operational voltage up to 690V. rated operational current up to 630A, rated frequency 50Hz, in the distribution circuit and motor circuit which has high short-circuit current as the power switch, isolating switch, emergency switch as well as circuit protection, but normally it is not used to make and break a single motor directly.
It can be mounted on the busbar, can also be installed in the fixed plate, it provides the upper and lower input and output structure,with a knife-edge introduction and arc-control decive,and the switch cover has irregular closed detectiom holes,built-in signal switch,detection switch. it can be optional fuse monitor, can also be used as knife switch. The switch with beautiful shape, nivel and concision, it meets the IEC60947-3,GB14048.3 standards.
Features & Benefits
IP20
Self-extinguis-hable materials
Globally compliant
Application
Power distibution and Motor protection
Copper T2
The contact is made of T2 red copper material with excellent electrical performance.
Add Amount of Copper
Lengthen and widen the contact design, increase the capacity,can carry the normal working current to 800A.
| Conventional thermal current(A) | 160 | 250 | 400 | 630 |
| Rated insulation voltage V |
| Rated Current A | 400V | 160 | 250 | 400 | 250 |
| AC23 |
| 690V | 100 | 160 | 315 | 315 |
| AC23 |
| Operating force N | | ≤250 | ≤350 | ≤350 | ≤450 |
| Associated Fuse | Model | NT00,RT16-00 | NT1,RT16-1 | NT2,RT16-2 | NT3,RT16-3 |
Rated current of matched fuse in 400V
(Breaking capacity) | 20,25,32,35,40,50,63,
80,100,125,160(≥100kA) | 80,100,125,160,200,
224,250(≥100kA) | 125,160,200,224,250,
300,315,355,400(≥100kA) | 315,355,400,425,
500,630(≥100kA) |
Rated current of matched fuse in 690V
(Breaking capacity) | 20,25,32,35,40,50,63,
80,100,125,160(≥50kA) | 80,100,125,160,200,
224,250(≥50kA) | 125,160,200,224,250,
300,315,355,400(≥50kA) | 315,355,400,425,
500,630(≥50kA) |
| Product Model | Model,size and specification of application fuse link | Rated insulation Voltage(V) | Dimension(mm) |
| A | B | C | D |
| HR17-160 | NT00/00C NH00/00C RT16-00/000 | 690 | 160 | 200 | 83 | 205 |
| HR17-250 | NT1 NH1 RT16-1 | 690 | 185 | 247 | 110 | 295 |
| HR17-400 | NT2 NH2 RT16-2 | 690 | 210 | 290 | 125 | 340 |
| HR17-630 | NT3 NH3 RT16-3 | 690 | 256 | 300 | 145 | 360 |
