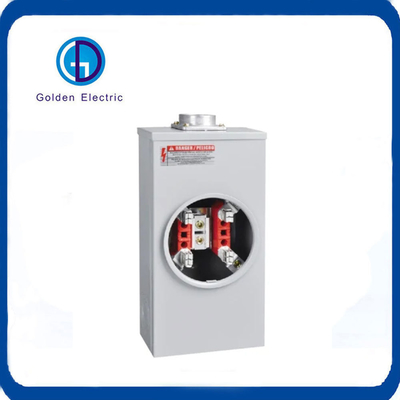

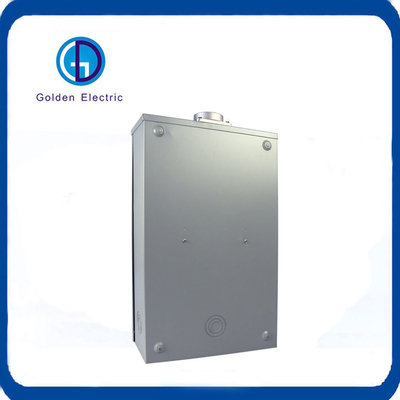

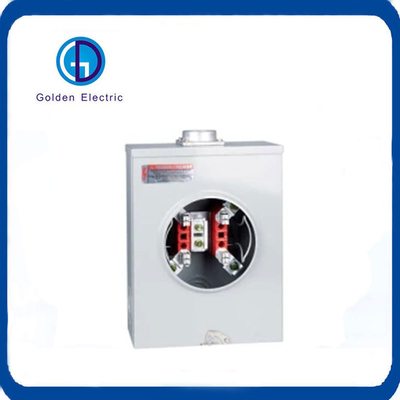

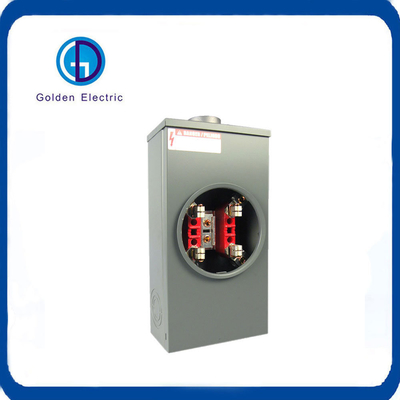

* standard meter sockets are manufactured from 1.2~1.5mm galvanized steel with a baked gray powder polyester paint finish to improve resistance
* the meter socket suitable for single phase, sevice voltage 600Vac Max.
* Ample gutter space for easy wiring
*Convenient knockouts in side back and bottom
*Lay in type terminals with pressure plates for easy connection

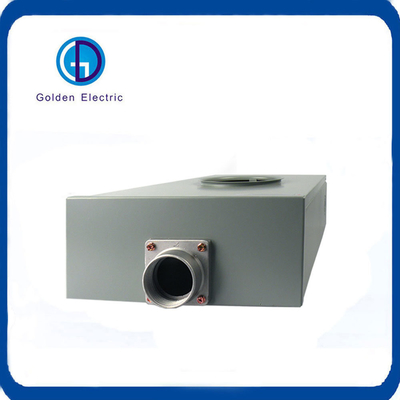

* meter sockets are designed to accept conduit hubs from 1" to 2-1/2" size
200Amps,600V AC.
Connector ine and load size #6-350 Cu-Al

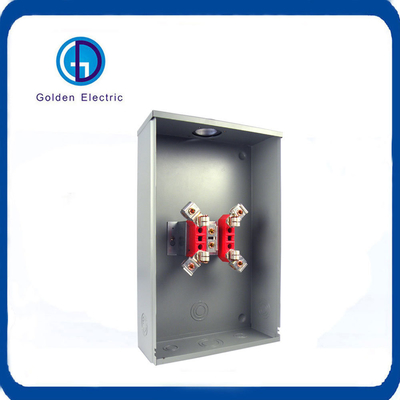

Heavy duty tinned copper jaw with reinforce clip
C/W center netural bar
NEMA 3R type construction 1.2mm thickness (#18 guage) or 1.5mm thickness (#16 guage) galvanized steel sheet, electrostatically applied epoxy baked gray powder finished.
Ample gutter space for easy wiring
Convenient knockouts in the side back and bottom
Lay in type terminal with pressure plates for easy connections
The fixed hub size 1/2'' to 2-1/2'' for option
| Product Model | Description | Outline Dimensions |
| H | W | D |
| GD-200-4J-R | 1Phase,200A,4 jaw,ring type | 396 | 203 | 108 |
| GD-200-5J-R | 1Phase,200A,5 jaw,ring type | 396 | 203 | 108 |
| GD-200-7J-R | 3Phase,200A,7 jaw,ring type | 396 | 203 | 108 |
| GD-200-4J-RL | 1Phase,200A,4jaw,ringless type | 396 | 203 | 108 |
| GD-200-5J-RL | 1Phase,200A,5jaw,ringless type | 396 | 203 | 108 |
| GD-200-7J-RL | 3Phase,200A,7jaw,ringless type | 396 | 203 | 108 |
| GD-200B-4J-RL | 1Phase,200A,4jaw,ringless type | 396 | 280 | 108 |
- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Solar product and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
1)Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the Meter Socket guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for Meter Socket.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
