High temperature resistantshell 6 performance protections
Excellent resin shell,smooth surface,more 6 major performance productions make your
excellent insulation and flame retardant products safer,easier and more reliable
performance,more assured and safer.

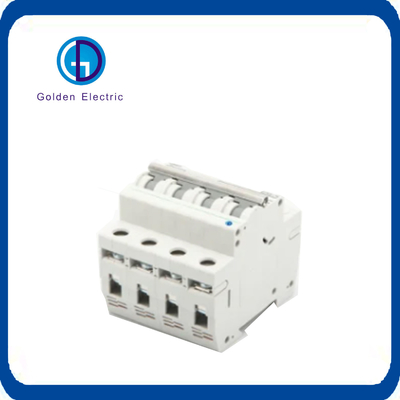

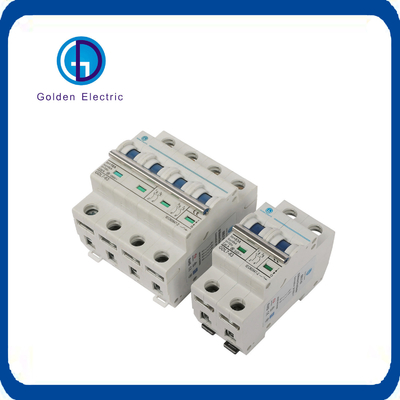

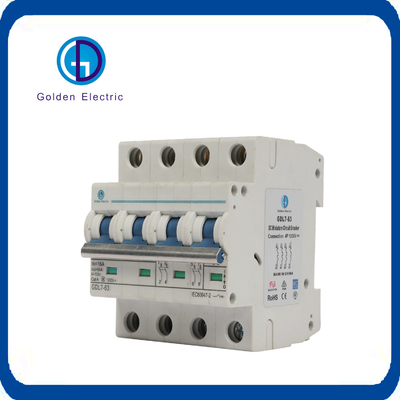

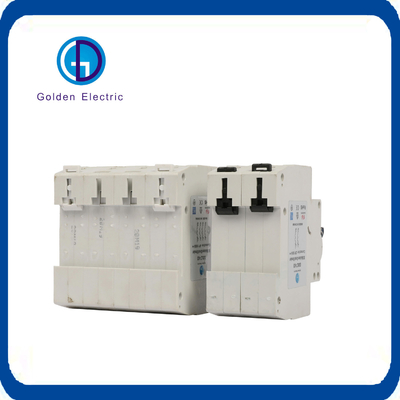

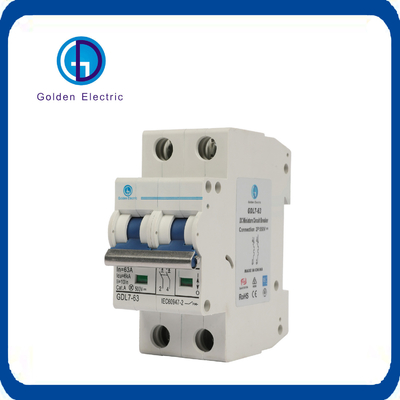

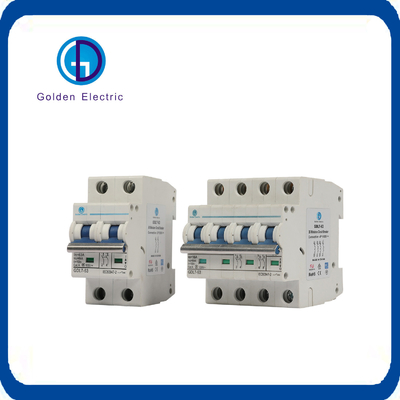

DC MCB Application:
Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
DC MCB Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
| Technical Data | IEC 898 |
| Standards | 1P/2P/3P / 4P |
| Poles | C |
| Magnetic tripping characteristics | 6 10 16 20 25 32,40,50,63A |
| Rated current(A) | 6kA |
| Rated short-circuit capacity(Icn): | DC250V DC550V DC750V DC800V DC1000V DC1200V |
| Rated voltage | 6kV |
| Rated withstand voltage (Uimp): | 1000 |
| Rated insulation voltage(Ui): | Yes |
| Contact position indication | 3 |
| Energy limiting class: | >2000 |
| Electrical Life: | >1500 |
| Mechanical Life: | Screw terminal |
| Connection terminal: | Pillar terminal with clamp |
| | 1~16mm |
| Connection capacity: | Symmetrical DIN rail 35mm |
| Installation: | Panel mounting |
| | OF: Auxiliary contact |
| Accessories: | FB: Auxiliary alarm |
| | QY: under/over volage protector |
| | FL: Shunt release |
Overload Characteristic | Test | Type | Current | Start State | Trip / Not-trip | Expected | Note |
| Time Limit | Result |
| a | c | 1.05 ln | Cold | t ≥1h | Not-trip | |
| b | c | 1.30 ln | Foollows test a | t<1h | Trip | The current will rise to expected value within 5S |
| c | c | 7 ln | Cold | t ≥0.1s | Not-trip | |
| d | c | 15ln | Cold | t<0.1s | Trip | |
Dimensions&Installation Packaging Details:
Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other packing can be supplied according customers request.
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery Detail:
Shipped in 7 days after payment
- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
Manufacture of solar
1.Best ensure 100% customer satisfaction.
2.Our products have one year guarantee.
3.Sample in design and easy to operate and maintain.
4.All electrical parts of products are made up for qualitified marterials.
5.No MOQ limited for the trial order.
6.We adopt good credit quality electrial appliances.
7.Best customer care and effcient after-sale services.
8.Don't hesitate to inquire us,we will reply you within 12 hours.
