Features

Specifications

Features: Overload , Short Circuit Protection

Model NO.: PG Series

Type: Circuit Breaker

Function: Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB

Leakage Motion Current: 300mA 500mA

Rated Voltage: 230V/400V

Working Frequency: 50-60Hz

Rated Current: 5-60A

Leakage Non-Operating Current: 150mA ,250mA

Transport Package: Standard Export Carton

Specification: 2P/4P

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 85362000

Supply Ability: 20000PCS/Month

Breaking Capacity: Low Voltage Circuit Breakers

Operation: Electric Type

Speed: High-Speed Circuit Breaker

Installation: Fixed

Structure: RCCB

Poles Number: 2,4

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

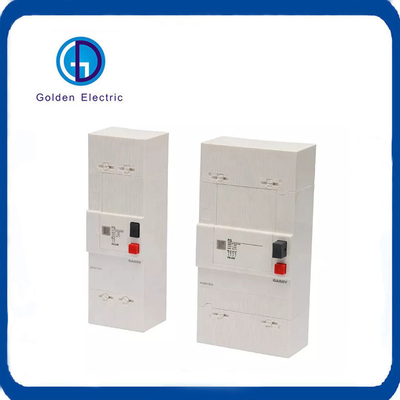

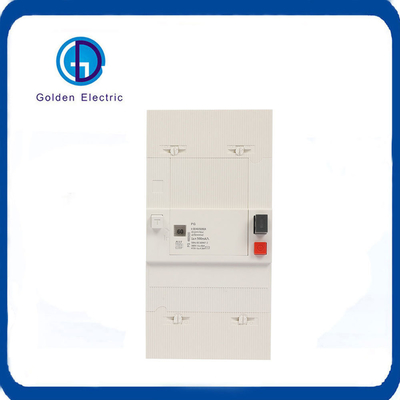

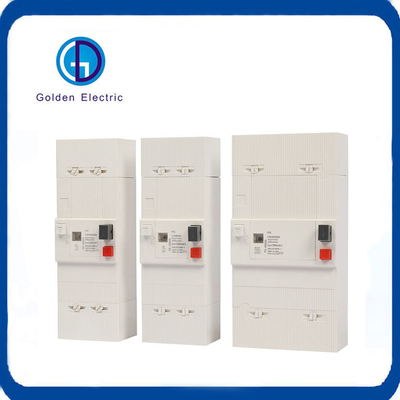

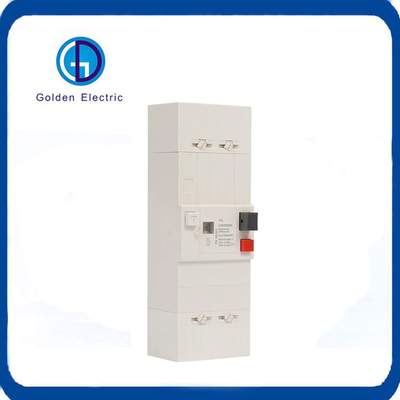

2p 4p Pg Series RCCB ELCB Earth Leakage Circuit Breaker with High Breaking Capacity

Product Description

Adjustable Resdiual Current Breaker PG series, is suitable for AC 50/60Hz, 230/400V circuit, prevents from overloading short- circuit etc. On the occasion of shock hazard or earth leakage, it will trip immediately. At the same time, the rated current of protection can be adjustable. The rated current is adjustable from 5A up to 60A. The user can select suitable current to better protection against overload and short circuit. The products comply with NFC61450.

Applications

DDC, DBR, PG series breaker is suitable for AC 50Hz or 60Hz, 250V/440V circuit with overload, short circuit and earth leakage protection.On the occasion of shock hazard or ear th leakage, the switch cuts off the fault cir cuit immediately. What is more, the rated current of overload protection is adjustable. The customer can adjust suitable current according to need. Thus its function is very well in overload and leakage protection.

Advantage:

Low-cost product, suitable for conventional service connections.
Multiple rating device
Several levels of earth leakage sensitivity.

Operating principle:

Service conections are the interface between theUtility and the ens-user customer.
They connect the customer's electrical installation to the power distribution network.

Type	PG Series
Poles	2P, 4P
Rated Voltage	230V/400V
Rated Current	5-15A (5A/10A/15A)
	10-30A(10A/15A/20A/25A/30A)
	30-60A(30A/45A/60A)
Leakage Motion Current	300mA,500mA
Leakage Non-Operating Current	150mA, 250mA
Standard	NFC61450

Operation Principle Figure:

Adjustable Residual Current Circuit Breaker 230V/400V 2p 4p Pg Series RCCB ELCB Earth Leakage Circuit Breaker Overall and Dimesions:

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse, busbar clamp etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Leakage Residua circuit breaker guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Leakage Residua circuit breaker.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
