Features

Specifications

Features: Overload , Short Circuit Protection

Function: Overcurrent Protection, OVP(Overvoltage Protection), RCCB

Rated Current: 16A 20A 25A 32A 40A 50A 63A 80A 100A

Rated Voltage: AC230/240 ,AC400/415

Working Frequency: 50-60Hz

Protection Level: IP20

Endurance: 4000

Transport Package: Standard Export Carton

Specification: 2P/4P

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 85362000

Supply Ability: 20000PCS/Month

Breaking Capacity: Low Voltage Circuit Breakers

Operation: Electric Type

Speed: 3000A

Installation: Fixed

Structure: ELCB

Type: Circuit Breaker

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

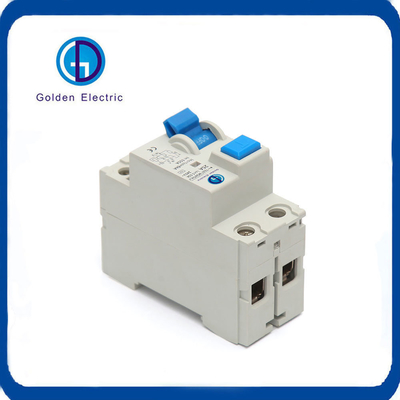

Circuit Breaker 2p 4p 10mA 30mA 100mA RCCB RCD AC240V 415V Differential Breaker

Product Description

The have a residual current operated electromechanical release which operates without any auxiliary source of supply to open a circuit automaticlly in the case of an earth leakage fault between phase and earth greater than or equal to a threshold of 10mA,30mA,100mA,300mA or 500mA.

1,Provides protection against earth fault/leakage current and function of isolation;
2,High breaking current withstand capacity;
3,Contact position indication;
4,Equipped with finger protected connection terminals;
5,Fire resistant plastic parts endures abnormal heating and strong impact;
6,Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity;
7,Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

RCCBs/ RCDs are designed to quickly enough to mitigate the harm caused by such shocks although they are not intended to provide protection against overload or conditions.

- Simple and Robust operating mechanism.
- Rotary handle with ON/Off indication .
- Dual termination for Bus Bar as well as cable connection .
- Test Button for regular inspection.

Number of Poles	2P,4P
Rated Current (A)	16,20,25,32,40,50,63,80,100
Rated Residual Operating Current (lΔn)(mA)	10,30,100,300,500
Rated Residual Non-operating Current (lΔn)(mA)	≤0.5lΔn
Rated Voltage	AC230/240
Rated Voltage	AC400/415
Residual Operating Current Scope	0.5lΔn ~ 1lΔn
Residual Current Off-time	≤0.3s
Short Circuit Capacity (lcu)	3000A
Endurance	4000
Protection Level	IP20
Standard	IEC/EN 61008

Electromechanic Residual Current Circuit Breaker 2p 4p 10mA 30mA 100mA RCCB RCD AC240V 415V Differential Breaker

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse, busbar clamp etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Leakage Residua circuit breaker guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Leakage Residua circuit breaker.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
