Features

Specifications

Character: Environmental Protection

Production Process: Injection Molding

Interface Type: SATA/ATA

Brand: Golden Electric /OEM

Pitch: 5.0mm

Product Name: Pluggable Terminal Blocks

Connection Method: Screw Connection

Description: Screw Terminal Blocks

Rated Voltage: 300V

Wire Range: 22-14AWG

Rated Current: 15A

Model Type: Plug-in Block Connector

Pins: Brass, Tin Plate

Transport Package: Standara Export Carton

Specification: 2P/3P/4P~24P

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8536901900

Supply Ability: 20000PCS/Month

Application: PCB, Cable, Computer, Communication, Battery

Environmental Protection: General

Connection Mode: In-Line Connector

Shape: Rectangle

Contact Termination Form: Screws Fixed

Type: High Temperature Electric Connector

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

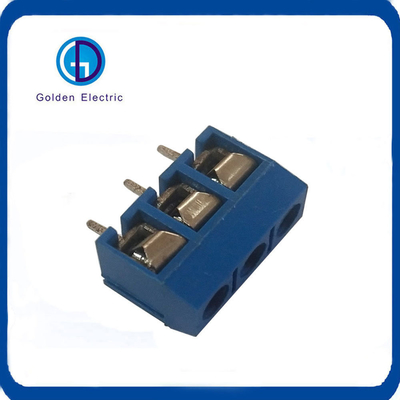

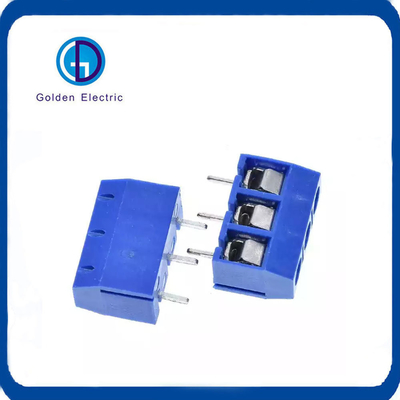

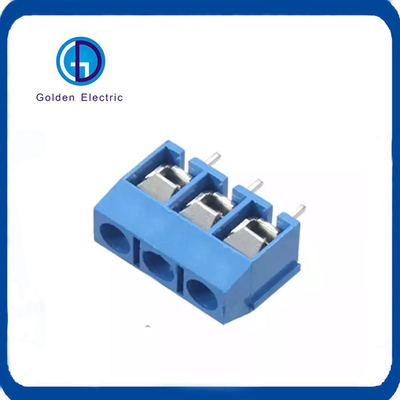

3 Pin 5mm Pitch PCB Screw Mount Type Terminal Block Connector with SATA/ATA Interface

Product Description

Terminal blocks are classified based on characteristics such structure,device type, and termination options. We can provide pluggable terminal block, PCB Screw terminal block, Barrier Terminal Block and so on.

PCB Screw terminal blocks work by inserting bare wires into the module where a clamp secures the wire in the housing. The housing is then soldered to a PCB in common footprints. PCB mount terminal blocks can be single, dual, or multi-level modules.

Terminal blocks come available in three common orientations: horizontal, vertical, and 45°. Horizontal and vertical are also known as 90° and 180°, respectively. The wire orientation can often be determined by physical restrictions in the overall design that make one option more feasible than the other.

Terminal block is a set of two or more similar screw-down connection points. You can connect wires at these points. A terminal strip combines many similar blocks in a single device. In a strip, the blocks are insulated from one another.

Terminal block's main functions are to connect and to insulate. The main block body is made of plastic, The conducting parts are made of copper.

Terminal block must first be mounted in a safe, stable location away from moisture.You then insert the bare wires into the block's metal connectors and screw them down until they're securely fastened.

Rated Voltage	300V
Rated Current	15A
Contact resistance	20mΩ
Insulation resistance	5000MΩ/1000V
Withstanding Voltage	AC1500V/1Min
Wire range	22~14A WG/2.5mm²
Pitch	5.0mm
Poles	3P
Screws	M2.5 steel Zinc plated
Contact	phosphor bronze Ni plated or stainless steel
Pin header	Brass,Tin plated
Housing	PBT,UL94V-0
Temp.Range	30ºC~ + 120ºC
MAX Soldering	+250ºC for 5 Sec.
Torque	0.5Nm(3.6lb.in)
Strip length	4. 5- 5mm

3 Pin 5mm Pitch PCB Screw Mount Type Terminal Block Connector

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Terminal Block guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Terminal Block.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
