60*33*43mm Industrial Electronic Sensor Thermostat for Switch Temperature Controller

1
MOQ
60*33*43mm Industrial Electronic Sensor Thermostat for Switch Temperature Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Environment Humidity: 5%-85%Rh
Installation Method: Rail Installation
Operating Voltage: AC/DC 24V-250V
Output Signal: 10mA
Dimensions: 60*33*43mm
Control Type: Temperature
Weight: 0.08kg
Hole Size: 35mm
Transport Package: Standard Export Carton
Specification: GD-TC601/GD-TC602
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 90321000
Supply Ability: 50000PCS /Week
Customized: Non-Customized
Certification: RoHS, CB, CCC, ISO9001, CE
Brand: Golden/OEM
Switching Capacity: 10A 250VAC
Material: ABS
Temperature Range: ′-45...+80
Samples: US$ 5/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

GDTC-602&GDTC-601
Switch Temperature Controller Industrial Electronic Sensor Thermostat
GDTC-601: Thermostat (normally closed);
contact breaker for regulating heaters. The contact opens
when temperature is rising.

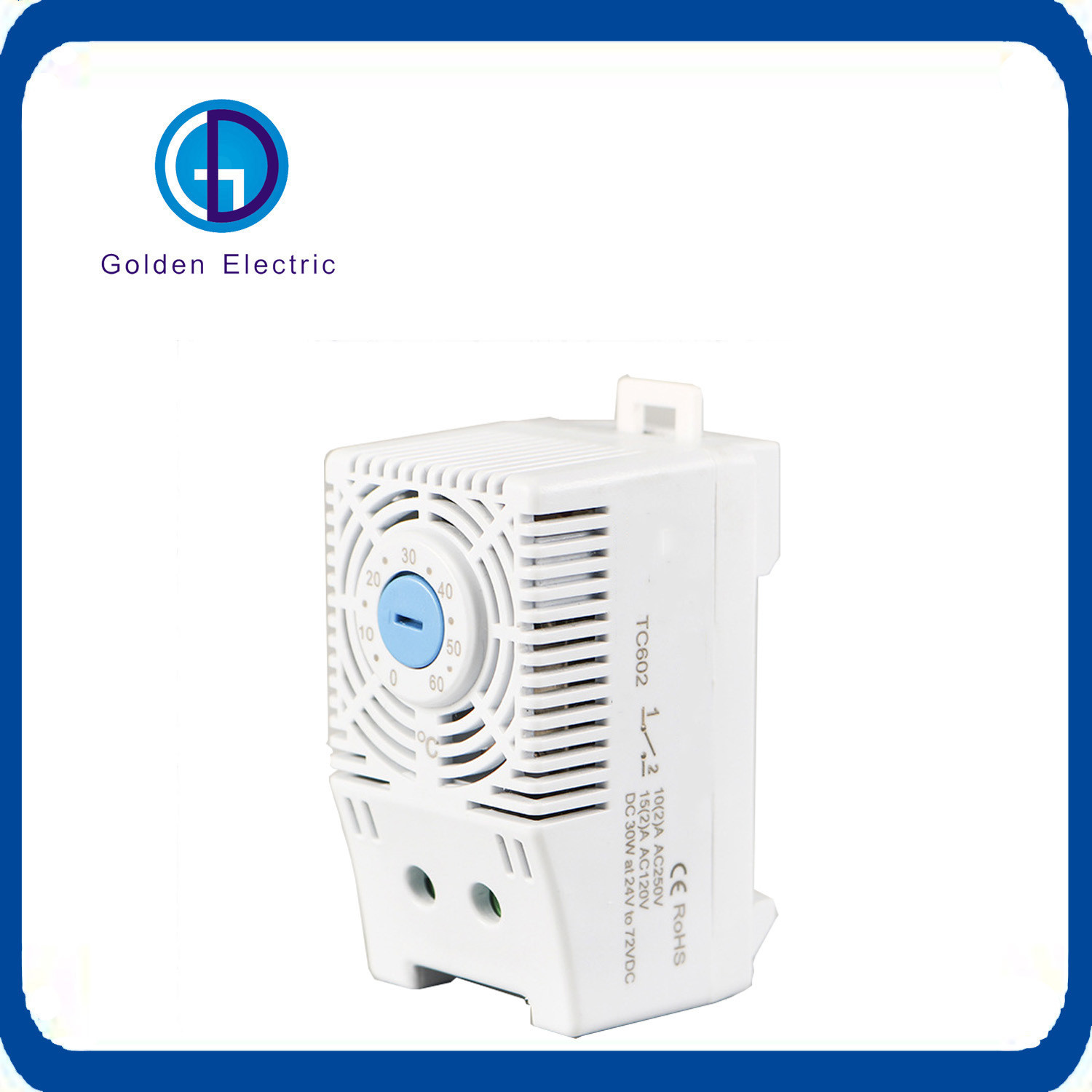

GDTC-602: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching
signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.


Application
Switch Temperature Controller Industrial Electronic Sensor Thermostat
Hot Product
Switch Temperature Controller Industrial Electronic Sensor Thermostat

Product Parameters

GDTC-602&GDTC-601
Switch temperature difference
+/-5°C
Sensor element
thermostatic bimetal
Contact type
snap-action contact
Service life
>100,000 cycles
Max. switching capacity
250VAC, 10 (2) A / 120VAC, 15 (2) A
DC (30/110/220)V
      (1/0.3/0.15)A
Max. inrush current
AC 16A for 10 sec.
Connection
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)
stranded wire¹ 1.5mm² (AWG 16)

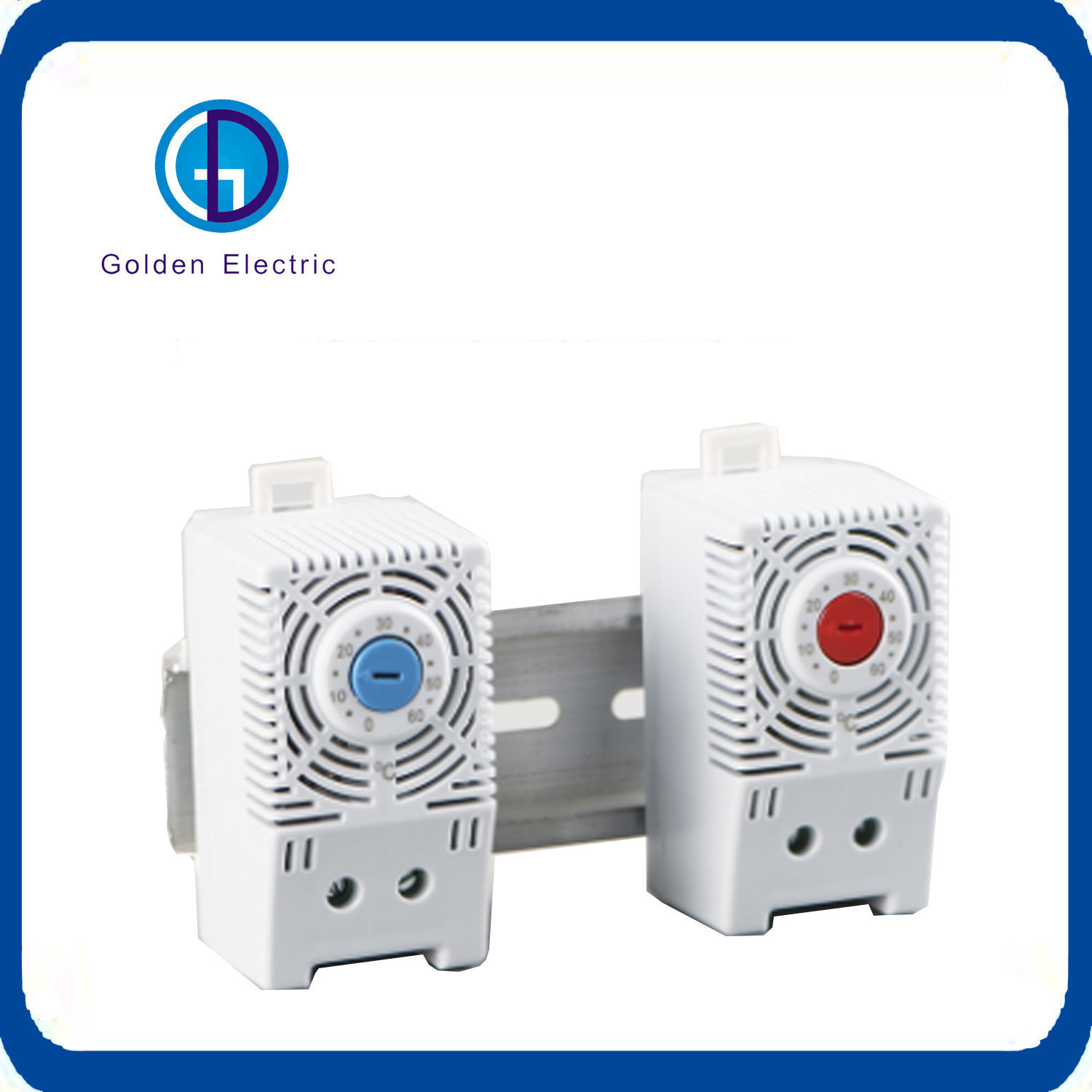

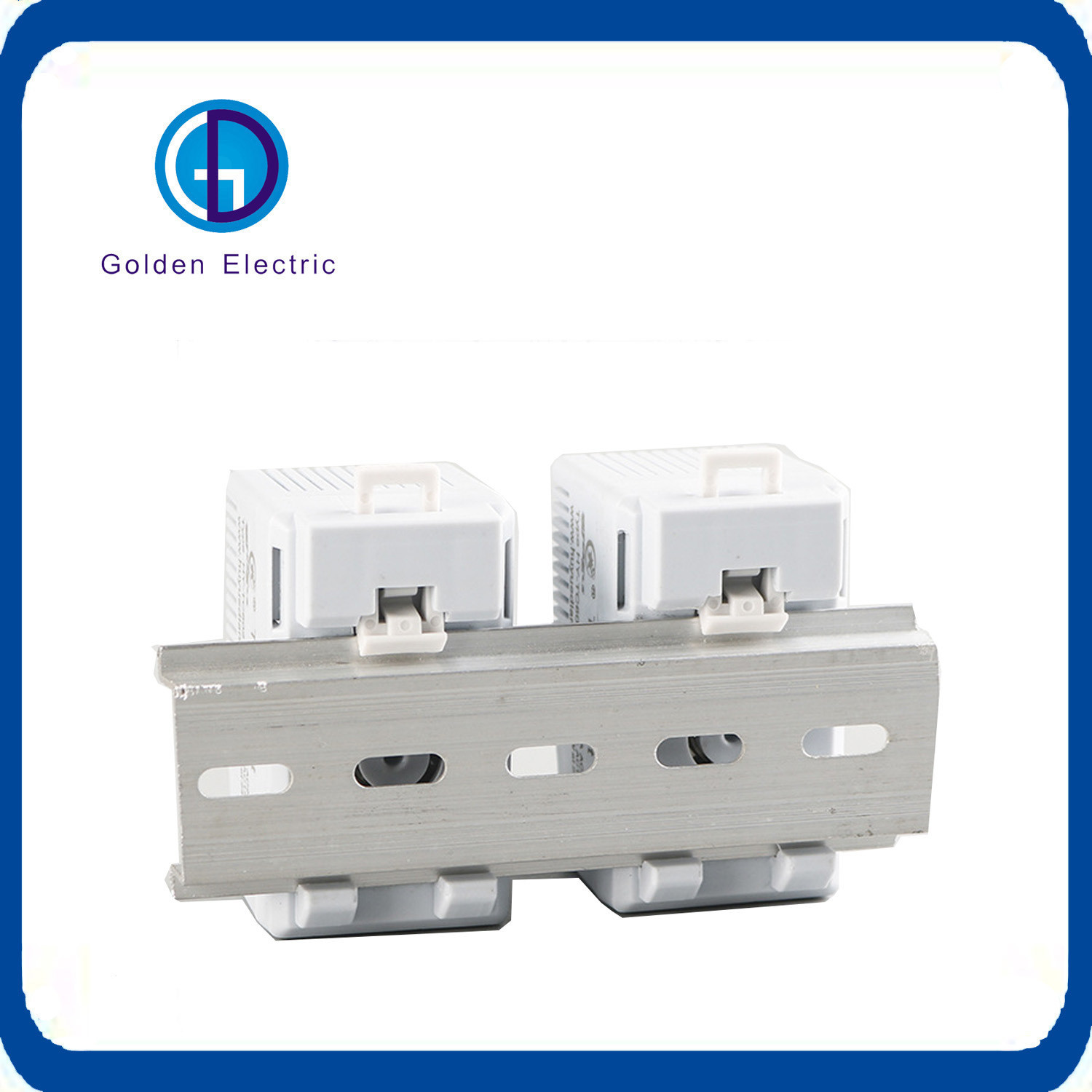

Mounting
clip for 35mm DIN rail
Casing
plastic according to UL94 V-0, light grey
Dimensions
84*43.5*17.5mm
Weight
0.02(Kg)
Fitting positon
variable
Operating/Storage humidity
-45 to +80°C (-49 to +176°F)
Operating/Storage humidity
max. 90% RH
Product Size
Switch Temperature Controller Industrial Electronic Sensor Thermostat
Switch Temperature Controller Industrial Electronic Sensor Thermostat


Product wiring diagram
Switch Temperature Controller Industrial Electronic Sensor Thermostat
Order code:
Setting range Ordering code Normally closed (NC) GDTC-601 Ordering code Normally open (NO) GDTC-602
0 to +60°C 6010 6020
-20 to +40°C 6011 6021
-10 to +50°C 6012 6022
+20 to +80°C 6013 6023
+14 to+122°F  6014 6024
+32 to +140°F 6015 6025
-15 to+45°C                       6016                      6026

Packaging & Shipping

Packaging Details:

Standard Export Package

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment
Switch Temperature Controller Industrial Electronic Sensor Thermostat
