Features

Specifications

Production Process: Injection Molding

Interface Type: AC/DC

Brand: Golden Electric /OEM

Wiring Diameter: 22-12AWG/ 0.5-4mm2

Screw Size: M3

Rated Voltage: 600V/800V

Rated Current: 3A/32A

Product Name: DIN Rail Screw Terminal Blocks

Material: PA66 Nylon

Usage: Conduct Electricity, Transmission Of Electrical Si

Connection Method: Screw Connection

Installation: DIN Rail Mounted

Stripping Length: 12mm

Transport Package: Standara Export Carton

Specification: 6.5/42/1.5mm

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8536909000

Supply Ability: 20000PCS/Month

Application: PCB, Communication, Integrated IC

Environmental Protection: General

Connection Mode: In-Line Connector

Shape: Rectangular

Contact Termination Form: Pressure Welding

Character: Environmental Protection

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

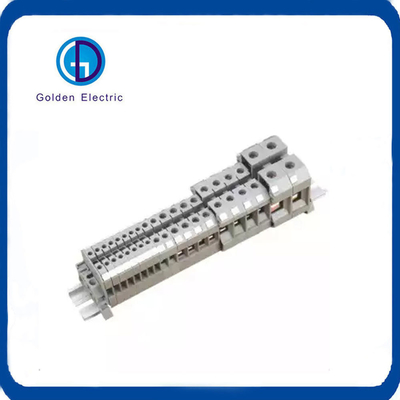

Screw Connection 6.5/42/1.5mm Terminal Connector for Sak 4en JXB 4/35 Series Cable

Product Description

SAK Series Terminals Block

The terminal block is a kind of accessory product used to realize electrical connection, which is industrially divided into the category of connectors. The terminal is used to facilitate the connection of the wire. It is actually a piece of metal sealed in insulating plastic. There are holes at both ends to insert the wire. There are screws for fastening or loosening. For example, two wires, sometimes Need to connect, sometimes need to disconnect, then you can use the terminal to connect them, and can be disconnected at any time, without having to weld them or entangled together, it is very convenient and fast.

Characteristics:
1. Reasonable installation design, strong versatility, SAK type can be installed.
2.Small size, full specification, JXB series high current terminals use reinforced accessories to install steel wire crimping
frame and breakout board technology to ensure reliable contact.3.Bckets in beige and grey,the connecting-ground pedestal uses yellow and green color with more modern sense.

Model	SAK-4EN
Standard	UL	IEC
Rated Volatge	600V	800V
Rated Current	3A	32A
Wiring Diameter	22-12AWG	0.5-4mm²
Thickness/Width/End plate thickness	6.5/42/1.5mm
Height(NS35: 7.5/ NS35: 15/ NS32)	47.5/55/47.5mm
Rated impulse voltage, pollution degree	8kV/3
Stripping length	12mm
Screw size/torque	M3/0.5-1.0Nm
Insulation material/flame retardant grade	PA/V-0
Conductive Material	Copper
Warranty	2years
All Models of this series	SAK 2.5EN, SAK4EN, SAK6EN, SAK10EN, SAK16EN, SAK25EN, SAK35EN, SAK70EN, SAK-RD, SAK WTL6/1, SAK DK4Q

All Models of SAK series	Current	Voltage	Wire Range (mm2)	Dimension(mm)
SAK 2.5EN/JXB2.5/35	24A	800V	2.5	40.1641.1
SAK 4EN/JXB4/35	32A	800V	4	40.26.546
SAK 6EN/JXB6/35	41A	800V	6	40.27.946
SAK 10EN/JXB10/35	57A	800V	10	40.210.146
SAK 16EN/JXB16/35	76A	800V	16	50.212.251.7
SAK 25EN/JXB25/35	110A	800V	25	50.214.350.7
SAK 35EN/JXB35/35	125A	800V	35	58.2518.161.88
SAK 70EN/JXB70/35	192A	800V	70	74.92277.2
SAK-RD/JXB-RD	6.3A	800V	2.5	58.38.142
SAK WTL6/1/JXB WTL6/1	41A	800V	6	66.68.151.8
SAK DK4Q/JXB DK4Q	32A	800V	2.5	55.36.455.6

Sak 4en (JXB 4/35) Series Screw Cable 22-12AWG Terminal Connector Combined Terminal Blocks

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Terminal Block guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Terminal Block.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
