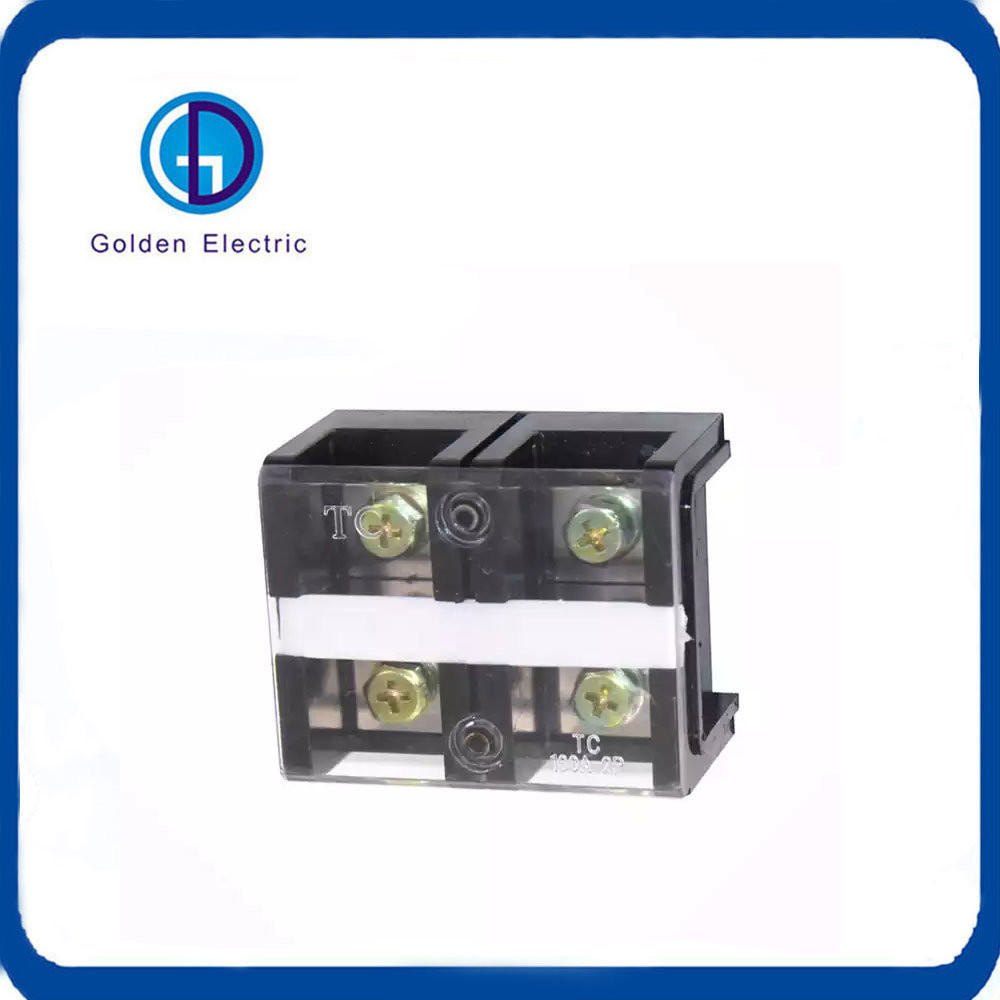

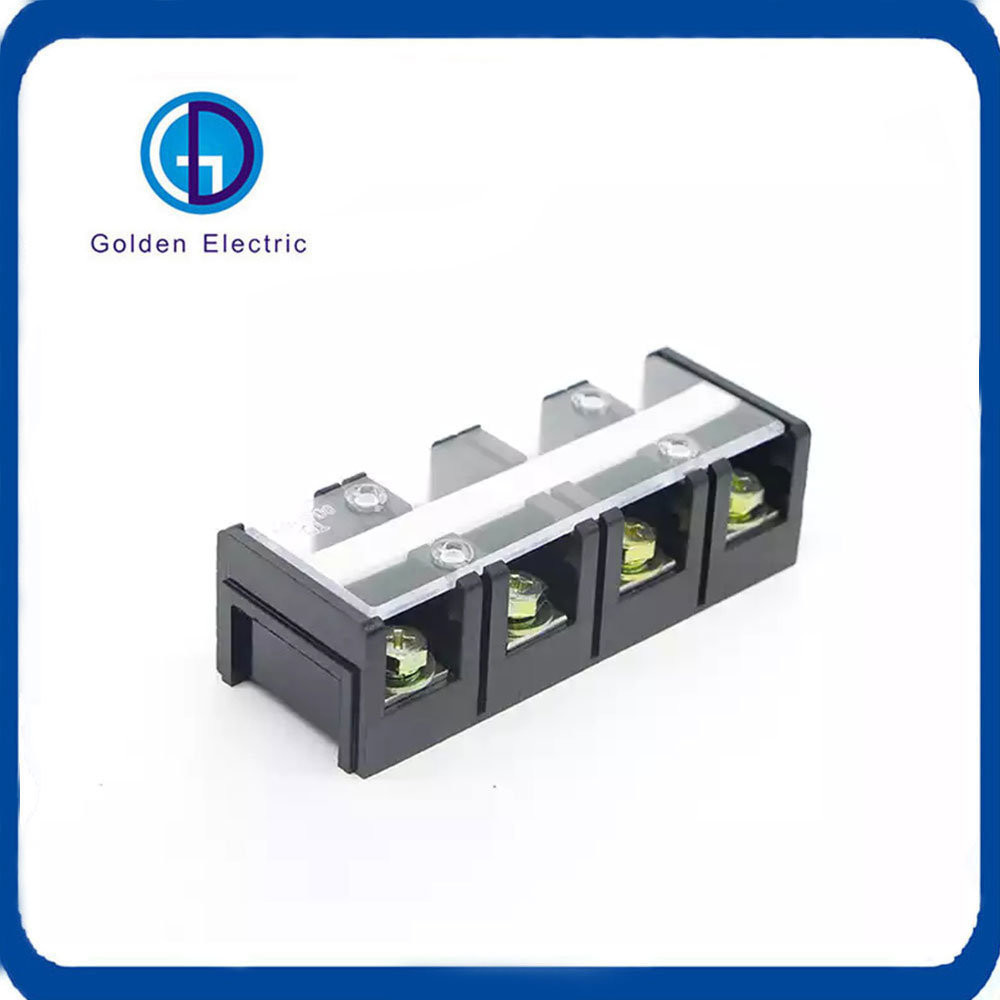

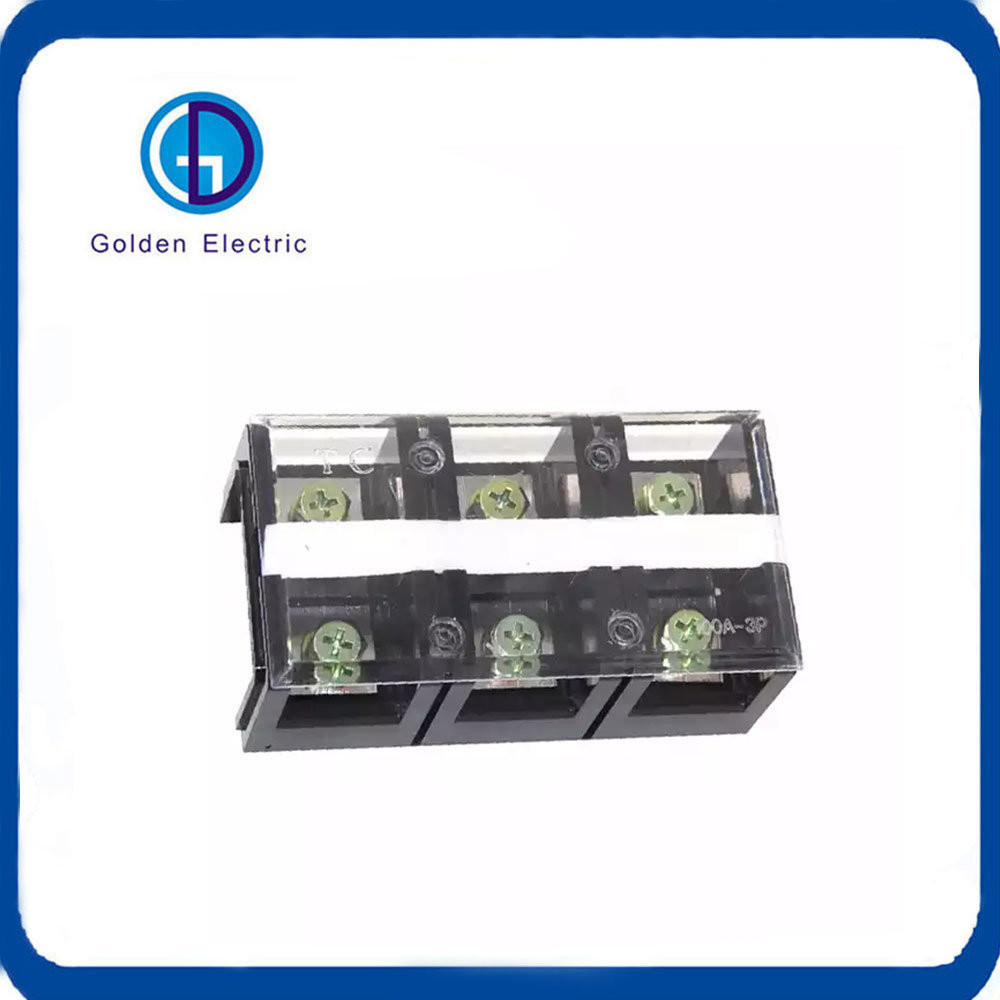

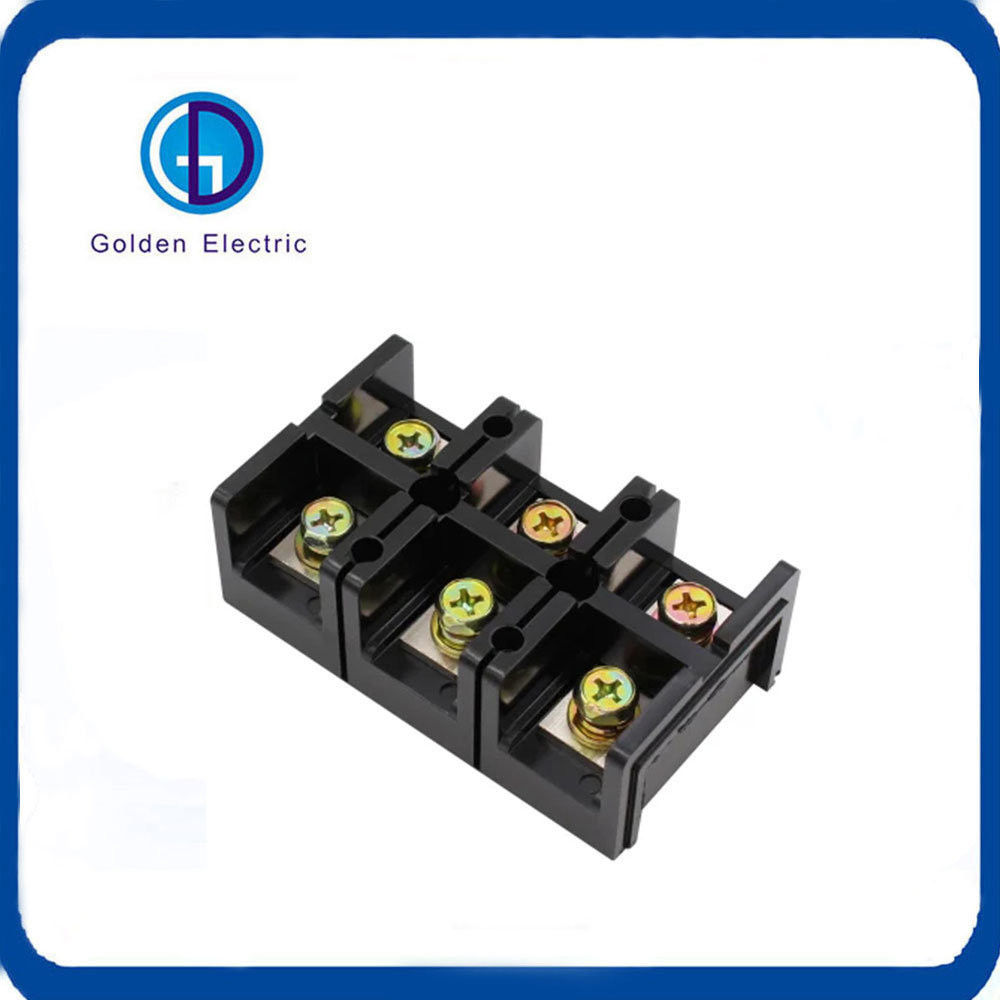

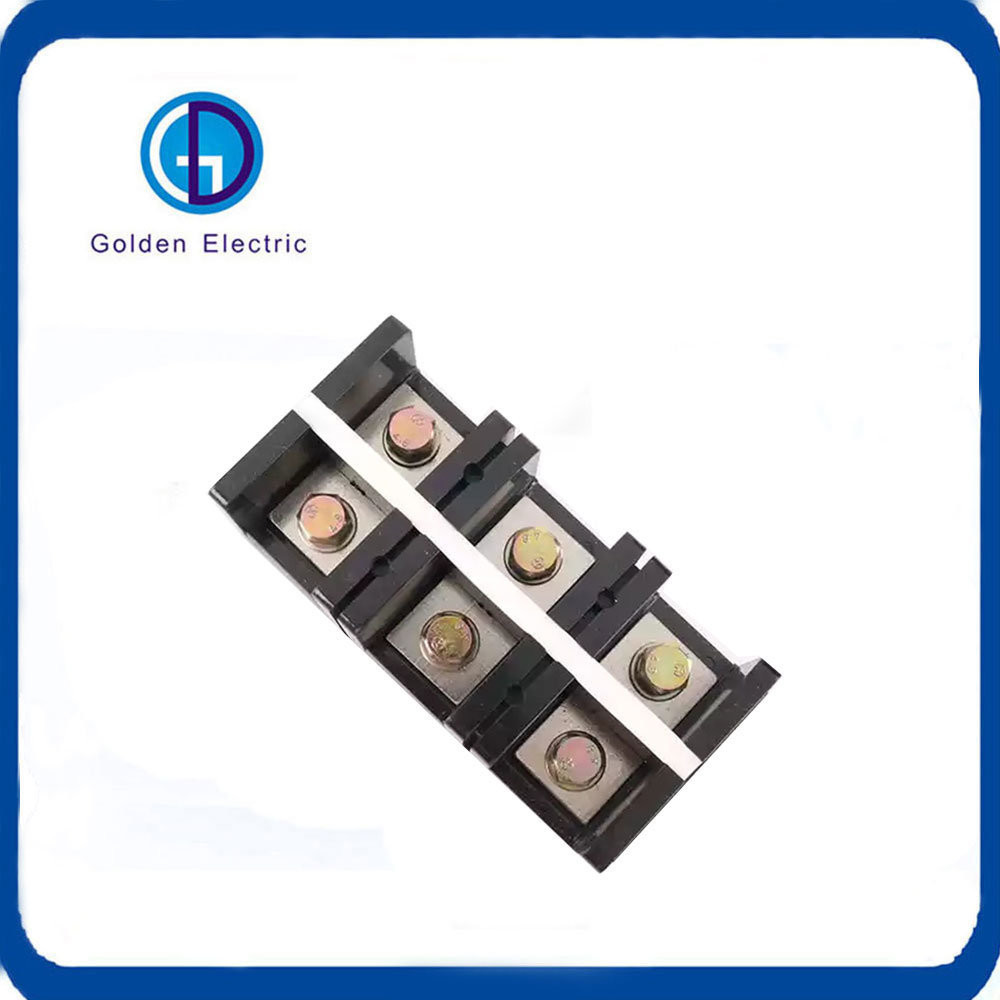

Environmental Protection Tc Series Barrier PCB Terminal Block 600V with Barrier Cover

1
MOQ
Environmental Protection Tc Series Barrier PCB Terminal Block 600V with Barrier Cover
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: TC Series
Production Process: Injection Molding
Brand: Golden Electric /OEM
Product Name: Barrier Terminal Blocks
Rated Voltage: 600V
Wire Range: 22-14AWG
Rated Current: 60,100,150,200,300,400,600A
Conductor Material: Copper
Base Material: Bakelite
Transparent Cover Material: As Resin
Transport Package: Standara Export Carton
Specification: 2P/3P/4P
Trademark: Golden Or Netural, Or Customer Brand
Origin: China
HS Code: 8536909000
Supply Ability: 20000PCS/Month
Application: Cable, Power
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Type: Filter Electric Connector
Character: Environmental Protection
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description



1.The outer casing is made of thermosetting plastics.
2.Copper conductor, good electrical conductivty, nikel-plated anti-corrosion.
3.Dust-proof and transparent plastic protective cover for durability.

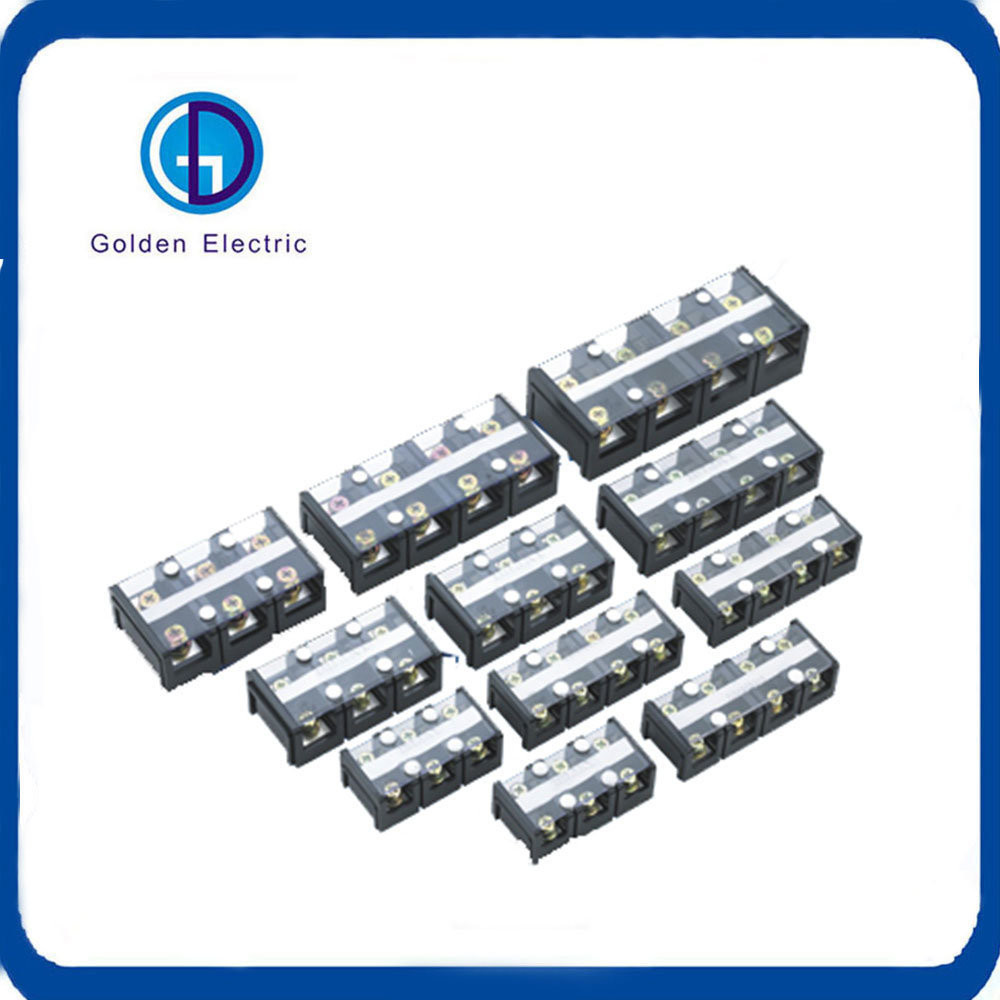

TC Series Connectors Terminals Blocks

1.Adopting thermosetting plastics,the saftey factor of high current is more reliable, structure parts adopt plate screw clamping technology, rated AC voltage id 600V, rated curent of conducting strips is as following:
60A,100A,150A,200A,300A,400A,600A, the range of wire section is from 10mm to 300mm.

2.It can be divided into 3P 4P flat screw installation according to arrangement, it will be more reliable by using together without terminations, it can be used for connecting high current of kinds of electric devices.







Product Parameters

Mode.No Wire Section Rated Current/Voltage Insulation resistance Base Material Transparent cover Conductor Material Flame level Screw type/ torque L/W/H(mm)
TC-603 6-14mm² 60A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M6  2.8-4 85.5/43/31.5
TC-604 6-14mm² 60A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M6  2.8-4 114.5/43/31.5
TC-1003 10-22mm² 100A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M6  6-8 102.5/55/36
TC-1004 10-22mm² 100A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M6  6-8 137.5/55/36.5
TC-1503 10-50mm² 150A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M8  6-12 115/66/39.5
TC-1504 10-50mm² 150A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M8  6-12 153.5/66/39.5
TC-2003 25-70mm² 200A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M8  6-12 132.5/72/44
TC-2004 25-70mm² 200A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M8  6-12 176/72/44
TC-3003 35-150mm² 300A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M10  15-20 165/90/51.5
TC-3004 35-150mm² 300A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M10  15-20 220/90/51.5
TC-4003 35-185mm² 400A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M10  15-20 165/90/51.5
TC-4004 35-185mm² 400A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M10  15-20 220/90/51.5
TC-6003 50-300mm² 600A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M12   25-35 206/100/70
TC-6004 50-300mm² 600A/600V >100MΩ Bakelite AS resin Brass UL94 V0-V2 M12  25-35 275/100/70
