Features

Specifications

Character: Environmental Protection

Production Process: Injection Molding

Brand: Golden Electric /OEM

Product Name: Feed Through Terminal Block

Rated Voltage: 660V

Wire Range: 2.5-10mm2

Rated Current: 24A

Contact Material: Copper

Product Model: Fixed Terminal Strip Blocks

Transport Package: Standard Export Carton

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8536909000

Supply Ability: 20000PCS/Month

Application: Cable

Environmental Protection: General

Connection Mode: In-Line Connector

Shape: Rectangle

Contact Termination Form: Welding Connection

Type: Terminal Block Connector

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

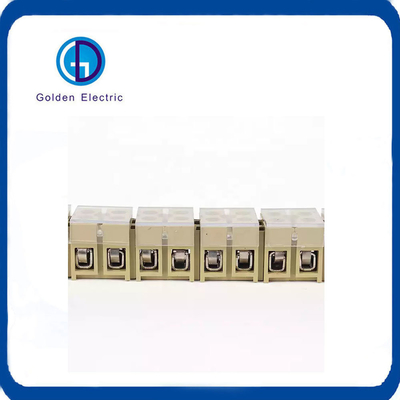

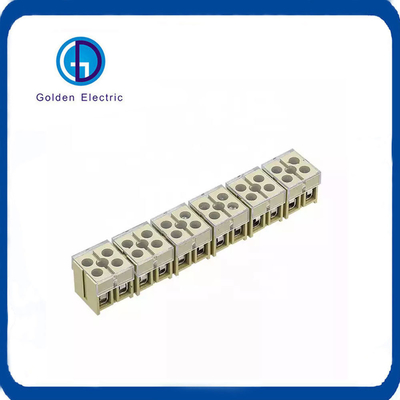

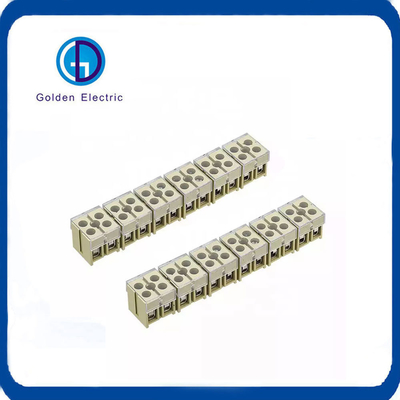

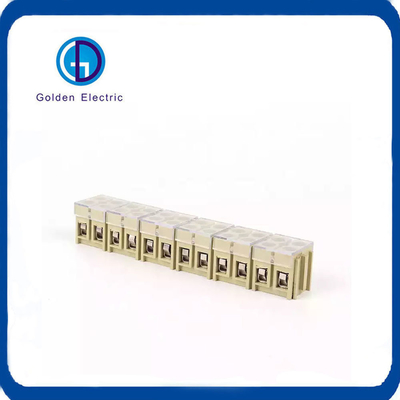

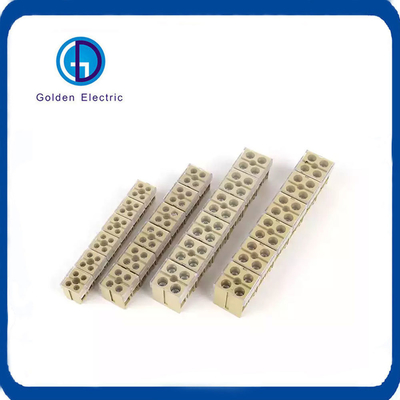

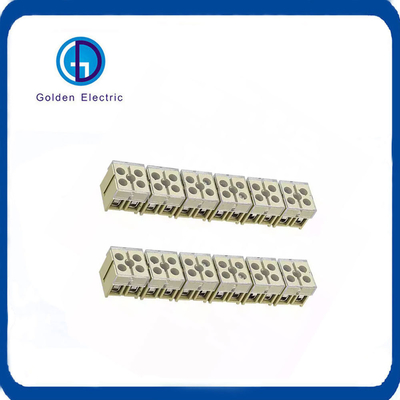

Double Row Jf6 Series Jf6-2.5 Jf6-6 Jf6-10 2.5mm2 6mm2 10mm2 Cable Connector

Product Description

JF6 Series Terminals Block

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section.

Characteristics:

1. Terminal: With universal mounting feet, can be installed on tracks NS32 or NS35.
2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
3. Made from engineering flame retardants nylon PA66 with brass screw metal.
4. It can connect two conductors with ease, even large conductor cross sections are not a problem.
5. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
6. Two ends on the top with white marking system to realize uniformed sign.
7. Accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
8. 15 years lifetime.
9. OEM acceptable.

Type	Fixed Terminal Blocks
Model Number	JF6-2.5/12
Cross-Section	0.5-2.5mm²
Rated Voltage	660V
Rated Current	24A
Pole	12P
Conductor material	Copper
All Models in this Series	JF6-2.5/12; JF6-6/12; JF6-10/12

Model	Rated Current	Poles	Dimension	Wiring Range
JF6/2.5	24A	2	20.5/17.9/17.9	2.5mm²
JF6/6	41A	2	26.5/26.1/26.1	6mm²
JF6/10	57A	2	28.9/26.1/26.1	10mm²
JF6/2.5	24A	3	28.8/17.9/17.9	2.5mm²
JF6/6	41A	3	38.3/26.1/26.1	6mm²
JF6/10	57A	3	38.3/26.1/26.1	10mm²

Double Row Jf6 Series Jf6-2.5 Jf6-6 Jf6-10 2.5mm2 6mm2 10mm2 Wire Terminal Connector Fixed Terminal Blocks

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Terminal Block guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Terminal Block.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
