10A 20A 30A 40A 60A 100A 150A Tk Series DIN Rail Type Terminal Block Screw Crimping Terminal

1
MOQ
10A 20A 30A 40A 60A 100A 150A Tk Series DIN Rail Type Terminal Block Screw Crimping Terminal
Features Gallery Product Description Request A Quote
Features
Specifications
Character: Environmental Protection
Production Process: Injection Molding
Brand: Golden Electric /OEM
Product Name: DIN Rail Mount Terminal Blocks
Rated Voltage: 600V
Wire Range: 0.5-35mm2
Rated Current: 10A,20A,30A,40A,60A,100A,150A
Conductor Material: Copper
Transport Package: Standara Export Carton
Trademark: Golden Or Netural, Or Customer Brand
Origin: China
HS Code: 8536909000
Supply Ability: 20000PCS/Month
Application: Cable
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed
Type: DIN Rail Type Terminal Blocks
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

TK series terminals block

In the electric connection, using the terminal as the transition connection is a common connection method, in various connection terminal structure, using the plate connection method, a long-standing practice test, safe and reliable connection way. The correct choice of wiring mode mainly depends on the actual use needs and the use of the requirements of the environment conditions, plate crimp wiring direct, convenient, solid and reliable. TK terminal rated voltage 600V, rated current divided into 10A, 20A, 30A, 40A, 60A,100A,150A total of seven specifications, can connect conductor section 0.75-35mm2, wiring is convenient, stuck in the guide rail, with round wire or fork-shaped cold-pressed terminal wiring, easy installation, easy to replace.
Advantage:
1. Reasonable installation design, strong versatility, TK type can be installed.
2.The shell adopts flame-retardant material,which reduces the hidden danger of safety and is safer for long-term use.
3.Copper sheet is selected as conductive material,with good conductivity and low resistivity.
4.Combined assembly design, according to the actual increase or decrease the number of terminals.






Product Parameters

Type
Current
Voltage
Wiring Range(mm2)
Wide(mm)
Thick(mm)
High(mm)
TK-10A
10A
600V
0.5-1.0
38
8.5
33.5
TK-20A
20A
600V
1.0-2.0
38
10.1
33.5
TK-30A
30A
600V
2.0-3.0
38
12
36.5
TK-40A 40A 600V 3.0-4.0 38 13.5 42.5
TK-60A
60A
600V
5.0-10.0
48
15.5
42.5
TK-100A
100A
600V
10.0-20.0
53
19.5
42
TK-150A
150A
600V
15.0-35.0
53
14
42.5









Product Details

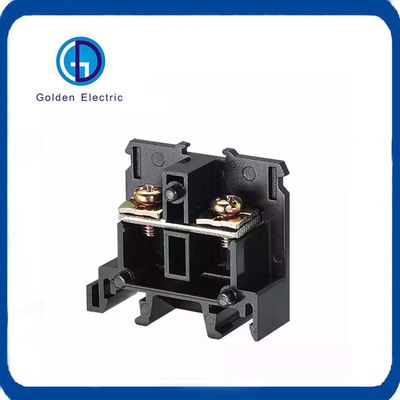

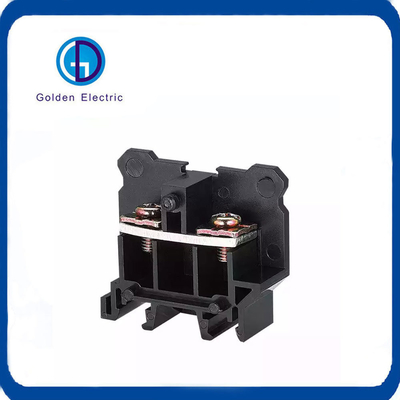

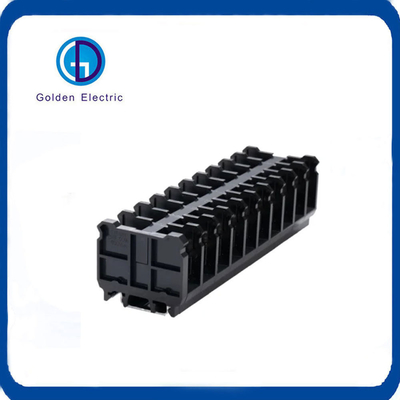

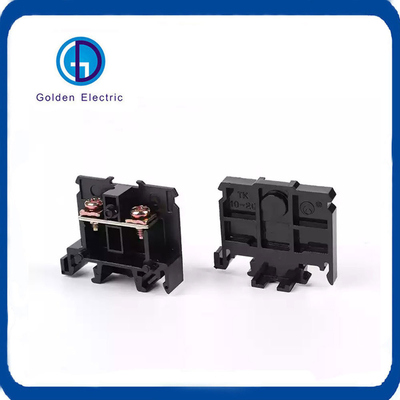

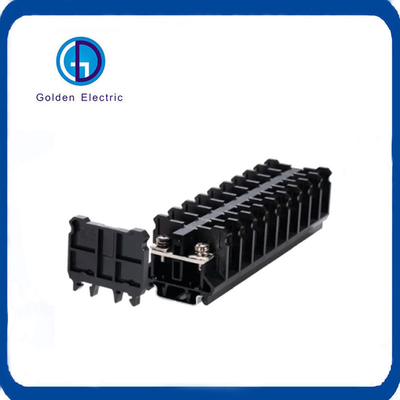

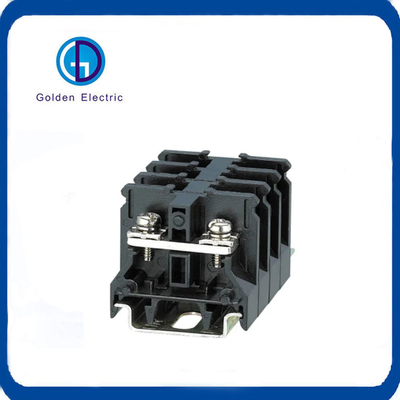

10A 20A 30A 40A 60A 100A 150A Tk Series DIN Rail Type Terminal Block Screw Crimping Terminal

10A 20A 30A 40A 60A 100A 150A Tk Series DIN Rail Type Terminal Block Screw Crimping Terminal






Recommand Product


10A 20A 30A 40A 60A 100A 150A Tk Series DIN Rail Type Terminal Block Screw Crimping Terminal







Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.


- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.








FAQ



1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Barrier Terminal Block guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Barrier Terminal Block.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !

If you need information about this product. Please Click here to contact me and we will provide you with more information about the products.
