Features

Specifications

Character: Environmental Protection

Production Process: Injection Molding

Brand: Golden Electric /OEM

Product Name: DIN Rail Mount Terminal Blocks

Rated Voltage: 600V

Wire Range: 16-24AWG/10-25mm2

Rated Current: 10A,20A,30A,40A,60A,100A,200A

Conductor Material: Copper

Screw/Plating: Steel/Zinc Plated

Stripping Length: 8-9mm

Screwmaterial/Torque: M3.5/7-10

Transport Package: Standara Export Carton

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8536909000

Supply Ability: 20000PCS/Month

Application: Cable

Environmental Protection: General

Connection Mode: Push-Pull Connection

Shape: Rectangle

Contact Termination Form: Screws Fixed

Type: DIN Rail Type Terminal Blocks

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

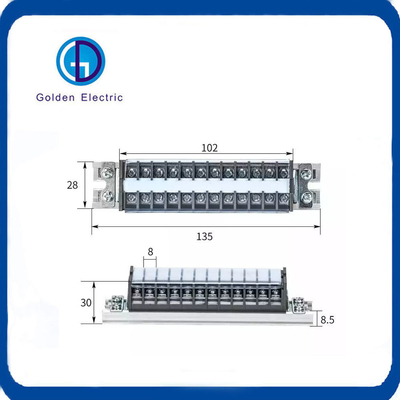

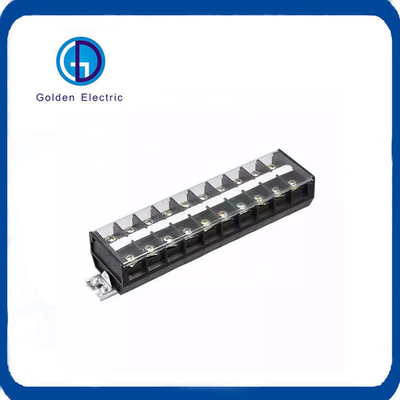

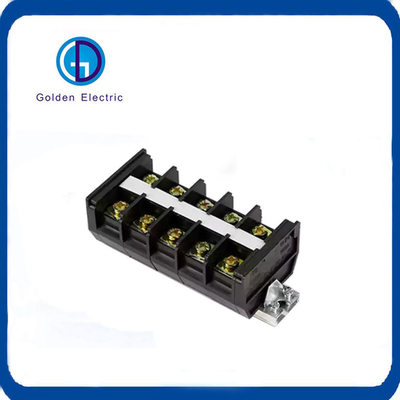

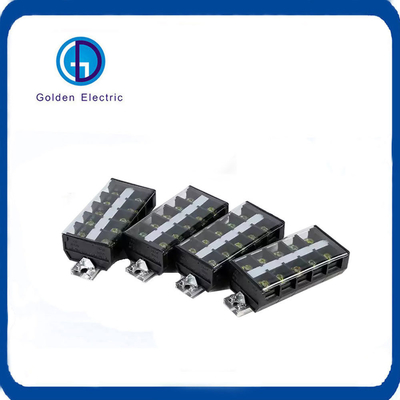

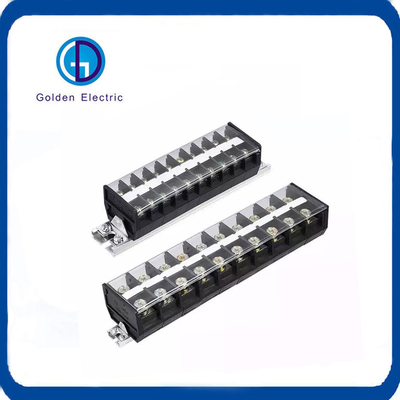

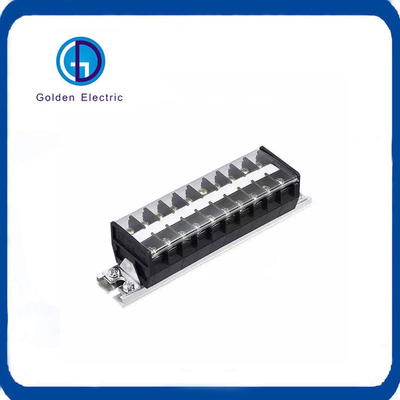

15A 20A 30A 10p 600V Combined Terminal Block Connector Board for Cable Stripping Length 8-9mm

Product Description

TD series terminals block

The TD series wiring terminal is formed by plugging and connecting two parts.One parts compresses the wire and then plugs it into the other part,which is welded to the PCB board.The mechanical principle of the bottom and the anti vibration design ensure the long-term airtight connection of the product and service reliability of the finished product.Both ends of the socker can be equipped with matching ears,which can protect the connector to a great extent.

1. TD series terminal blocks are made of thermosetting plastics, and the safety factor of large current is more reliable.
The structural parts are made of plate screw crimping technology.
2. The rated AC voltage is 600V.
3. The rated current of connecting conductive sheets is 15A,20A,30A,60A,100A,150A,200A.
4. The cross section of the connecting wire is 6-200mm2, which is the current largest intercepting flow terminal.
5. According to the arrangement, it is divided into10P and other can customized.
6. Flat screw mounting.

Product Features:
1. The outer casing is made of thermosetting plastics.
2. Copper conductor, good electrical conductivity, nickel-plated /tin-plated corrosion.
3. Dust-proof and transparent plastic protective cover for durability.

Advantages:
1.High-quality conductive material for products.
2.Its surface is nickel plated that is very resistant to oxidation and corrosion.3.Flame-retardant shell, with the characteristics of dustproof and impact resistance.
4.Rugged construction protects wire connectors for a long time.
5.Plastic parts is an environmentally friendly material that is easily degraded.

Model	Wire Section	Rated Current	Voltage	Poles
TD-1510	0.75-1.5mm²	15A	660V	10(costomzation)
TD-2010	1-2.5mm²	20A	660V	10(costomzation)
TD-3010	2.5-6mm²	30A	660V	10(costomzation)
TD-6010	4-10mm²	60A	660V	10(costomzation)
TD-10010	10-25mm²	100A	660V	10(costomzation)
TD-15010	25-35mm²	150A	660V	10(costomzation)
TD-20010	25-35mm²	200A	660V	10(costomzation)

DIN Rail-Type Td Series Terminal Block 15A 20A 30A 10p 600V Combined Terminal Block Connector Board

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1)Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the Barrier Terminal Block guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for Barrier Terminal Block.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !

If you need information about this product. Please Click here to contact me and we will provide you with more information about the products.
