DIN Rail Mount Terminal Blocks 60A 100A 200A Td Series Combination Screw Wire Connector

Brand Name:	Golden Electric /OEM
MOQ:	1
Payment Terms:	LC, T/T, PayPal, Western Union
Supply Ability:	5000/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document:

Product Brochure PDF

Character:

Environmental Protection

Production Process:

Injection Molding

Brand:

Golden Electric /OEM

Product Name:

DIN Rail Mount Terminal Blocks

Rated Voltage:

600V

Wire Range:

16-24AWG/10-25mm2

Rated Current:

10A,20A,30A,60A,100A,200A

Conductor Material:

Copper

Screw/Plating:

Steel/Zinc Plated

Stripping Length:

8-9mm

Screwmaterial/Torque:

M3.5/7-10

Transport Package:

Standara Export Carton

Trademark:

Golden Or Netural, Or Customer Brand

Origin:

China

HS Code:

8536909000

Supply Ability:

20000PCS/Month

Application:

Cable

Environmental Protection:

General

Connection Mode:

Push-Pull Connection

Shape:

Rectangle

Contact Termination Form:

Screws Fixed

Type:

DIN Rail Type Terminal Blocks

Customization:

Available | Customized Request

Packaging Details:

Carton/Pallet

Supply Ability:

5000/Month

Product Description

TD series terminals block

The TD series wiring terminal is formed by plugging and connecting two parts.One parts compresses the wire and then plugs it into the other part,which is welded to the PCB board.The mechanical principle of the bottom and the anti vibration design ensure the long-term airtight connection of the product and service reliability of the finished product.Both ends of the socker can be equipped with matching ears,which can protect the connector to a great extent.

1. TD series terminal blocks are made of thermosetting plastics, and the safety factor of large current is more reliable.
The structural parts are made of plate screw crimping technology.
2. The rated AC voltage is 600V.
3. The rated current of connecting conductive sheets is 15A,20A,30A,60A,100A,150A,200A.
4. The cross section of the connecting wire is 6-200mm2, which is the current largest intercepting flow terminal.
5. According to the arrangement, it is divided into10P and other can customized.
6. Flat screw mounting.

Product Features:
1. The outer casing is made of thermosetting plastics.
2. Copper conductor, good electrical conductivity, nickel-plated /tin-plated corrosion.
3. Dust-proof and transparent plastic protective cover for durability.

Advantages:
1.High-quality conductive material for products.
2.Its surface is nickel plated that is very resistant to oxidation and corrosion.3.Flame-retardant shell, with the characteristics of dustproof and impact resistance.
4.Rugged construction protects wire connectors for a long time.
5.Plastic parts is an environmentally friendly material that is easily degraded.

Model	Wire Section	Rated Current	Voltage	Poles
TD-1510	0.75-1.5mm²	15A	660V	10(costomzation)
TD-2010	1-2.5mm²	20A	660V	10(costomzation)
TD-3010	2.5-6mm²	30A	660V	10(costomzation)
TD-6010	4-10mm²	60A	660V	10(costomzation)
TD-10010	10-25mm²	100A	660V	10(costomzation)
TD-15010	25-35mm²	150A	660V	10(costomzation)
TD-20010	25-35mm²	200A	660V	10(costomzation)

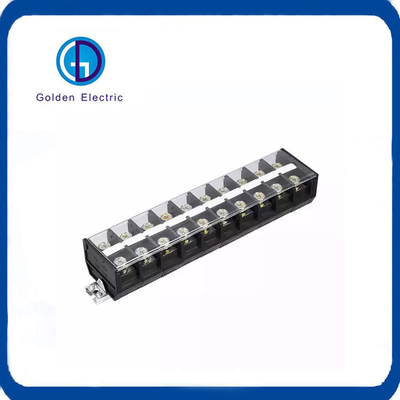

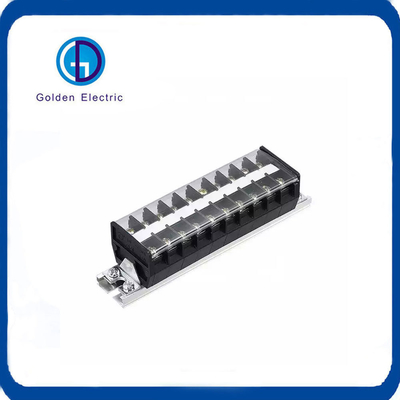

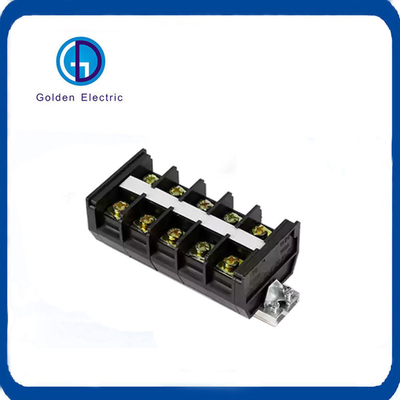

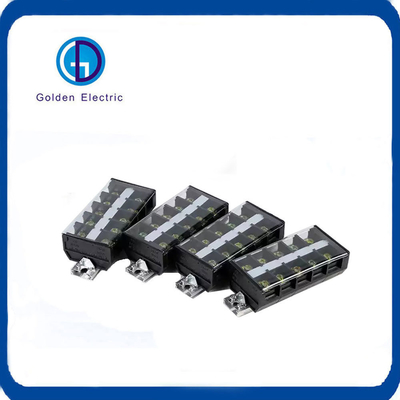

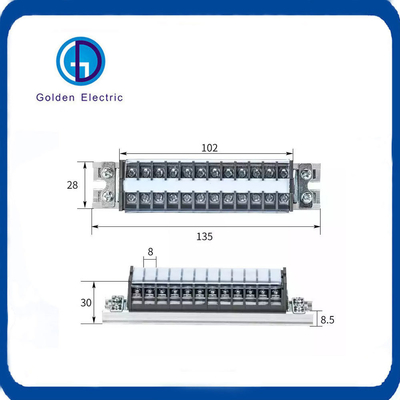

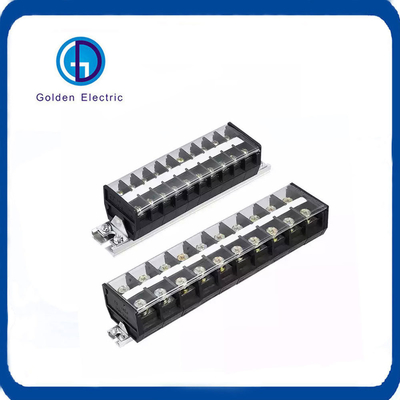

DIN Rail Mount Terminal Blocks 60A 100A 200A Td Series Combination Screw Wire Connector 1

DIN Rail Mount Terminal Blocks 60A 100A 200A Td Series Combination Screw Wire Connector 4

DIN Rail Mount Terminal Blocks 60A 100A 200A Td Series Combination Screw Wire Connector 5
