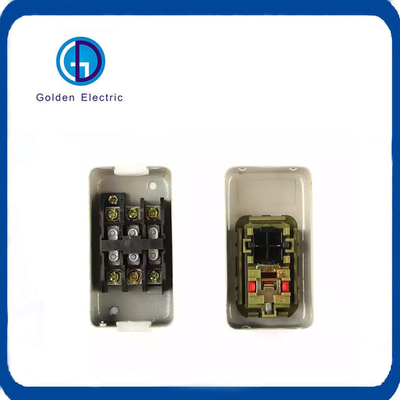

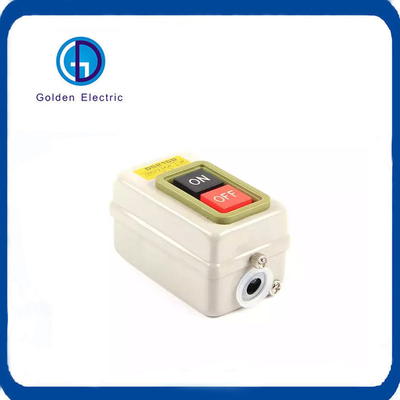

BS211B remote control box switch push button cam switch
Used in the control system of AC 50HZ or 60HZ,voltage below 380V or voltage DC 220V .
It is suitable for open-air with rain or dust conditions.
Up to standard of GB 14048.5
Model and Its meaning
"A" means with main power switch
"B" means with start and stop switch
"no word" means without main power switch
"H" means with emergency stop switch
Normal working condition and installation condition
1.ambient air temperature:-5 degree to +40 degree,the average under +35 degree.
2.altitude: less than 2000m
3.atmospheric condition: when the hightest temperature is 40 degrees,The air relative humidity less than 50%,Higher relative humidifier are permitted at lower temperatures, e. g. 90 % at 20 °C
4.Environmental pollution grade; 3 grade
5.Installation category: class II
6.No significant shake ,the shock vibration or Rain and snow
7.Working in without explosive tendency medium, that must be corrosion metal and damaging insulating air , and in conductive dirt place.
main parameter
rated operational voltage Ui:380V
Conventional thermal current Ith:10A
insulation resistance more than 100MΩ
contact resistance less than 50mΩ
mechanical life :100 0000 times
protection grade reaches IP65
electrical durability:AC 500000 times DC 250000 times
withstand voltage:2500V AC
Contacts capacity

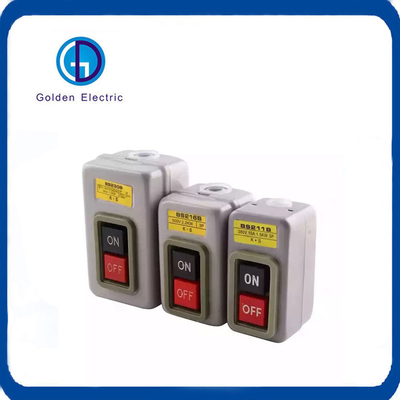

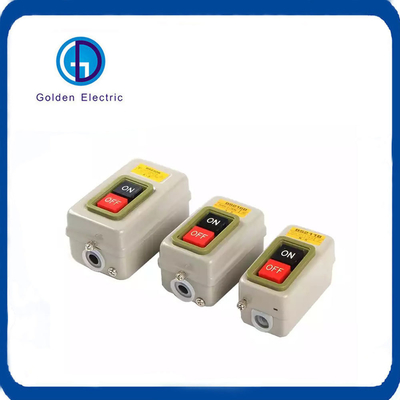

| Type | No.Phase | Rated Voltage | HP | Resistanct Loab(A) |
| BS-211 | 2.3 | 500v | 220V 0.75(1) | 7.5(10) |

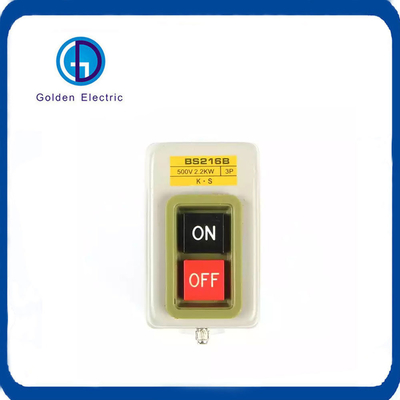

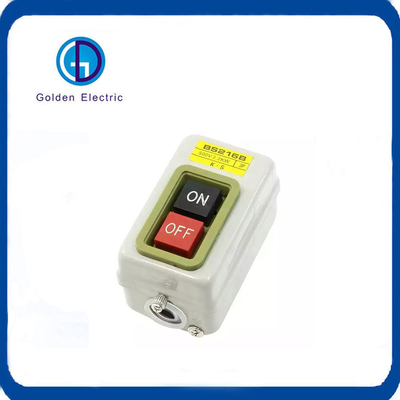

| BS-216 | 2.3 | 500v | 220V 1.5(3) | 15(20) |
| BS-230 | 2.3 | 500v | 220V 2.2(3) | 30(35) |
