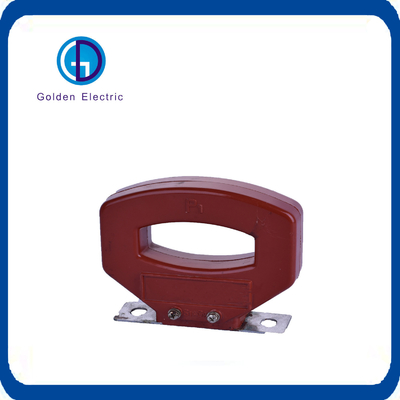

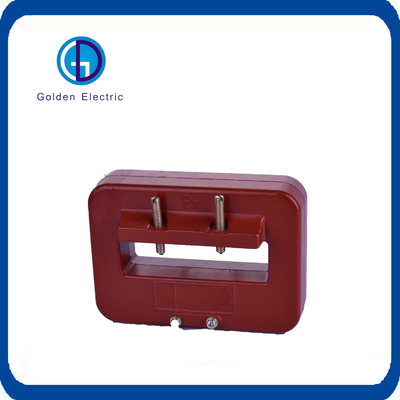

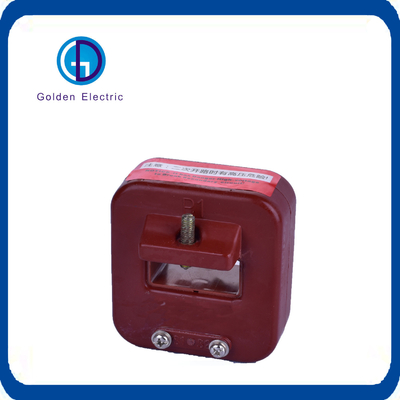

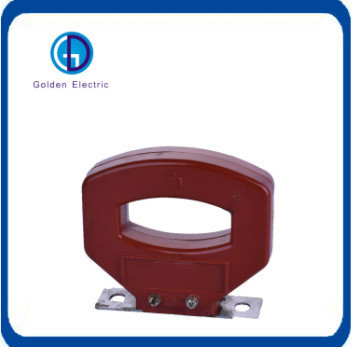

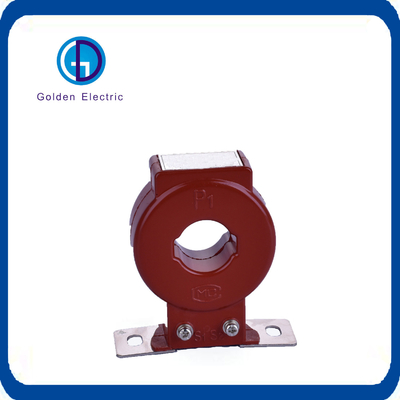

Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A for Indoor Protection

1
MOQ
Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A for Indoor Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Insulating Medium: Common Insulating Materials
Installation: Busbar Type
Magnetic Circuit Structure: Cascade Type
Voltage Transformation Principle: Electromagnetic Type
Output Signal Type: Digital Output
Operating Temperature: -30c To 70c
Measuring Range: 0-50A
IP Rating: IP30
Accuracy Grade: 0.5g
Construction: Screw
Bobbin: PBT
Output Connection: Terminal
S_Customized: Yes
Accuracy Class: 0.5 / 1.0
Model No.: Lmzj1 Series
Transport Package: Carton
Specification: According To Customer Demand
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8537209000
Supply Ability: 5000/Month
Application: Electronic, Instrument, Position Sensor, Audio, Lighting
Type: Current Transformer
Phase: Single
Operation Condition: Indoor
Usage: Protection, Measurement
Winding Form: Multilayer Honeycomb Type
Samples: US$ 2/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

LM-0,5 series indoor current transformer, it's used in the circuit, 50Hz, rated voltage 500V. For measurement of instruments, meter or relay protection, control device to transport signal, and measure, protect & control device to isolate from high voltage.

Application:

1.Current measurement
2.Monitoring and protection
3.Energy and sub-metering products
4.Network equipment
5.Instruments and sensors
6.Control systems

Product Parameters


Technical parameter&Dimension of case(mm):


Type Picture Rated current(A)     Rated power(VA) Rated Voltage(KV) Rated Frequency(Hz)
Class:0.5 Class:1
LMZ1-0.5 Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5ALow Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A 5/5-300/5 5 5 0.5 50/60
LMZJ1-0.5 5/5-300/5 5 5 0.5 50/60
400/5-600/5 5 5-10 0.5 50/60
800/5-5000/5 10-30 10-30 0.5 50/60

Type Rated current(A)     A1 B1 C1 D1 E1 F1
LMZ1-0.5 5/5-300/5 31 110 86 113 86 47
LMZJ1-0.5 5/5-300/5 36 110 88 114 86 47
300/5 42 110 90 115 86 47
400/5-600/5 56 110 95 127 86 45
Type Rated current(A)     A2 B2 C2 D2 E2 F2
LMZJ1-0.5 750/5-800/5 83 145 125 100 115 45
1000/5-1500/5 102 175 143 120 123 45
2000/5-4000/5 142 210 162 150 150 45
2000/5 182 260 185 190 162 45
Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A
Type Picture Rated current(A) ID Rated power(VA) Class Rated Voltage(KV) Rated Frequency(Hz)
LMZ(J)1-0.66 Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5ALow Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A 100/5A-300/5A 35 1.5-5 0.5/0.2 660 50/60
300/5A-400/5A 40 5 0.5/0.2 660 50/60
400/5A-600/5A 50 5 0.5/0.2 660 50/60
750/5A-800/5A 80 5-10 0.5/0.2 660 50/60
1000/5A-1500/5A 100 5-10 0.5/0.2 660 50/60
2000/5A-3000/5A 140 10-30 0.5/0.2 660 50/60
Type A B C D E F
LMZ(J)1-0.66 36 94 15 112 45 65
42 94 15 112 45 65
52 104 20 115 45 65
82 133 24 115 44 63
102 157 25 123 44 65
142 205 36 145 46 72
Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A

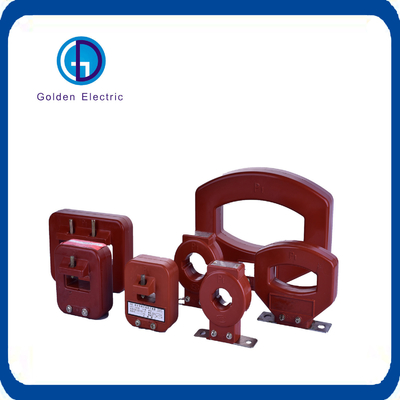

Provide you with many options

Low Voltage Indoor Current Transformer 500V Lmzj1-0.5 6000A/5A

FQA

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

                                       Any more query please contact with us, thank you!
