Cp Series AC Current Transformer 100/60 DIN Rail CT with Terminal Output Connection

1
MOQ
Cp Series AC Current Transformer 100/60 DIN Rail CT with Terminal Output Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Insulating Medium: Common Insulating Materials
Installation: Busbar Type
Magnetic Circuit Structure: Cascade Type
Voltage Transformation Principle: Electromagnetic Type
Output Signal Type: Digital Output
Operating Temperature: -30c To 70c
Measuring Range: 0-50A
IP Rating: IP30
Accuracy Grade: 0.5g
Construction: Screw
Bobbin: PBT
Output Connection: Terminal
S_Customized: Yes
Accuracy Class: 0.5 / 1.0
Model No.: Mes/Cp Series
Transport Package: Carton
Specification: According To Customer Demand
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8537209000
Supply Ability: 5000/Month
Application: Electronic, Instrument, Position Sensor, Audio, Lighting
Type: Current Transformer
Phase: Single
Operation Condition: Indoor
Usage: Protection, Measurement
Winding Form: Multilayer Honeycomb Type
Samples: US$ 2/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

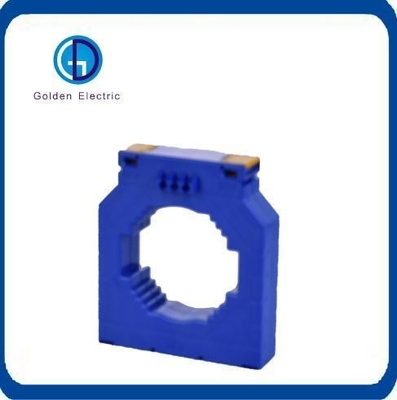

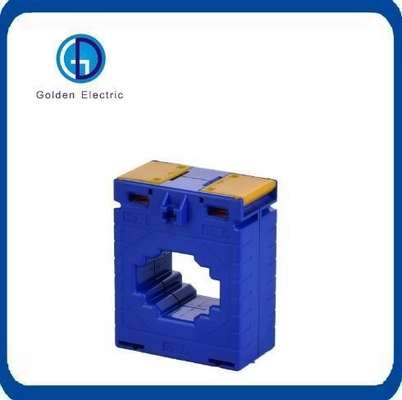

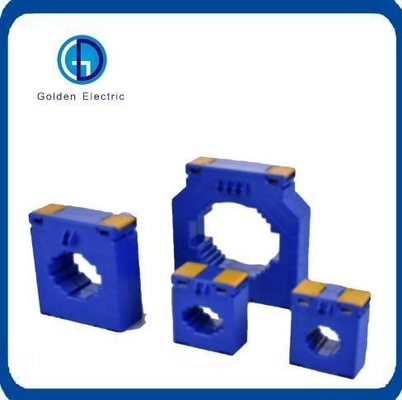

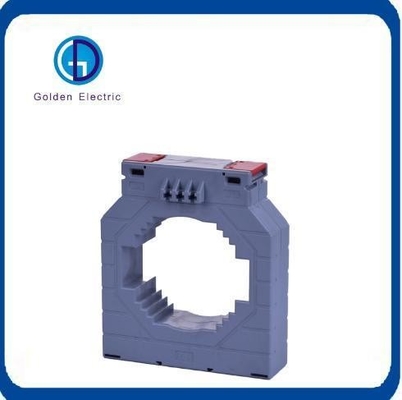

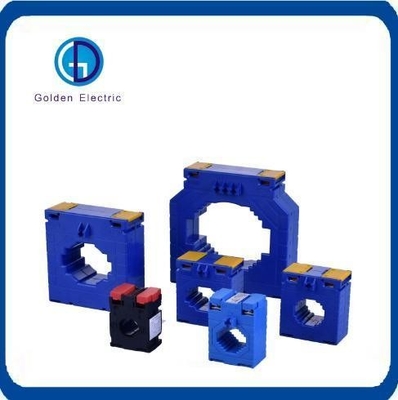

A range of (10 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover. DIN rail mounting all makes this series CT match the requirements in space limited panels.

Feature:
Three built in fixing methods: Side base; DIN rail; Busbar mounting
Built in hinged terminal cover.
Compact design
Primary current from 5A to 3000A

Application:
1.Current measurement
2.Monitoring and protection
3.Energy and sub-metering products
4.Network equipment
5.Instruments and sensors
6.Control systems

Product Parameters


Technical parameter
MES/CP SERIES
Type Picture Rated current(A)     Rated power(VA) Rated Voltage(KV) Rated Frequency(Hz)
Class:0.5 Class:1
MES-62/30 Cp Series AC Current Transformer Approve Mes 100/60 DIN Rail CT 30/5 1 2.5 720 50/60
50/5 1 2.5 720 50/60
60/5 2.5 2.5 720 50/60
75/5 2.5 5 720 50/60
100/5 2.5 5 720 50/60
150/5 5 5 720 50/60
200/5 5 5 720 50/60
300/5 5 5 720 50/60
MES-62/40 150/5 2.5 5 720 50/60
200/5 5 5 720 50/60
250/5 5 5 720 50/60
300/5 5 5 720 50/60
400/5 5 5 720 50/60
600/5 5 5 720 50/60
MES-30 Cp Series AC Current Transformer Approve Mes 100/60 DIN Rail CT 30/5 1.5 2.5 720 50/60
50/5 1.5 2.5 720 50/60
60/5 2.5 5 720 50/60
75/5 2.5 5 720 50/60
100/5 2.5 5 720 50/60
150/5 5 5 720 50/60
200/5 5 5 720 50/60
250/5 5 5 720 50/60
300/5 5 5 720 50/60
MES-40 100/5 1.5 2.5 720 50/60
150/5 2.5 2.5 720 50/60
200/5 5 5 720 50/60
250/5 5 5 720 50/60
300/5 5 5 720 50/60
400/5 5 5 720 50/60
600/5 5 5 720 50/60
MSQ-100 Cp Series AC Current Transformer Approve Mes 100/60 DIN Rail CT 400/5 5 5 720 50/60
600/5 5 5 720 50/60
800/5 5 10 720 50/60
1000/5 5 10 720 50/60
MES-100 800/5 5 10 720 50/60
1000/5 5 10 720 50/60
1500/5 10 15 720 50/60
1600/5 10 15 720 50/60
2000/5 15 20 720 50/60
2500/5 20 30 720 50/60
3000/5 20 30 720 50/60





Drawings



Cp Series AC Current Transformer Approve Mes 100/60 DIN Rail CT


Provide you with many options

Cp Series AC Current Transformer Approve Mes 100/60 DIN Rail CT

FQA

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

                                       Any more query please contact with us, thank you!
