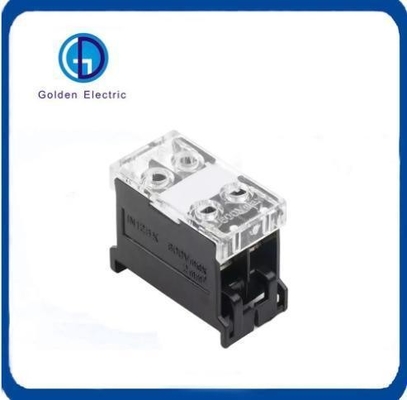

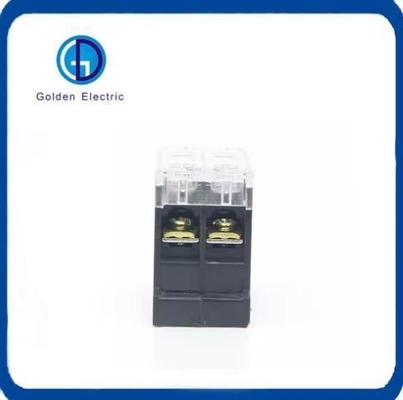

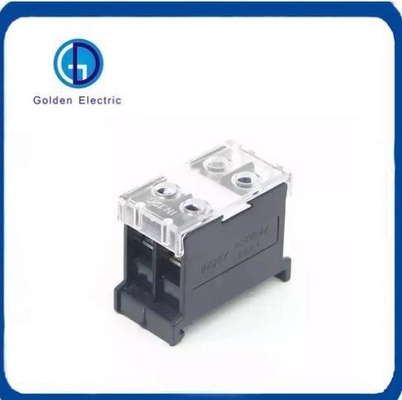

Rectangle 600V Pluggable Terminal Blocks for Push-Pull Connections in Series 1p/2p/3p

1
MOQ
Rectangle 600V Pluggable Terminal Blocks for Push-Pull Connections in Series 1p/2p/3p
Features Gallery Product Description Request A Quote
Features
Specifications
Character: Environmental Protection
Production Process: Injection Molding
Brand: Golden Or Netural Or Customer Brand
Product Name: In Series Terminal Blocks
Wire Range: 2mm2
Conductor Material: Brass
Usage: Wire Connecting
Rated Voltage: 600V
Rated Current: 20A
Screws: Steel ,Nickel Plated
Transport Package: Standara Export Carton
Specification: 2P
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8537209000
Supply Ability: 5000/Month
Application: PCB, Cable, Computer, Communication, Car, Mobile Phone, Integrated IC, Wer Supply, Battery
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Welding Connection
Type: Filter Electric Connector
Samples: US$ 1/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

  We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. Equipped with advanced detection equipment, can be directly UL486E, UL1059, EN60998, EN60947, EN61984, GB13140, GB14048 standards, such as testing various types of terminals, for our new product development to provide a reliable basis for the Secretary to improve my products related to the efficiency and accuracy of certification.

    For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.

    With the advanced administration system, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Asia, Africa etc and get good comment from the customers.



Product Parameters

Product Name IN Series Terminal Blocks
Model IN12BK IN13BK IN20BK IN30BK IN411S IN60BK IN100C IN200K
Standard UL/CE
Rated Voltage 600V
Rated Current 20A 20A 30A 50A 60A 90A 130A 240A
Wiring range 2mm² 2mm² 3.5mm² 8mm² 14mm² 22mm² 38mm² 100mm²

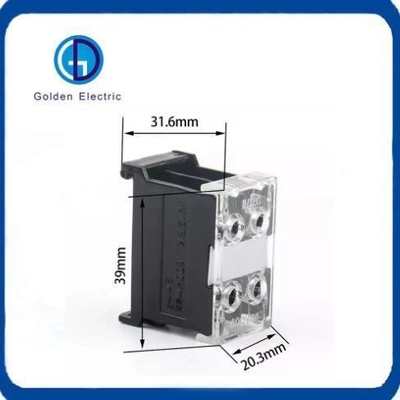

Size:height/width/thickness 32/37/20mm 32/37/26mm 32/37/36mm 32/45/49mm 32/45/18mm 40/40/23mm 48/74/33mm 58/90/40mm
Rated impulse voltage / pollution degree 8kV/3
Screws /Torque M3/0.6-0.8Nm M4/1.5-1.8Nm M6/3.2-3.7Nm M8/15-20Nm M10/25-30Nm
Pluggauge A3 A3 A5 A5 B7 B9 B12 B15
Material PC UL94V-0
Terminal material Brass,Nickel plated
Screws Steel,M3 Nickel plated Steel,M4 Nickel plated Steel,M6 Nickel plated Steel,M8 Nickel plated Steel,M10 Nickel plated

Other Types
ITEM NO. WIRE SECTION (MM²) RATED CURRENT RATED VOLTAGE DIMENSION(MM)
IN13SBK 2 20A 600V 40*30*26
IN20BK 3.5 30A 600V 40*32*36
IN30BK 8 50A 600V 48*36*43
IN411S 14 60A 600V 48*36*17
IN60BK 22 90A 600V 55*40*23
IN100K 38 130A 600V 75*46*32
IN200K 100 240A 600V 85.5*59*40
IN400K 200 400A 600V 86*60*41


Technological characteristics

in Series 1p/2p/3p Screw Terminal Block 600V Pluggable Terminal Blocks
Black Bakelite Shell

High quality bakelite material, firm and durable,Long Service life and high temperature resistance
High Quality Conductive sheet

High quality conduction sheet,strong conductivity
in Series 1p/2p/3p Screw Terminal Block 600V Pluggable Terminal Blocks
in Series 1p/2p/3p Screw Terminal Block 600V Pluggable Terminal Blocks
PVC Flame Retardant Material

PVC high insulation Fire fighting blink
Dust Cover

The model is engaved on the surface to prevent dusrt from falling into the product and protect the wire junction
in Series 1p/2p/3p Screw Terminal Block 600V Pluggable Terminal Blocks

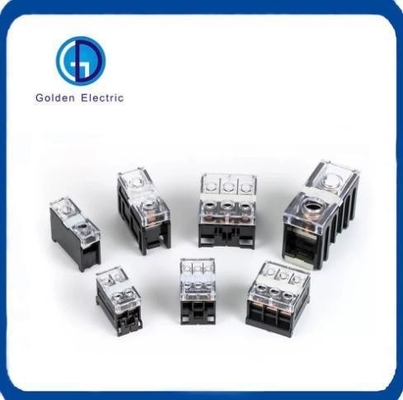

Provide you with many options



in Series 1p/2p/3p Screw Terminal Block 600V Pluggable Terminal Blocks

Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse and fuse holder, Circuit breaker , distribution box , PV combiner box ,surge protector, Timer Switch,Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.
