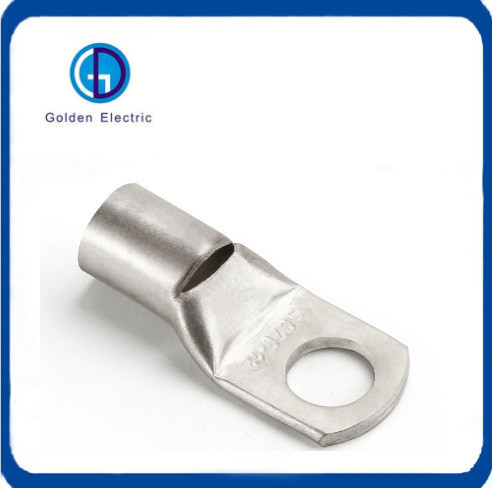

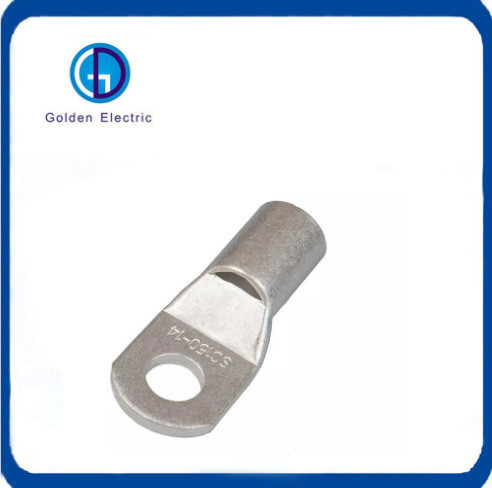

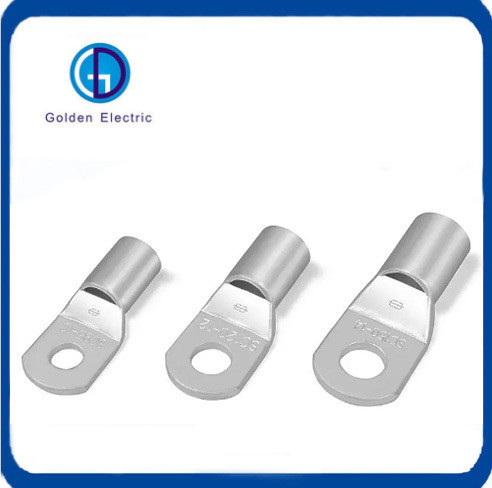

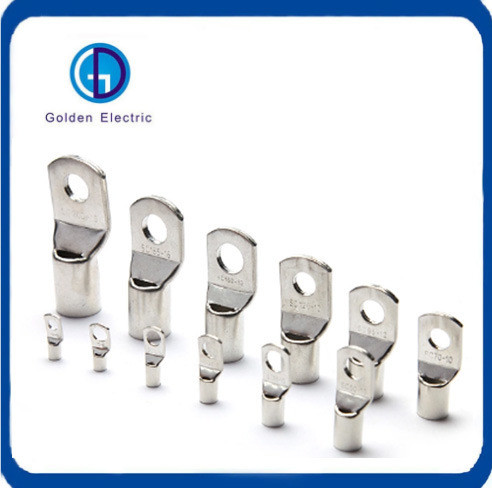

SC-1 copper cable lugs are suitable for the connection of copper conductors (section 1.5-1000mm2) in power cable with electronic equipment. They are made of 99.9% pure tin coated copper tube T2. Working temperature is from -55ºC to +150ºC. Corrosion resistance, safety, long service life, strong electrical conductivity
Pure copper surface tin plating excellent workmanship, used in mechanical equipment factory distribution box
Products property:
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:Tinned E-Cu
| Model | Φ | D | d | L |
| SC-1.5 | f4,f5 | 3.5 | 1.8 | 18 |
| SC-2.5 | f4,f5,f6 | 4 | 2.5 | 19 |
| SC-4 | f5,f6 | 4.8 | 3.1 | 21 |
| SC-6 | f5,f6,f8 | 5.5 | 3.8 | 24 |
| SC-10 | f6,f8 | 6.8 | 4.8 | 25.5 |
| SC-16 | f6,f8,f10 | 7.5 | 5.5 | 30.5 |
| SC-25 | f6,f8,f10,f12 | 9 | 7 | 34 |
| SC-35 | f8,f10,f12 | 10.5 | 8.2 | 38 |
| SC-50 | f8,f10,f12 | 12.5 | 9.8 | 45 |
| SC-70 | f8,f10,f12 | 14.5 | 11.5 | 50 |
| SC-95 | f10,f12 | 17.5 | 13.8 | 55.5 |
| SC-120 | f12,f16 | 19.5 | 15.5 | 63 |
| SC-150 | f12,f16 | 20.5 | 16.5 | 70 |
| SC-185 | f16 | 23.5 | 18.8 | 78 |
| SC-240 | f16 | 26 | 21 | 92 |
| SC-300 | f16,f20 | 30 | 24 | 102 |
| SC-400 | f16,f20 | 34 | 27 | 113 |
| SC-500 | f16,f20 | 38 | 30 | 123 |
| SC-630 | f20 | 45 | 35 | 135 |
| SC-800 | f22 | 50 | 40 | 170 |
| SC-1000 | f22 | 56 | 44 | 200 |
Technological characteristics
Provide you with many options
- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse and fuse holder, Circuit breaker , distribution box , PV combiner box ,surge protector, Timer Switch,Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
