Features

Specifications

Material Details: Red Copper And Fire-Resistant PVC

Character: Environmental Protection

Transport Package: Standard Export Carton

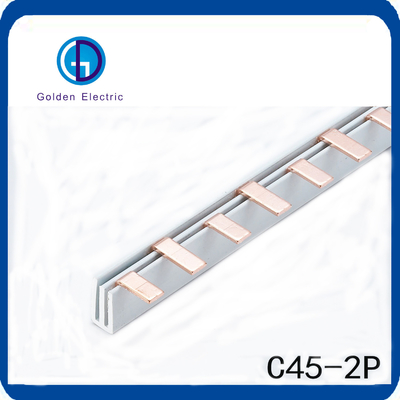

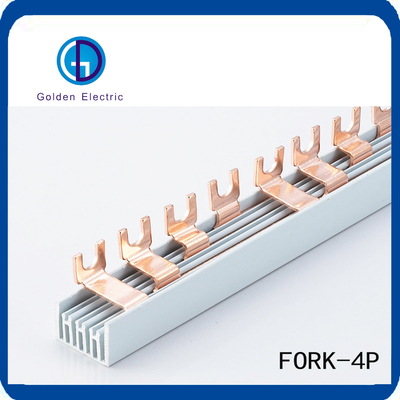

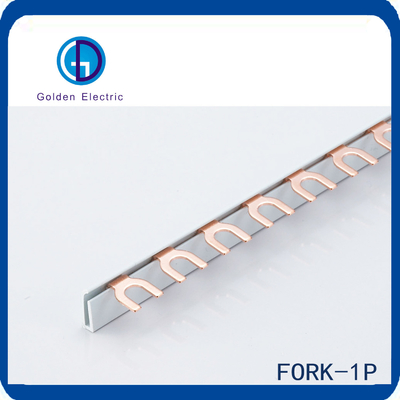

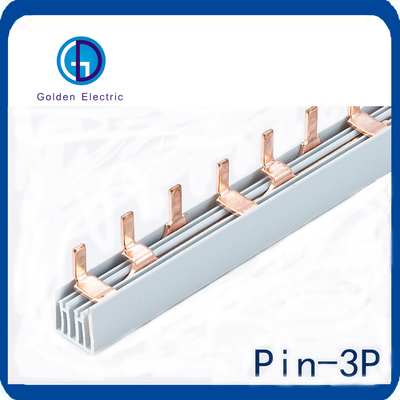

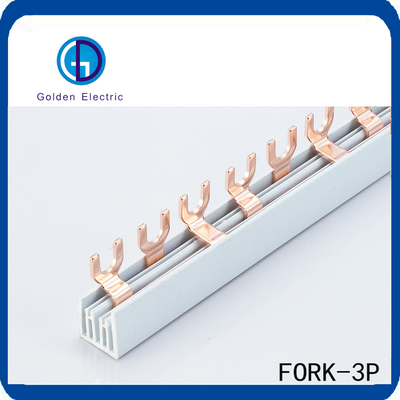

Specification: Pin Fork C45 1p 2p 3p 4p

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 8543709990

Supply Ability: 5000/Month

Certification: CE, TUV, ISO9001, BS, VDE

Model: Fork Type

Shape: Pin Busbar

Type: MCB

Interface Type: AC/DC

Application: PCB, Combiner Box

Samples: US$ 1/Piece 1 Piece(Min.Order) | Request Samp

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

Red Copper and Fire-Resistant PVC Material Details 2 Phase Fork Bus Bar with Competitive

Product Description

Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, copper busbar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.

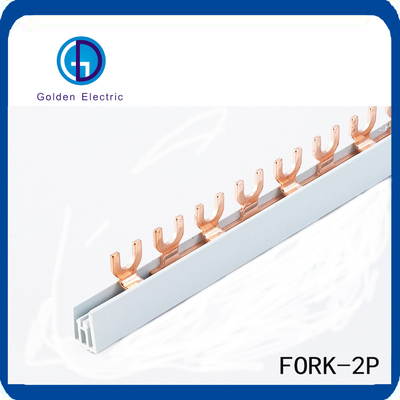

2 Phase Fork Bus Bar Factory with Competitive Price Fork Type 2-Phase busbar(M6)

Description	Article No.	A	B	C	D	E	F	G
Description	Article No.	Cross Section	Distance (mm)	Width of Fork (mm)	Length of Pin (mm)	Modules	Length(mm)	Reference Current
F-2L-210/8	KG21208	8mm²	17.8	11	13.5	12	210	50 A
F-2L-210/10	KG21210	10mm²	17.8	11	13.5	12	210	63 A
F-2L-210/13	KG21213	13mm²	17.8	11	13.5	12	210	70 A
F-2L-210/16	KG21216	16mm²	17.8	11	13.5	12	210	80 A
F-2L-1000/8	KG25408	8mm²	17.8	11	13.5	54	1000	50 A
F-2L-1000/10	KG25410	10mm²	17.8	11	13.5	54	1000	63 A
F-2L-1000/13	KG25413	13mm²	17.8	11	13.5	54	1000	70 A
F-2L-1000/16	KG25416	16mm²	17.8	11	13.5	54	1000	80 A
F-2L-1016/8	KG25608	8mm²	17.8	11	13.5	56	1016	50 A
F-2L-1016/10	KG25610	10mm²	17.8	11	13.5	56	1016	63 A
F-2L-1016/13	KG25613	13mm²	17.8	11	13.5	56	1016	70 A
F-2L-1016/16	KG25616	16mm²	17.8	11	13.5	56	1016	80 A

Technical features of copper busbar :
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 100A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.

Customized busbar
2 Phase Fork Bus Bar Factory with Competitive Price

End caps

Package:International standard packaging

Transport method : support multiple modes of such as sea, land and air
2 Phase Fork Bus Bar Factory with Competitive Price

Buyer: If we need some sample, whether you can supply?
Seller: Yes, we can.

Buyer: Our current is 63A, is ok?
Seller: Our max current is 125A. the current is less than 125A, is ok.

Buyer: Can we use our LOGO?
Seller: Yes, we can use your LOGO and company information

Buyer: Fork type copper busbar is U type copper busbar?
Seller: Yes. it's the same. You can choose fork type copper busbar according to your requirements.
