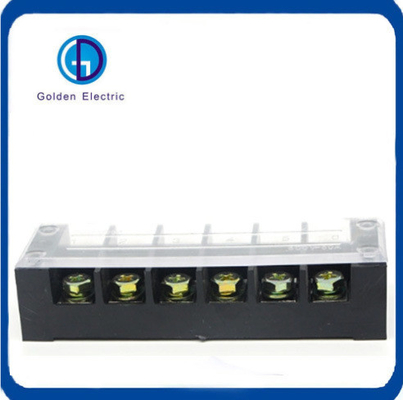

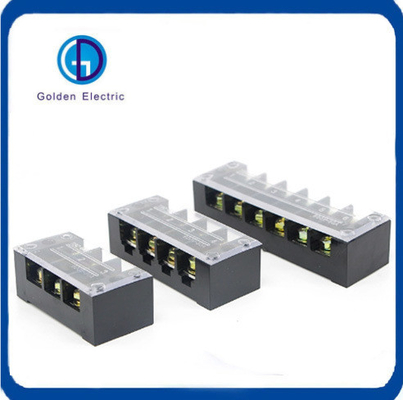

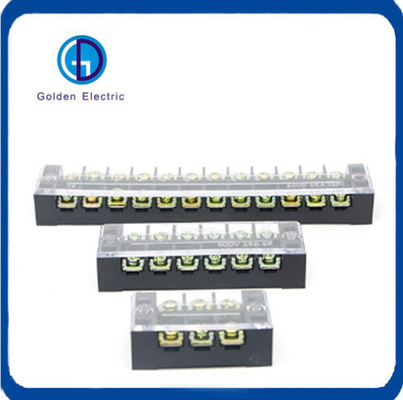

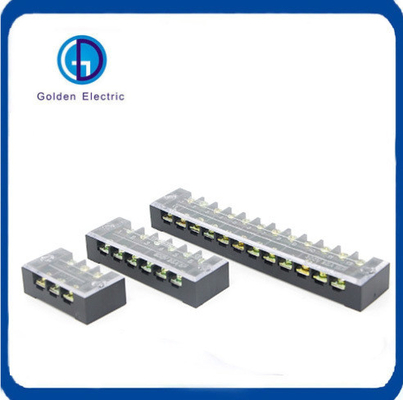

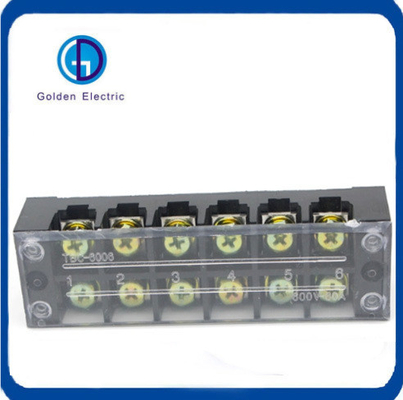

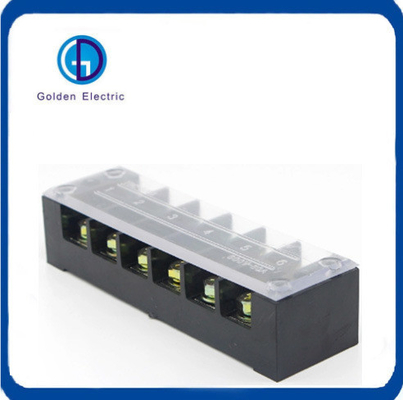

TB Series screw fixed barrier terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and self-isolated without needing to twist, solder or any other splicing, by this method wiring can adjusted at anytime just as easy as it was the first time.
Each position block offers a screw pitch of 10mm with a max current 15A /25A/45A/60A/100A and a max voltage tolerance of 600V before risking meltdown or implosion.Small pitch to save space, low structural height, Large wiring capacity, can be connected to the section area of 4mm² flexible wireThe plug socket is protected against wrong insertion and dislocation.
| Mode.No | Wire Section | Rated Current/Voltage | Size(mm) | Screws | Poles |
| Length | Wide | High |
| TB-1503 | 0.5-1.5mm² | 15A/600V | 45.5 | 22 | 17.5 | M3 | 3 |
| TB-1504 | 0.5-1.5mm² | 15A/600V | 54.2 | 22 | 17.5 | 4 |
| TB-1505 | 0.5-1.5mm² | 15A/600V | 63 | 22 | 17.5 | 5 |
| TB-1506 | 0.5-1.5mm² | 15A/600V | 73 | 22 | 17.5 | 6 |
| TB-1510 | 0.5-1.5mm² | 15A/600V | 107.5 | 22 | 17.5 | 10 |
| TB-1512 | 0.5-1.5mm² | 15A/600V | 125.5 | 22 | 17.5 | 12 |
| TB-2503 | 0.5-2.5mm² | 25A/600V | 55 | 30 | 19 | M4 | 3 |
| TB-2504 | 0.5-2.5mm² | 25A/600V | 67 | 30 | 19 | 4 |
| TB-2505 | 0.5-2.5mm² | 25A/600V | 79 | 30 | 19 | 5 |
| TB-2506 | 0.5-2.5mm² | 25A/600V | 91 | 30 | 19 | 6 |
| TB-2510 | 0.5-2.5mm² | 25A/600V | 165 | 30 | 19 | 10 |
| TB-2512 | 0.5-2.5mm² | 25A/600V | 163 | 30 | 19 | 12 |
| TB-3503 | 0.5-2.5mm² | 35A/600V | 55 | 30 | 19 | M4 | 3 |
| TB-3504 | 0.5-2.5mm² | 35A/600V | 67 | 30 | 19 | 4 |
| TB-3506 | 0.5-2.5mm² | 35A/600V | 91 | 30 | 19 | 5 |
| TB-3512 | 0.5-2.5mm² | 35A/600V | 165 | 30 | 19 | 12 |
| TB-4503 | 1.5-4mm² | 45A/600V | 70 | 38 | 23.5 | M4 | 3 |
| TB-4504 | 1.5-4mm² | 45A/600V | 86 | 38 | 23.5 | 4 |
| TB-4505 | 1.5-4mm² | 45A/600V | 103 | 38 | 23.5 | 5 |
| TB-4506 | 1.5-4mm² | 45A/600V | 120.5 | 38 | 23.5 | 6 |
| TB-4512 | 1.5-4mm² | 45A/600V | 221 | 38 | 23.5 | 12 |
| TB-60A/3P | 2.5-6mm² | 60A/600V | 75 | 38 | 30.3 | M6 | 3 |
| TB-60A/4P 6P 12P | 2.5-6mm² | 60A/600V | 92.7 | 38 | 30 | 4/6/12 |
| TB-100A/3P 6P 12P | 2.5-10mm² | 100A/600V | 86.3 | 43.5 | 34.5 | M6 | 3/6/12 |
Provide you with many options
Tc series:
Tb series:
- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse and fuse holder, Circuit breaker , distribution box , PV combiner box ,surge protector, Timer Switch,Industrial plug and socket,Wind Turbine, Solar product, busbar clamp and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
