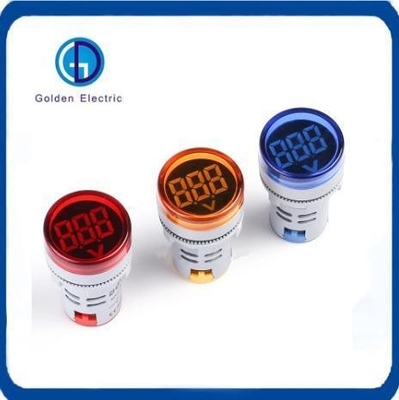

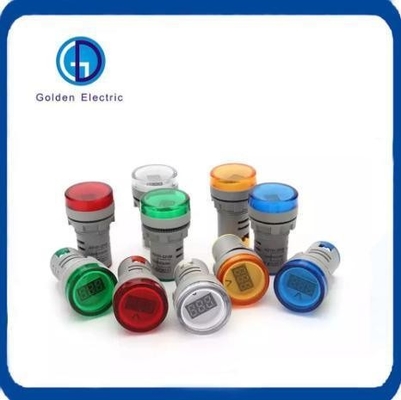

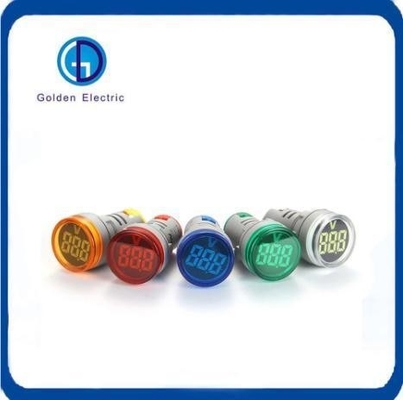

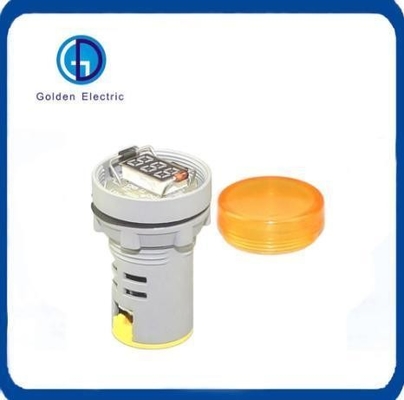

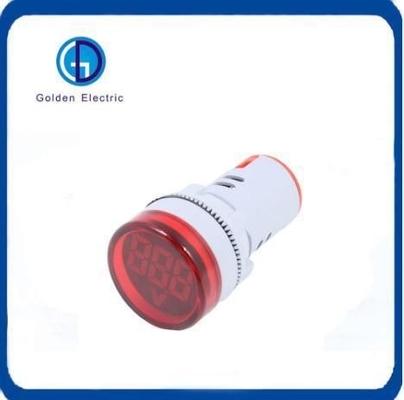

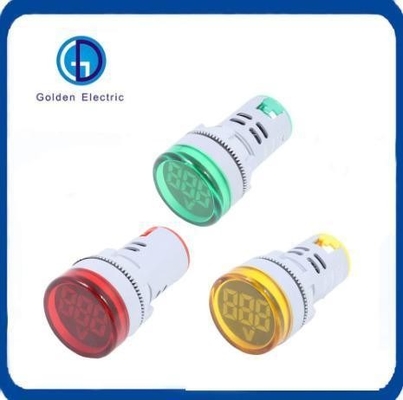

AD16 with voltage indicator light use high brightness pure color LED light emitting chip as the light source, long life, low consumption, small volume, light weight, head style diversity, high brightness, good reliability, aesthetically pleasing and manufacture of exquisite, suitable for electric power, telecommunications, machine tools, shipbuilding, textile, printing, mining machinery and other equipment of the line of indication signal and display voltage, five colors: red, green, yellow, blue, white. Specify different job and voltage display status.
The luminescent body adopts pure ultra bright LED luminescent tube with pure color and can live up to 100,000 hours.
The parts are imported material, durable, wear-resistant, built-in screw wire, more secure and convenient.
LED Pilot Lamp with digital voltmeter and Ammeter are widely used as signal light, emergency light, and other informative light source in electric elements under 380V.
- Color: red, green, yellow, blue,orange & white
- Voltage: 6V-380V (Customized available)
- Current: ≤20mA
- Panel mounting hole: 22mm
- Temperature: -20ºC - +50ºC
- Average temperature: < +35ºC
- Humidity: <50% (+40ºC<) & <90% (+20ºC<)
- Power Supply: AC ,DC , AC/DC
Noted:Can not used in the electric environment with frequency conversion , high frequency, strong harmonic interference signal.
| Product Name | Led Voltage Indicator lamp |
| Operational Voltage | ≤660V |
| Diameter | 22mm |
| Ambient temperature | -25 °C~ +55°C |
| Operational humidity | 45% to 90% |
| Power-frequency withstand voltage | 2500V AC, 1min |
| Contact resistance | ≤50mΩ |
| Mechanical life | Monentary 1000, 000, others:10, 000 |
| Electric life | Monentary 100, 000 others:50000 |
| Protection grade | IP40,IP67 with cover |
| Certificate | CCC, CE |
Provide you with many options
1)Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Indicator lamp,Circuit Breaker,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the Indicator lamp guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for indicator lamp.
