100cm Length Conducting Electrical Screw Wire Brass Connector Earth Bar Terminal Block

1
MOQ
100cm Length Conducting Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Features Gallery Product Description Request A Quote
Features
Specifications
Appliable Ambient Temperature: -30-110
Rated Voltage: 415V
Length: 100cm
Rated Current: 32A, 40A, 50A, 63A, 80A, 100A, 125A
Interface Type: AC/DC
Brand: OEM
Shape: U
Type: Fork Type
Production Process: Press
Transport Package: Standard Export Carton
Specification: 1p 2p 3p 4p
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 8536909000
Supply Ability: 5000000PCS/Month
Surface Treatment: Silver Plated
Certification: RoHS, CE, TUV, ISO9001
Material: Brass+PP
Character: Insulation, Environmental Protection
Species: Terminal
Application: Conduct Electricity
Samples: US$ 3/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

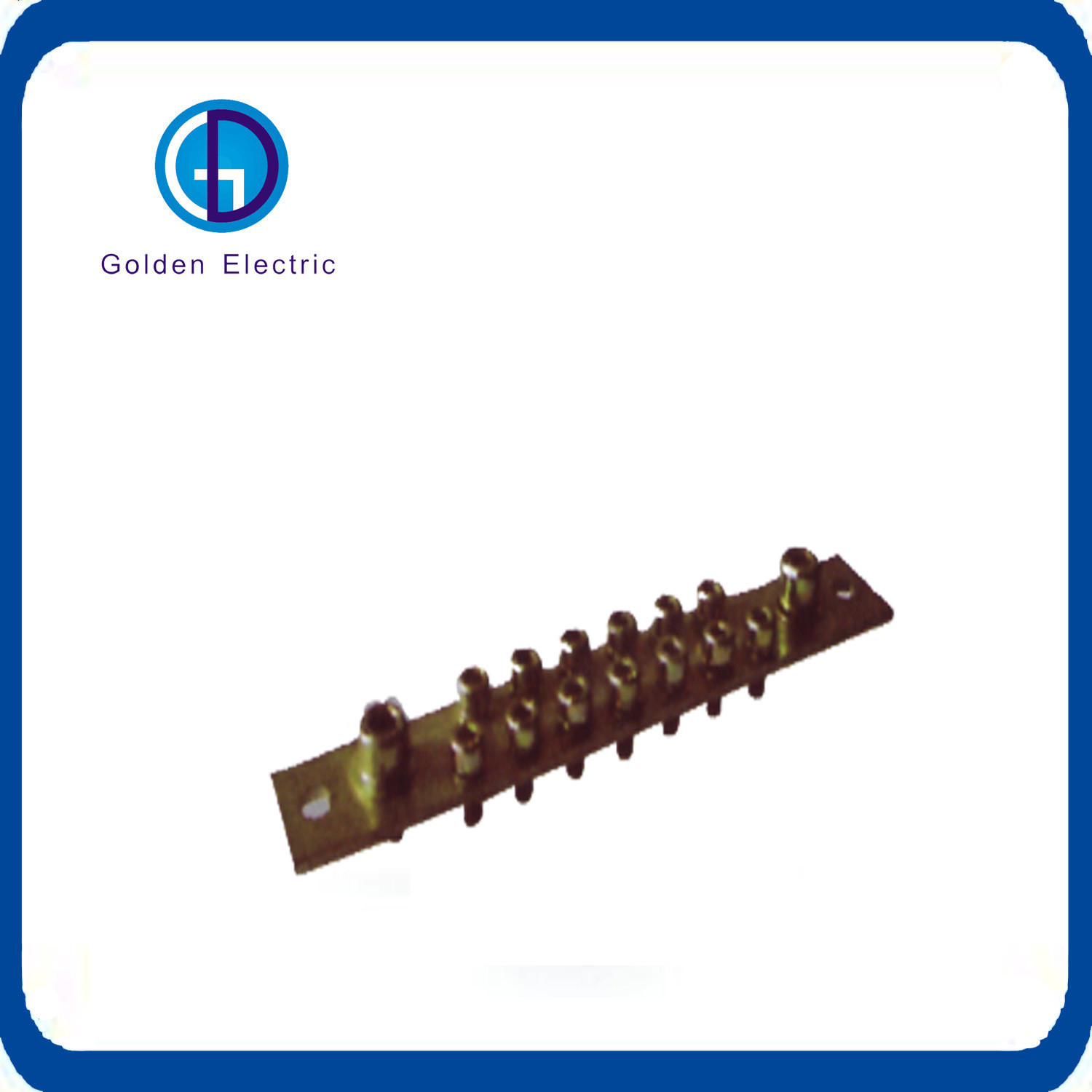

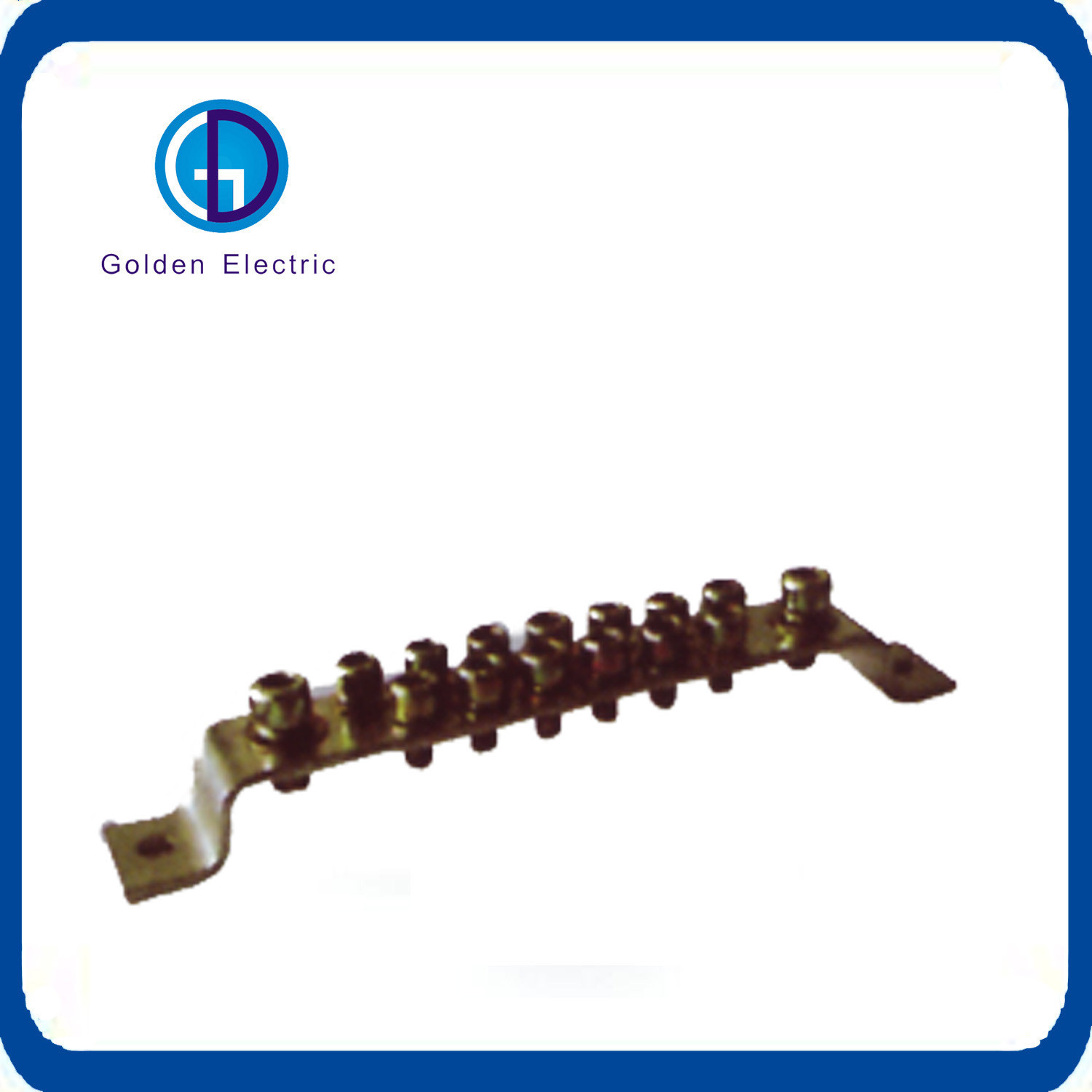

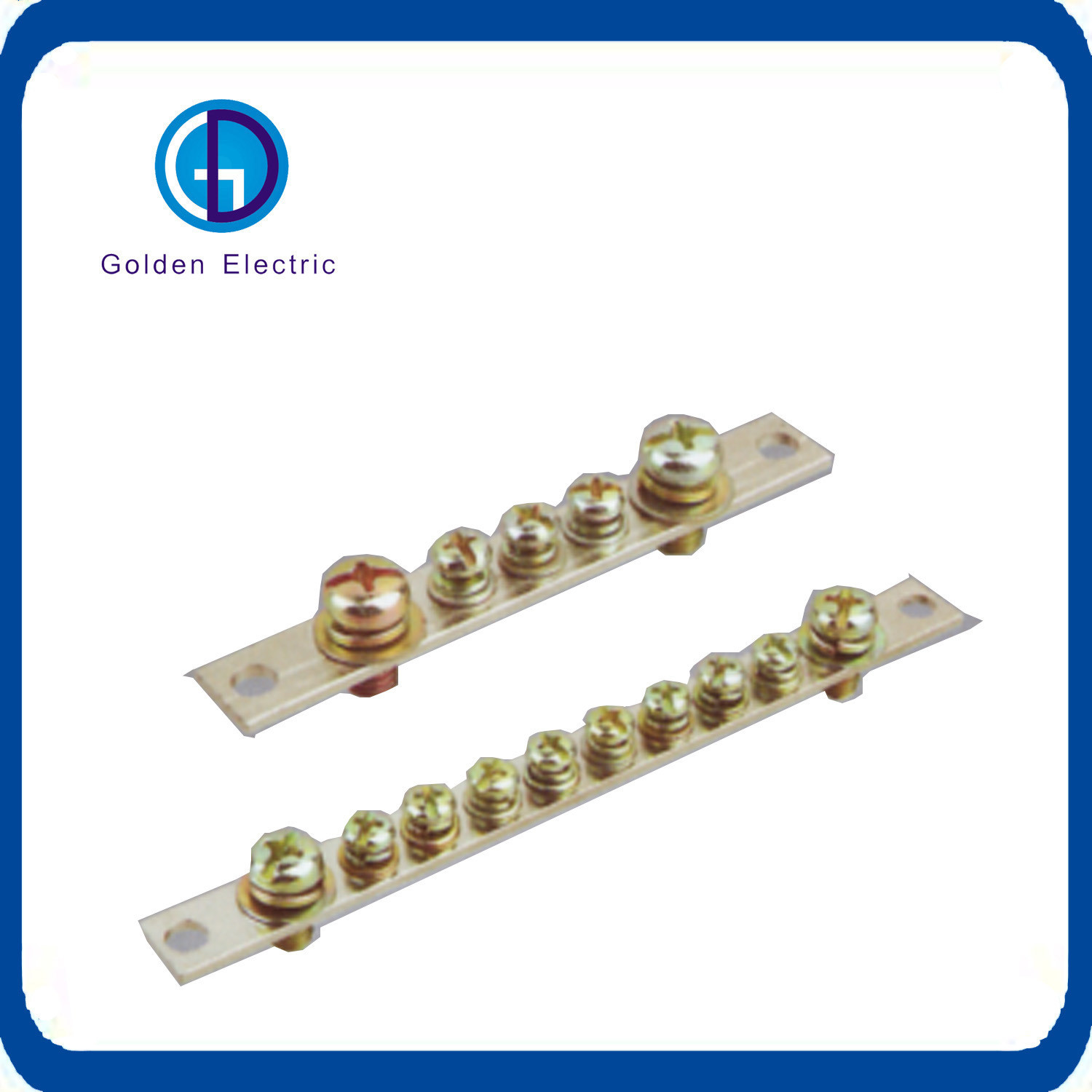

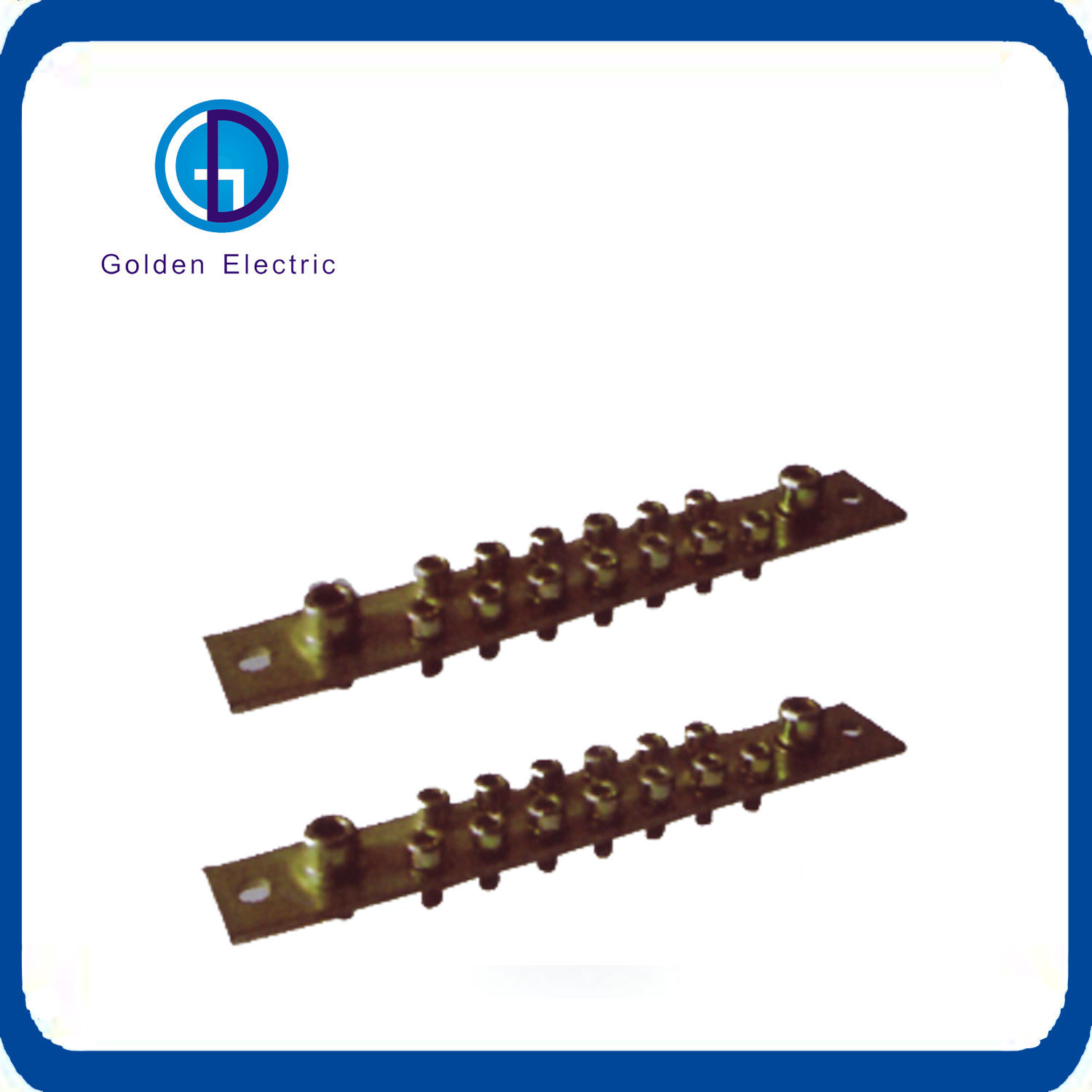

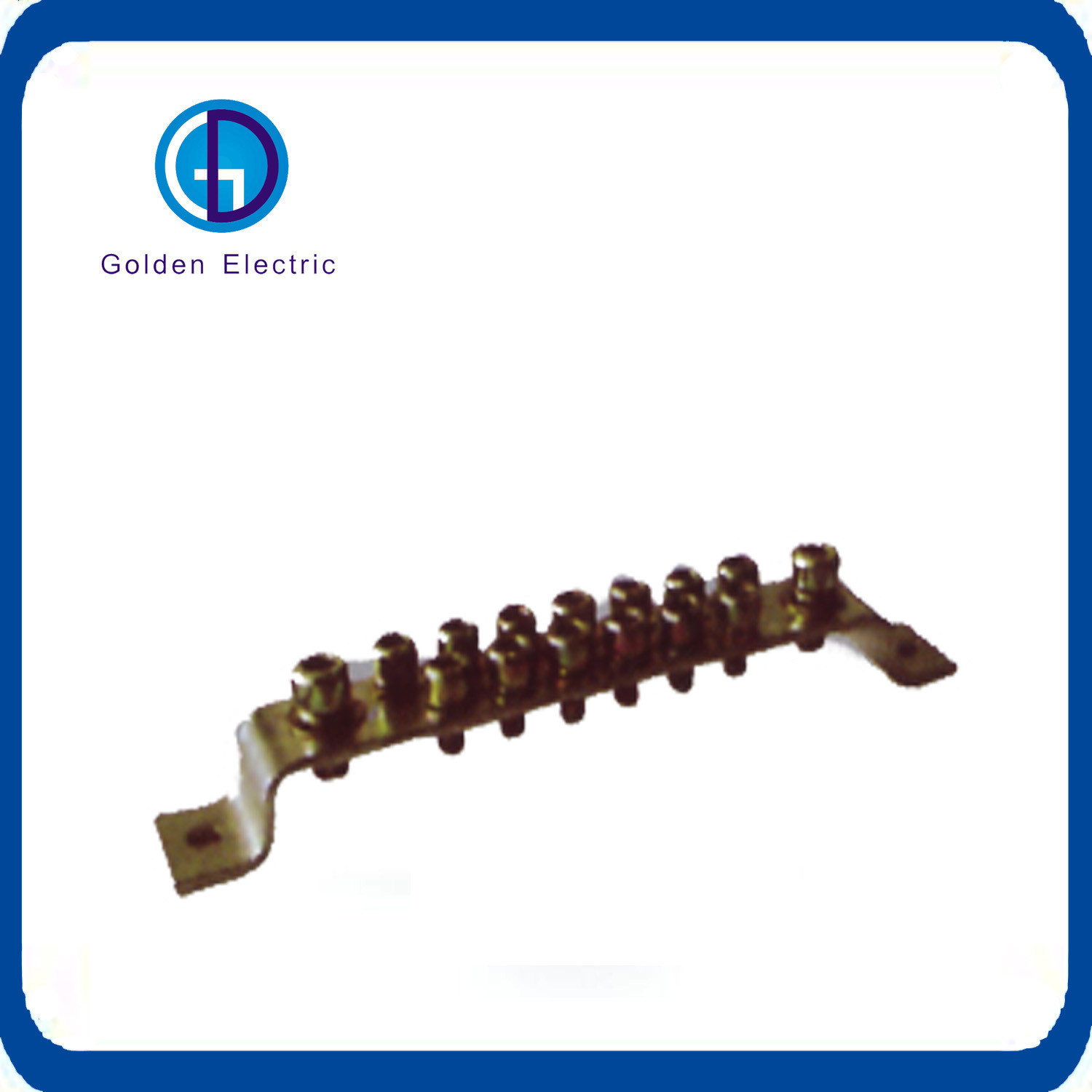

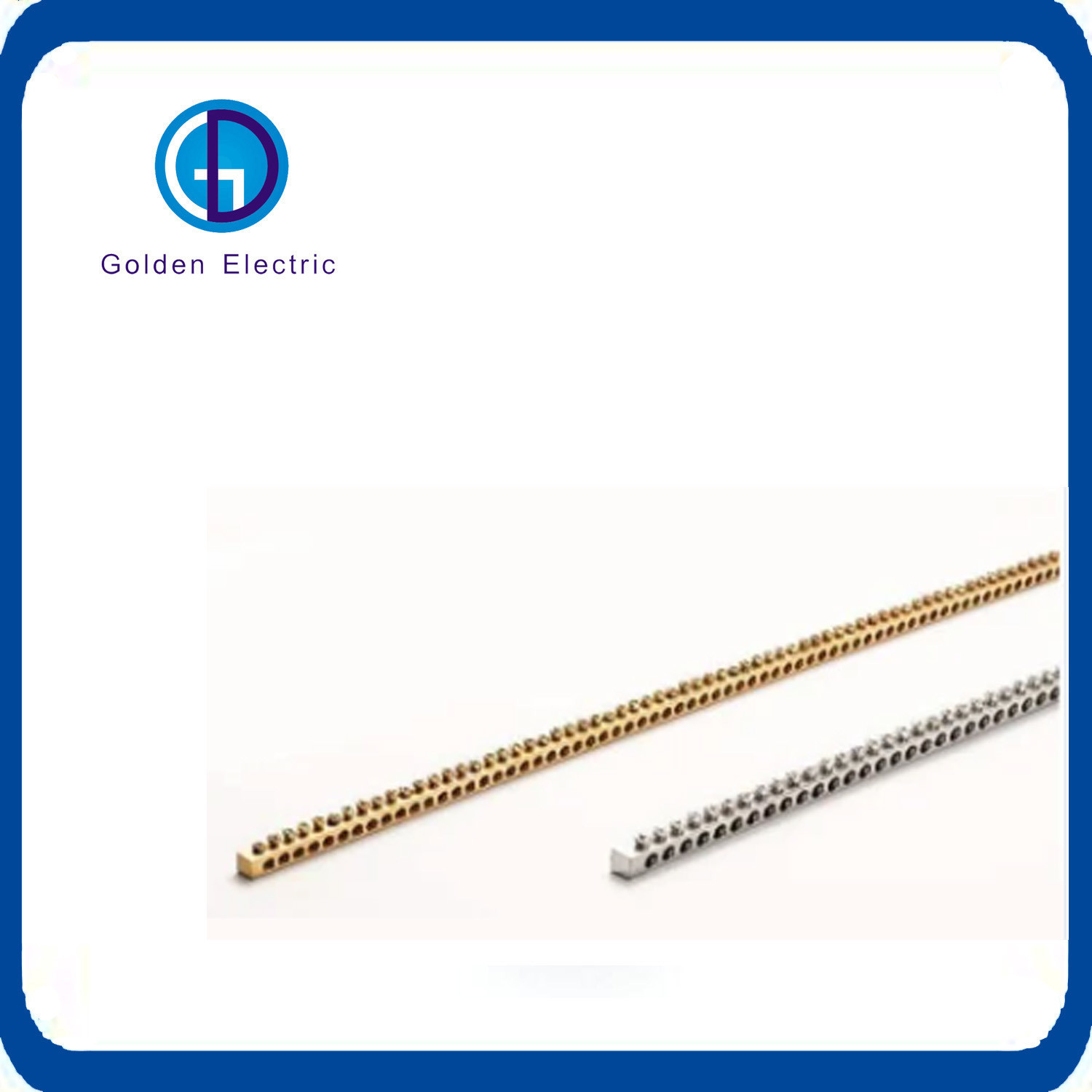

Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal BlockSteel &Aluminum din rails

Material: Brass

Features: Good conductivity,low contact resistance,safe and reliable.

Busbar Description:The Earth bus bar ease wiring of electrical item, enlarge connection area, decrease temperature rise and thus increase the electrical reliability of electrical items.

Busbar Technical Feature:

1. Brass,screw is Iron plated zinc;
2. 94V-2 grade.
3. Rated voltage is 250V/380V
4. Appliable ambient temperature -30-110
5.Color:yellow,red


Product Parameters



CJN215 100A
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Item no. T W L1 L2 L3 H D
CJN21505E 2.0  15.0  126.0  110.0  62.0  19.5  13.5
CJN21507E 2.0  15.0  153.0  137.0  89.0  19.5  13.5
CJN21510E 2.0  15.0  193.0  177.5  129.5  19.5  13.5



CJN325 200A
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Item no. T W L1 L2 L3 H D
CJN32513E 2.5  25.0  163.5  148.5  102.5  19.5  13.5
CJN32515E 2.5  25.0  177.0  162.0  116.0  19.5  13.5
CJN32517E 2.5  25.0  190.5  175.5  129.5  19.5  13.5
CJN32519E 2.5  25.0  204 189 143 19.5  13.5
CJN32521E 2.5  25.0  217.5 202.5 156.5 19.5  13.5



CJN215 100A
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Item no. T W L1 L2 L3 H D
CJN21505N 2.0  15.0  118.0  101.0  62.0  19.5  13.5
CJN21507N 2.0  15.0  145.0  128.0  89.0  19.5  13.5
CJN21510N 2.0  15.0  185.5  168.5  129.5  19.5  13.5



CJN325 200A
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block
Item no. T W L1 L2 L3 H D
CJN32513N 2.5  25.0  158.0  141.5  102.5  19.5  13.5
CJN32515N 2.5  25.0  171.5  155.0  116.0  19.5  13.5
CJN32517N 2.5  25.0  185.0  168.5  129.5  19.5  13.5
CJN32519N 2.5  25.0  198.5 182 143 19.5  13.5
CJN32521N 2.5  25.0  212 195.5 156.5 19.5  13.5


Customized Busbars
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block

Company Profile



 - Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland,cable tie ,isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

   - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The product sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

    - Golden is always striving hard to provide the best services and competitive price to all customers.
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block


Main Product

Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block



Packaging & Shipping


Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment
Grounding System Electrical Screw Wire Brass Connector Earth Bar Terminal Block

FAQ

1. Could i put my own logo on it?
> Sure, of course,we have over 18 years OEM experience,customers' logo can be made by laser, engraved, embossed, transfer printing etc.

2. Should i pay extra for logo printing ?
> If you order amount over out MOQ for OEM package,all OEM fees would be free,if you want to make a trial order,we need to charge a very little fees for the printing and cartons.

3. How about the quality?
We import DU POND brand PA66 nylon raw material from USA,we make sure good quality from the most important factor.
> Acquire the CE & FDA Certification.
> 100% QC in produce process and before package.

4. Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.

5. How much for 1pc sample ?
> we will send 1 bag for free

6. If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.

7. How long to make a sample?
> 3days which depends on the samples' complexity.
