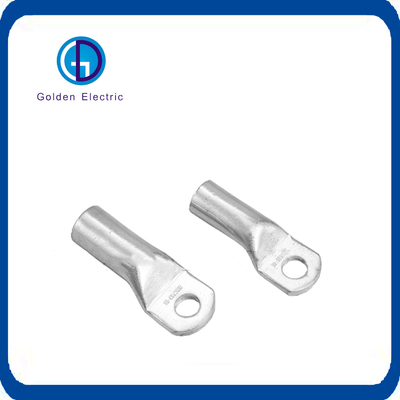

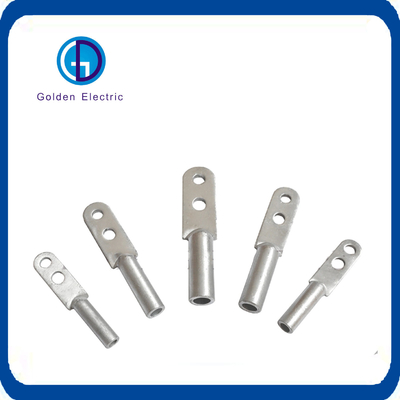

Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs for Superior Conductivity

1
MOQ
Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs for Superior Conductivity
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Tubular
Interface Type: AC/DC
Brand: Golden Electric/OEM
Rated Voltage: 415V
Entry: Chamfered Entry
Busbar: -55c~150c
Size: 1.5~600mm2
Coating: Tin
OEM: Accept
Sample: Accept
Wire Range: 22~16/16~14/14~12/12~10 A.W.G
Color: Natural
Product Key Words: Insulated Terminal Blocks
Shell Material: PVC
Purity Copper: 99.9%
Transport Package: Standard Export Carton
Specification: Aluminum Alloy
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 8547200000
Supply Ability: 500000PCS/Month
Type: Cable Lug
Material: Copper
Application: Conduct Electricity
Character: Insulation
Species: Terminal
Production Process: Injection Molding
Samples: US$ 0.3/Piece 1 Piece(Min.Order) | Request Sa
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

Sc Tin Plated Copper Crimping Terminal Connector Cable LugsProduct Details:


General Requirement
1.Material
E-Cu
2.Surface
Tin-plated mini 8 microns
3.Dimensional
As listed in the table
4.Standards
AS4325.1,DIN46235,DIN40500/2F-25
5.Application
up to 33KV. It is in accordance with DIN46235. And its type test is in accordance with
IEC61236-1.
6. OEM & ODM
accepted


Product Parameters

Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs
Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs
Item No Applicable Dimensions(mm) Note
Bolts D d L2 L1 Φ
DTGA-2.5 m4,m6 4 2.4 23 7 6.6 Can be produced according to customer's drawings
DTGA-4 4.8 3.1 24 9 5.5
DTGA-6 m5,m6,m8m10,m12 5.5 3.8 27 9 5.5
DTGA-10 7 5 30 11 6.5
DTGA-16 m6,m8,m10 8 6 30.5 12 8.5
DTGA-25 m6,m8
m10,m12
9 7 35.5 16 8.5
DTGA-35 11 9 44 18 6.5
DTGA-50 12.5 10 47 20 10.6
DTGA-70 m8,m10
m12,m16
15 12 53 23 10.5
DTGA-95 17 14 57 24 12.5
DTGA-120 m10
m12,m16
19 16 $4  28 12.6
DTGA-150 21 17 74 30 14.5
DTGA-185 m8,m10
m16,m20
23.5 19 80 34 14.5
DTGA-240 26 21 93 40 17
DTGA-300 m16,m20 29 23 102 46 17
DTGA-400 m16,m20 32 26 107 46 17
DTGA-500 m16,m20 36 29 125 48 17
DTGA-600 m16,m20 42 34 155 60 17

Packaging & Shipping

Terminal Value Of Packaging

Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs
Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.


Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!


Delivery Detail:
Shipped in 7 days after payment

Company Profile

   - Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland,cable tie ,isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

   - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.


    - Golden is always striving hard to provide the best services and competitive price to all customers.

Recommend Products
Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs

Our Advantages

1.Best ensure 100% customer satisfaction.
2.Our products have one year guarantee.
3.Sample in design and easy to operate and maintain.
4.All electrical parts of products are made up for qualitified marterials.
5.No MOQ limited for the trial order.
6.We adopt good credit quality electrial appliances.
7.Best customer care and effcient after-sale services.
8.Don't hesitate to inquire us,we will reply you within 12 hours.
Production and transport
Sc Tin Plated Copper Crimping Terminal Connector Cable Lugs

FAQ

Q1: Could I Put My Own Logo On It?
A1: Sure, of course, we are a professional manufacturer and have over 10 years OEM experience, customer;s logo can be made by laser, engraved, embossed, transfer printing etc.

Q2: What's the delivery time?
A2: Normally, 3-15days after order and payment confirmation. Actually, it will depend on your orderquality.

Q3: What's your terms of payment?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4: How do you make our business long-term and good relationship?
A4: a. We keep good quality and competitice price to ensure our customers benefit; b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q5: If we bought your products, but found quality problem, how to solve?
A5: After confirmed, if the quality problem is caused by us not for outer sector, we will compensate each piece to customer.
