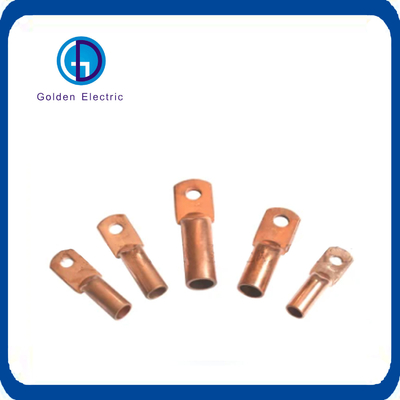

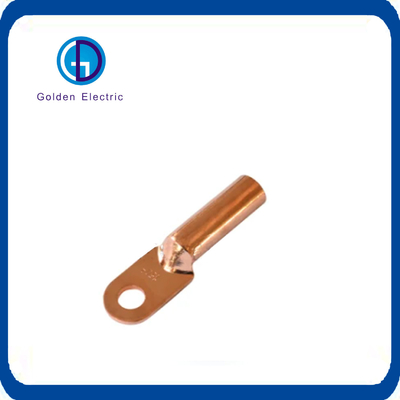

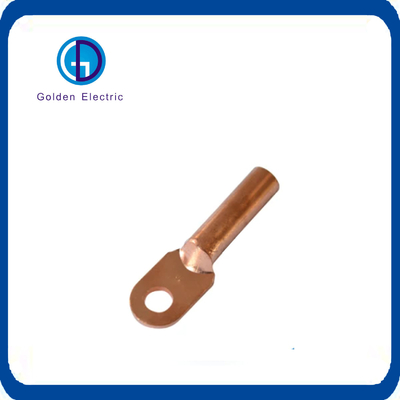

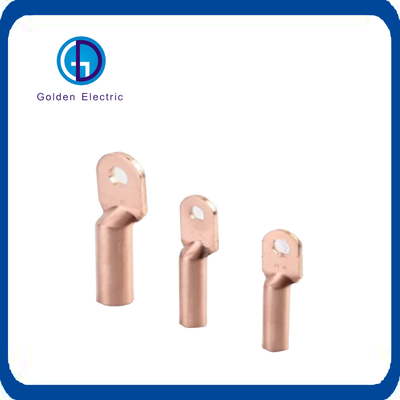

Insulated Tin Coated Jg Copper Cable Terminal Lug for Long-lasting Performance

1
MOQ
Insulated Tin Coated Jg Copper Cable Terminal Lug for Long-lasting Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: Tubular
Interface Type: AC/DC
Brand: Golden Electric/OEM
Entry: Chamfered Entry
Busbar: -55c~150c
Size: 6-1000mm2
Coating: Tin
OEM: Accept
Sample: Accept
Color: Natural
Product Key Words: Insulated Terminal Blocks
Shell Material: PVC
Purity Copper: 99.9%
Transport Package: Standard Export Carton
Specification: Aluminum Alloy
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 8547200000
Supply Ability: 500000PCS/Month
Type: Crimp Terminal, Lug
Material: Copper
Application: Conduct Electricity
Character: Insulation
Species: Terminal
Production Process: Injection Molding
Samples: US$ 0.5/Piece 1 Piece(Min.Order) | Request Sa
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

Jg Copper Cable Terminal Lug

Product Description

JG copper Cable Terminal Lug

1.Material :
E-Cu

2.Surface :
Tin-plated mini 8 microns

3.Product Property :
It is used to connect the copper conductor end.

4.Application:
up to 33KV. It is in accordance with DIN46235. And its type test is in accordance with
IEC61236-1.

Jg Copper Cable Terminal Lug

Product Parameters

Jg Copper Cable Terminal Lug
Jg Copper Cable Terminal Lug

Type Dimensions(mm)
Φ D d L
JG-10 6.2 8 5 38
JG-16 8.4 9 6 41
JG-25 8.4 10 7 46
JG-35 8.5 11 8 52
JG-50 8.5 13 10 54
JG-70 10.5 16 12 61
JG-95 10.5 18 14 66
JG-120 12.5 20 15 73
JG-150 12.5 23 17 77
JG-185 14.5 25 19 86
JG-240 16.5 27 21 93
JG-300 16.5 31 24 103
JG-400 18.5 34 26 113
JG-500 20.5 38 30 124
JG-630 22.5 45 35 140
JG-800 22.5 50 40 170


Packaging & Shipping

Terminal Value Of Packaging

Jg Copper Cable Terminal Lug
Jg Copper Cable Terminal Lug

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.


Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!


Delivery Detail:
Shipped in 7 days after payment
