Company Profile
GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.
Product Description

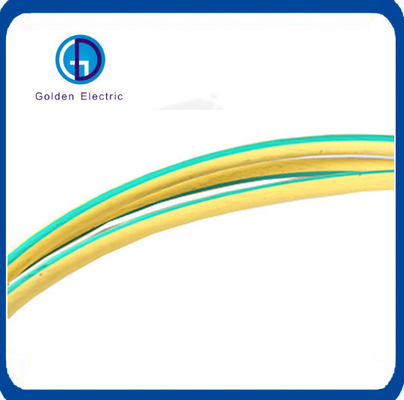

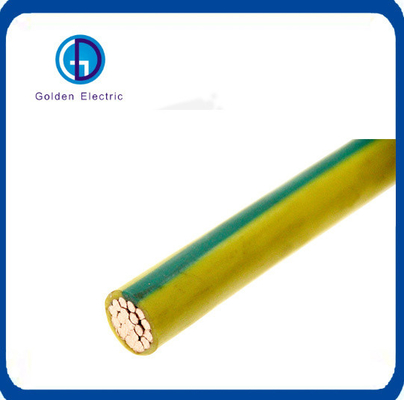

Chinese Supplier Custom Green Yellow BV Insulated Ground Wire Copper Conductor Electric Wire and Cable Electrical
| Material | 99.9%pure copper |
| Diameter | 10-400 mm² |
| Life | ≥50 years |
| Voltage grade | 450/750V |
| Characters | Easy installation ,Good conductivity |
| Available service mode | OEM,ODM |
| Certificate | ISO9001:2015 |
Regular Products size(We Accept Customization) Negotiable Price According to different material/size and and Purchase quantity |
| Product specifications | Nos/Dia
(pcs/mm) | Outer Dia
(mm) | Weight
(kg/km) |
| BV 16 | 7/1.70 | 8.0 | 179 |
| BV 25 | 7/2.14 | 10.0 | 281 |
| BV 35 | 7/2.52 | 11.5 | 381 |
| BV 50 | 19/1.78 | 13.0 | 521 |
| BV 70 | 19/2.14 | 15.0 | 734 |
| BV 95 | 19/2.52 | 17.5 | 962 |
| BV 120 | 37/2.03 | 19.0 | 1180 |
| BV 150 | 37/2.25 | 21.0 | 1470 |
| BV 185 | 37/2.52 | 23.5 | 1810 |
The Insulated Copper Conductor is used as flexible connector in electric transmission and distribution appliance (such as volt transformer, electric stove),electronic equipment and thyristor. Green Yellow Grounding Wire also could be used for grounding wire in electric working. Also, it can be manufactured according to customer's drawings and demands. Insulated Copper Conductor is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.
Products Category
Industrial Socket Plastic Distribution Box Junction Box High Quality AC Electrical Contactor
Electrical Cabinet Distribution Panel Enclosure Bus Bar Support Bus Bar Insulator
Packing & Delivery
Packaging Details: Green Yellow Ground Wire packing: woven belt+ wooden case+ pallets+ container
Lead time:
| Quantity(meters) | 1 - 10000 | >10000 |
| Lead time (days) | 25 | To be negotiated |
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.
Any more query please contact with us, thank you!
