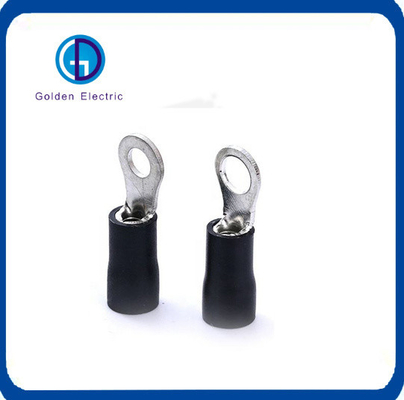

Insulated Terminal Ring Copper Connectors for Crimping Auto Electrical Wires 2-22 AWG

1
MOQ
Insulated Terminal Ring Copper Connectors for Crimping Auto Electrical Wires 2-22 AWG
Features Gallery Product Description Request A Quote
Features
Specifications
Wire Range: 2-22 AWG
Color: Red Blue Black Yellow
Plating: Tinned
Style: Ring Terminal
Insulation Material: PVC/Nylon 66/Heat Shrink Tube
Feature: Fireproof/Moisture-Proof/High Conductivity
Sample: Free
MOQ: 1 Bag
OEM: Accept
Transport Package: Ocean Freight Air Freight
Specification: Different Sizes And Specifications
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8538900000
Supply Ability: 5000/Month
Type: Crimp Terminal, Crimp Terminal
Material: Copper Or Brass, Copper/Bass
Species: Terminal
Production Process: Welding
Shape: O
Brand: Gp
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Model Number: RV1.25series
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description
Company Profile

GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicator
lamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.



Product Description



Terminal material
Brass or copper
Sheath material
PVC/Nylon PA66/Double wall heat shrinkable tubing
Surface treatment
Tinned (Or according to customer requirements)
A.W.G
2-22 AWG
Operating temperature
-45°C-125°C
Maximum current
19A-160A
Color
Red/Yellow/Blue/Black    (Accept customization)



Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals


Product size



Conductor section: 0.5-1.5m (A.W.G 22-16) Maximum current: IMAX=19A
Item NO
Dimension(mm)
USA screw
Screw dia. d2
B
L
F
H
T
Color
RV1.25-3
#4
3.2
5.7
17.8
4.95






10.0






4.3






0.75






Red
RVS1.25-3.5
#6
3.7
5.7
17.8
4.95
RVM1.25-3.5
#6
3.7
6.6
20.1
6.3
RVL1.25-3.5
#6
3.7
8.0
21.5
7.0
RVS1.25-4
#8
4.3
6.6
20.1
6.3
RVL1.25-4
#8
4.3
8.0
21.5
7.0
RV1.25-5
#10
5.3
8.0
21.5
7.0
RV1.25-6
1/4
6.5
11.6
27.5
11.1
RV1.25-8
5/16
8.4
11.6
27.5
11.1
RV1.25-10
3/8
10.5
13.6
31.6
13.9
 Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals



Products Category
Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals
Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals

  Waterproof Industrial Plug and Socket                                                   MC4 Cable Connector

Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals
Factory Supply Insulated Terminal Ring Auto Electrical Wire Crimp Copper Connectors Red Blue Yellow Black Ring Insula Terminals
     Solar PV Cable with MC4 Connector                                       MC4 Solar Crimping Tool Kits




FAQ

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.



                                                   Any more query please contact with us, thank you!
