Features

Specifications

Sealing And Sealing Ring: NBR

Thread Type: NPT

Function: Waterproof/ Air Proof/ Gas Proof

Work Temperature: -40°c-100°c

Certificate: CE, RoHS, IP68, TUV, ISO9001

Transport Package: Ocean Freight Box Packing+Carton+Pallets

Specification: Different Sizes And Specifications

Trademark: Golden Electric Or Customize

Origin: China

HS Code: 7318190000

Supply Ability: 5000/Month

Model Number: M / Pg / NPT / G

Protection Level: IP68

Material: Nylon

Product Name: Multi-Wiring Insert Cable Glands

Main Material: Nylon / Brass / SUS

Claw: Polyamide (PA)

Customization: Available | Customized Request

Highlight:

Greaseproof Nylon Cable Gland

3 Holes Nylon Cable Gland

Thread Type Nylon Compression Gland

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

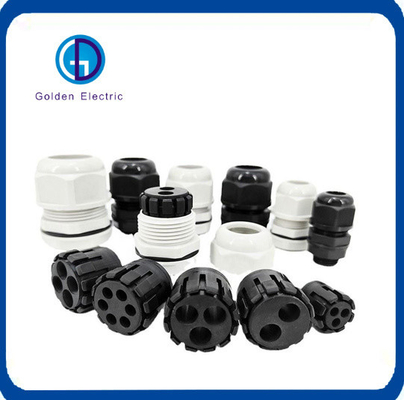

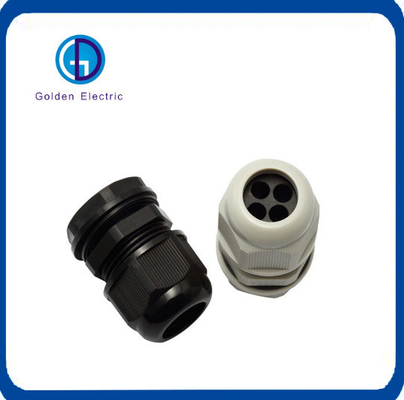

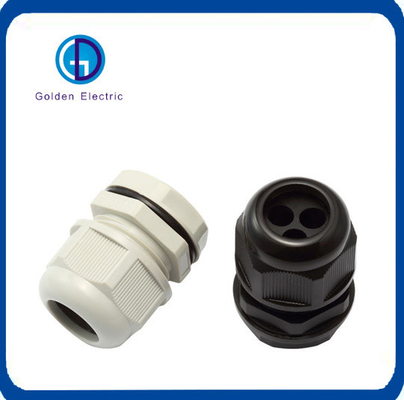

Greaseproof 3 Holes Nylon Cable Gland Thread Type With Different Sizes

Product Description

GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution

Product Name:	Multi-hole cable gland
Main material:	Nickel-plated brass
Standard size:	M / PG / NPT / G
Certification:	RoHS, CE, TUV, IP68, ISO9001
Notes:	Customization service is available

AG item	Flat (mm)	2 holes (mm)	3 holes (mm)	4 holes (mm)	5 hols (mm)	6 holes (mm)	7 holes (mm)	8 holes (mm)
M12x1.5	/	3-1.2	2.6-1.2	2.3-1	/	/	/	/
M16x1.5	/	4-1.6	2.6-1.2	2.3-1	2.5-1	2-1	/	/
M18x1.5	6x10	3.5-2	4-1.6	3-1.2	2.6-1.5	2.2-1	/	/
M20x1.5	5x11.5	5.3-1.5	5-2	4.2-1.7	3-1.2	3-1.2	3-1.2	3-1.2
M22x1.5	6x14	6-2.5	3.5-1.5	4.5-2	/	/	/	/
M25x1.5	6x14	8.7-4	8-4	5-2	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
M27x1.5	7x18	8.7-4.5	5-2	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
M32x1.5	8x22	5-10	10-5	9-4.5	8-4	7-3.5	6-3	/
PG7	/	3-1.2	2.6-1.2	2.3-1	/	/	/	/
PG9	/	4-1.6	2.6-1.2	2.3-1	2.5-1	2-1	/	/
PG11	6x10	3.5-2	4-1.6	3-1.2	2.6-1.5	2.2-1	/	/
PG13.5	5x11.5	5.3-1.5	3.5-1.5	4.2-1.7	4.2-1.7	/	/	/
PG16	6x14	6-2.5	3.5-1.5	4.5-2	/	/	/	/
PG21	7x18	8.7-4.5	5-2	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	/

Actually, it is also called explosion-proof cable sealing joint or cable explosion-proof gland, but the terms are different, and the products are all corresponding to each other. They are all introduced devices added to the cables, which play a role in waterproofing, explosion-proof, dustproof, fastening, and compressing the cables. We generally recommend using explosion-proof cable glands in harsh environments, such as dust stricken areas (such as wooden shoulders, flour factories, cigarette factories, polishing workshops, etc.) and corrosive environments (such as chemical enterprises, shipbuilding, chemical industries, etc.), And the places we come into daily contact with (gas stations, gas stations, gas stations, etc.).
Dangerous moments envelop our environmental safety, so we must strengthen our awareness of safety. We should not be greedy for cheap goods or have weak safety awareness, which can lead to big mistakes. We should always be vigilant and vigilant. Do not act recklessly based on small matters, do not act recklessly based on complexity, do not act blindly based on urgency, and do not be afraid of difficulties.

IP68 Waterproof Cable Connectors Surface Munted Waterproof Switch Socket

Waterproof Brass Cable Gland AD LED Indiactor Singnal Warning Light Lamp

Packaging Details : Common packing:Inner plastic bag+export carton box.
Customized packing:OEM lable, Inner box, plastic bag,etc, as per requirements.

Cable gland packing Details: Poly bag with label + Standard export carton with label.

Lead time:

Quantity(pieces)	1 - 10000	>10000
Lead time (days)	7	To be negotiated

3 Holes Greaseproof EPDM Rubber Seals Washer Multi-Wiring Insert M20 Cable Glands for Cable Protection System

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

Any more query please contact with us, thank you!
