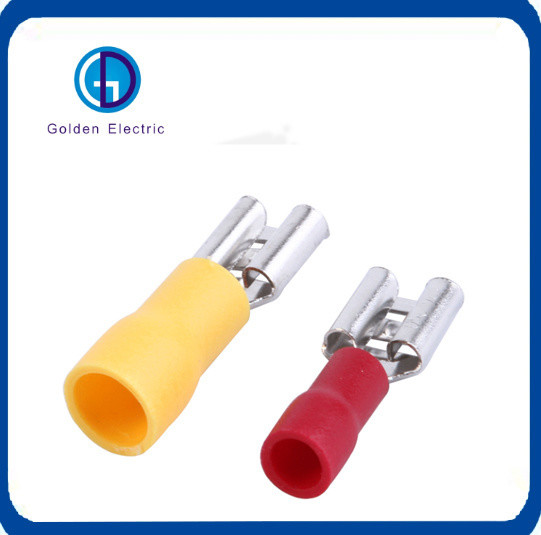

FDD1.25-250 Female Quick Disconnects Vinyl Insulated Crimp Female Disconnectors Terminal

GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.



The Insulated Terminal is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on, and it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit. The Insulated Terminals are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European, Americal and so on areas as well,they are quite enjoyed by clients.


PHOTO	ITEM NO.	MEMA TAB(MM)	THICKNESS OF MATERIAL(MM)	DIMENSION (MM)					COLOR	WIRE SECTION (MM²)	IMAX
				B	d	D	L	H
	FDD1.25-110(8)	0.8x2.8	0.3	3.8	1.7	3.8	19	10	RED	0.5-1.5	10A
	FDD1.25-187(8)	0.8x4.75	0.35	5.6	1.7	3.8	19
	FDD1.25-250	0.8x6.35	0.4	7.4	1.7	3.8	21
	FDD2-110(5)	0.5x2.8	0.3	3.8	2.3	4.3	19	10	BLUE	1.5~2.5	15A
	FDD2-110(8)	0.8x2.8	0.3	3.8	2.3	4.3	19
	FDD2-187(8)	0.8x4.75	0.35	5.6	2.3	4.3	19
	FDD2-250	0.8x6.35	0.4	7.4	2.3	4.3	21
	FDD5.5-250	0.5x6.35	0.4	7.4	3.4	5.7	25	14	YELLOW	4~6	24A

     Current Protector                                                                                PV Solar  Cable Crimoing Tool

        Mc4  Cable Connector                                                 Stainless Steel Meter Box /Double Door Distribution Box

Selling Units:  Single item


Single package size:  10X10X5 cm

Single gross weight:  1.000 kg

Package Type: 100 pcs/bag,and then put in box.
                         40000 pcs/carton Standard export packing

Lead time:

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.


                                                   Any more query please contact with us, thank you!
