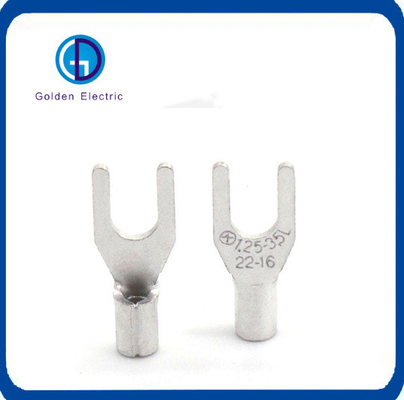

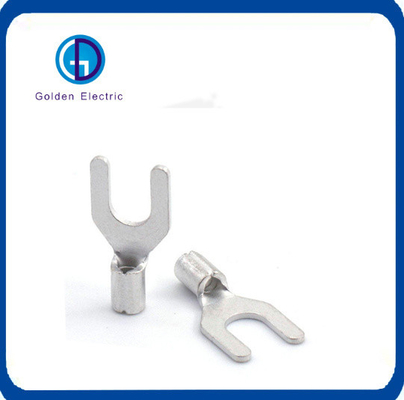

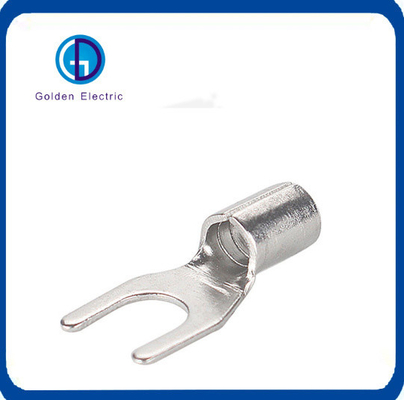

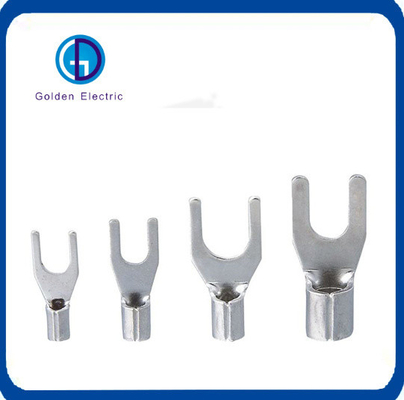

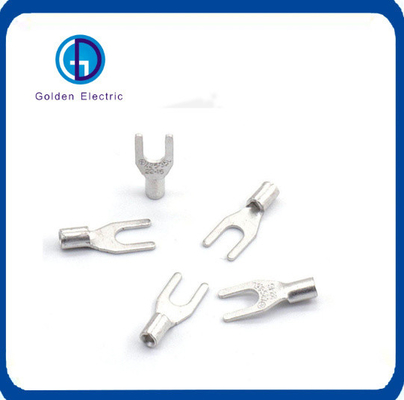

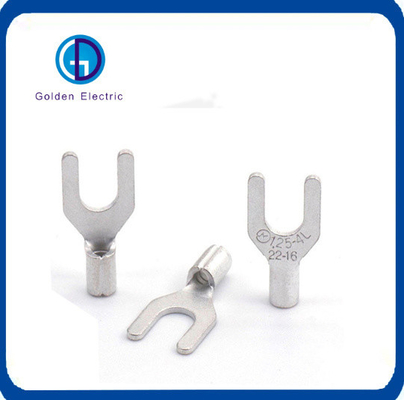

Product Description
The Insulated Terminal is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on, and it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit. The Insulated Terminals are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European, Americal and so on areas as well,they are quite enjoyed by clients.
Product size
| ITEM NO | Cable Size mm²
A.W.G | Thickness(mm) | Max Current | USA Screw | Screw Dia d²(mm) | Dimension (mm) |
| W | L | F | E | DΦ | dΦ |
| SNB 0.5-3 | 0.2-0.75
(24-18) | 0.5 | 10A | #4 | 3.2 | 5.7 | 14.2 | 5.1 | 4.3 | 2.3 | 1.3 |
| SNB 0.5-4 | #8 | 4.3 | 6.4 | 14.2 | 5.3 |
| SNB 1.25-3 | 0.5-1.5
(22-16) | 0.8 | 19A | #4 | 3.2 | 5.7 | 16 | 6.5 | 5 | 3.4 | 1.7 |
| SNB 1.25-3.7S | #6 | 3.7 | 5.7 | 16 | 6.5 |
| SNB 1.25-3.7L | #6 | 3.7 | 6.4 | 16 | 6.5 |
| SNB 1.25-4S | #8 | 4.3 | 6.4 | 16 | 6.2 |
| SNB 1.25-4M | #8 | 4.3 | 7.2 | 16 | 6.5 |
| SNB 1.5-4L | #8 | 4.3 | 8.1 | 16 | 6.5 |
| SNB 1.25-5S | #10 | 5.3 | 8.1 | 16 | 6.2 |
| SNB 1.25-5L | #10 | 5.3 | 9.6 | 16 | 6.5 |
| SNB 1.25-6S | 1/4 | 6.4 | 9.6 | 16 | 6.5 |
| SNB 1.25-6L | 1/4 | 6.4 | 12 | 22 | 11 |
| SNB 2-3 | 1.5-2.5
(16-14) | 0.8 | 27A | #4 | 3.2 | 5.7 | 16 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNB 2-3.7S | #6 | 3.7 | 5.7 | 16 | 6.5 |
| SNB 2-3.7L | #6 | 3.7 | 6 | 16 | 6 |
| SNB 2-4S | #8 | 4.3 | 6.6 | 16 | 6 |
| SNB 2-4M | #8 | 4.3 | 7.3 | 16 | 6.5 |
| SNB 2-4L | #8 | 4.3 | 8.1 | 16 | 6 |
| SNB 2-5S | #10 | 5.3 | 8.1 | 16 | 6.5 |
| SNB 2-5L | #10 | 5.3 | 9.5 | 16 | 6.5 |
| SNB 2-6S | 1/4 | 6.4 | 9.5 | 16 | 6.5 |
| SNB 2-6L | 1/4 | 6.4 | 12 | 22 | 11 |
Products Category
Mc4 3 in 1 out Connector Stainless Steel Doudoor -Door Meter Box Distribution Box
Over Under Adjustable Single Phase Voltage Bus Bar Insulation Standoff Composite Insulator
Packing & Delivery
Packaging Details: Product Name: Non-Insulated Spade Terminal
Size:10*10*10
Weight:1 kg
Lead time:
| Quantity(pieces) | 1 - 1 | >1 |
| Lead time (days) | 15 | To be negotiated |
