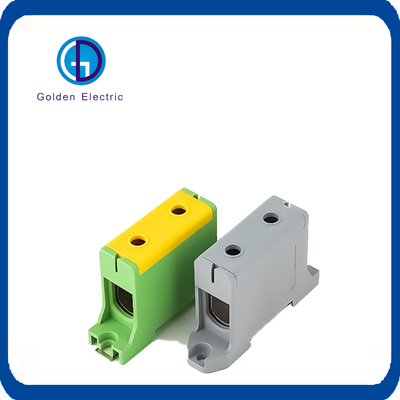

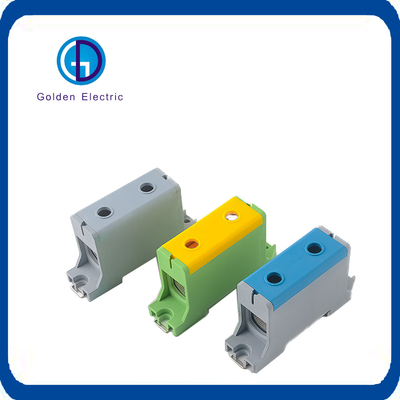

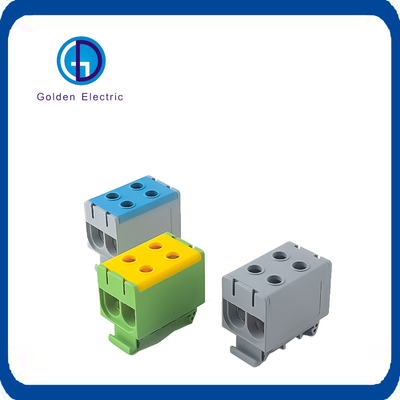

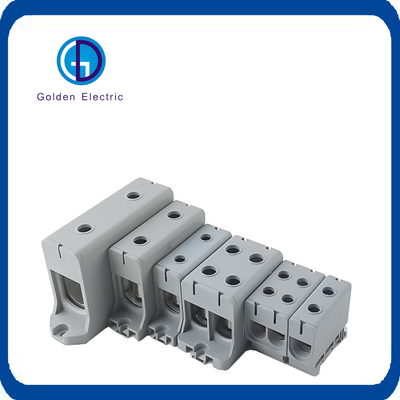

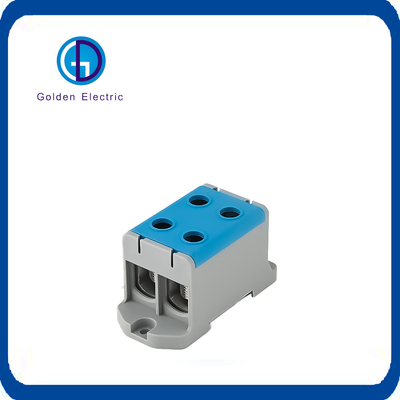

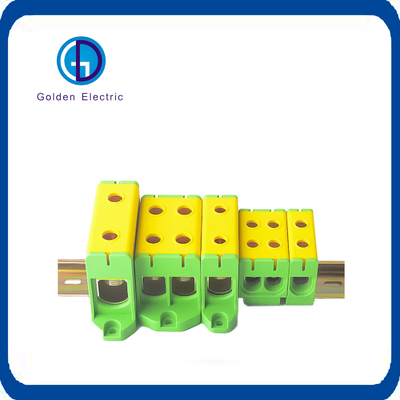

High Current 2p/4p Terminal Block for Power Distribution DIN Rail Mounting 750V 800V

1
MOQ
High Current 2p/4p Terminal Block for Power Distribution DIN Rail Mounting 750V 800V
Features Gallery Product Description Request A Quote
Features
Specifications
Conductor Size: 21 - 30 AWG
Color: Green/Yellow,or Grey,or OEM Color
Rated Current /Voltage: Cu:245A / 800V Al:220A / 800V
Number Of Contacts: 1-10
Type: Power Distribution
Wiring Type: DIN Rail Mounting
Usage: Wire Connector
Stripping Length: 10-12mm
Operating Temperature: -40ºC To +105ºC
Transport Package: Standard Export Carton
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 8536909000
Supply Ability: 5000000PCS/Month
Material: Cu/Al
Application: Conduct Electricity
Character: Insulation, Environmental Protection
Species: Terminal
Shape: Square
Certification: BS, RoHS,CE
Samples: US$ 1.5/Piece 1 Piece(Min.Order) | Request Sa
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description






High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
T5 SERIES JUNCTION BOX
Technical Specification
Conductor Cross-section(mm) Cu:2.5~240mm2 Al:6~240mm Condutor(AWG):1/0-6 Housing:Polyamide
Mounting:Din railand screw Screw:Hexagon,5mm
OperatingTemperature(ºC):-40ºC~+85ºC


Product Parameters


High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
Product Code Color Conductor
Cross-section(mm2)		 Voltage Current(Amp)
GDT5-50-PE Yellow/Green Cu:2.5-50mm2
Al:6-50mm2		 800V Cu160A
Al145A
GDT5-50-GY Grey
GDT5-50-BE Blue/Grey
Product Code Color Conductor
Cross-section(mm2)		 Voltage Current(Amp)
GDT5-50/2-PE Yellow/Green Cu:2.5-50mm2
Al:6-50mm2		 800V Cu160A
Al145A
GDT5-50/2-GY Grey
GDT5-50/2-BE Blue/Grey
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
Product Code Color Conductor
Cross-section(mm2)		 Voltage Current(Amp)
GDT5-95-PE Yellow/Green 16-95mm 800V Cu245A
Al220A
GDT5-95-GY Grey
GDT5-95-GY Blue/Grey
Product Code Color Conductor
Cross-section(mm2)		 Voltage Current(Amp)
GDT5-95/2-PE Yellow/Green 16-95mm2
 		 800V Cu245A
Al220A
GDT5-95/2-GY Grey
GDT5-95/2-GY Blue/Grey
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
Product Code Color Conductor
Cross-section(mm2)		 Voltage Current(Amp)
GDT5-150-PE Yellow/Green 35-150mm2
 		 800V Cu320A
Al290A
GDT5-150-GY Grey
GDT5-150-GY Blue/Grey
Product Code Color Conductor
Cross-section(mm2)		 Voltage Current(Amp)
GDT5-240-PE Yellow/Green 35-240mm2 800V Cu 425A
Al 380A
GDT5-240-GY Grey
GDT5-240-GY Blue/Grey
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block


Company Profile



 - Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland,cable tie ,isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

   - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

    - Golden is always striving hard to provide the best services and competitive price to all customers.
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block


Main Product

High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block


Packaging & Shipping

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
packing can be supplied according customers request.
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment
High Current 2p/4p Power Distribution DIN Rail Mounted 750V 800V Terminal Connector Electrical Terminal Block

FAQ

1. Could i put my own logo on it?
> Sure, of course,we have over 18 years OEM experience,customers' logo can be made by laser, engraved, embossed, transfer printing etc.

2. Should i pay extra for logo printing ?
> If you order amount over out MOQ for OEM package,all OEM fees would be free,if you want to make a trial order,we need to charge a very little fees for the printing and cartons.

3. How about the quality?
We import DU POND brand PA66 nylon raw material from USA,we make sure good quality from the most important factor.
> Acquire the CE & FDA Certification.
> 100% QC in produce process and before package.

4. Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.

5. How much for 1pc sample ?
> we will send 1 bag for free

6. If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.

7. How long to make a sample?
> 3days which depends on the samples' complexity.
