110V AC Industial Ventilation Exhaust Fan High Flexibility With Autorestart

1
MOQ
110V AC Industial Ventilation Exhaust Fan High Flexibility With Autorestart
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: For Experiment, For Air Conditioner, For Manufactu
Flow Direction: Centrifugal
Voltage: 110V/120V 220V/240V 380V
Noise: 42~45dba/Customization
Size: 120X120X38mm(4.72"X4.72"X1.49")
Bearing Type: Sleeve Or Ball
Current: 0.07~0.30A/Customization
Weight: 470g
Pressure: Customization
Color: Black
Function: Fg/PWM/Autorestart/Rd.etc
Feature: Large Air Flow, Lower Noise, Long Lifetime
Transport Package: Standard Export Package
Specification: According To Customer Demand
Trademark: Golden Or Netural Or Customer Brand
Origin: China
HS Code: 8414599050
Supply Ability: 50000PCS/Month
Material: Plastic
Blade Material: Plastic
Type: Axial Fan
Electric Current Type: AC
Mounting: Free Standing
Certification: RoHS, UR, ISO, CE, CCC
Samples: US$ 2/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Highlight:

Industial Ventilation Exhaust Fan

,

AC Ventilation Exhaust Fan

,

110V Ac Axial Cooling Fan
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

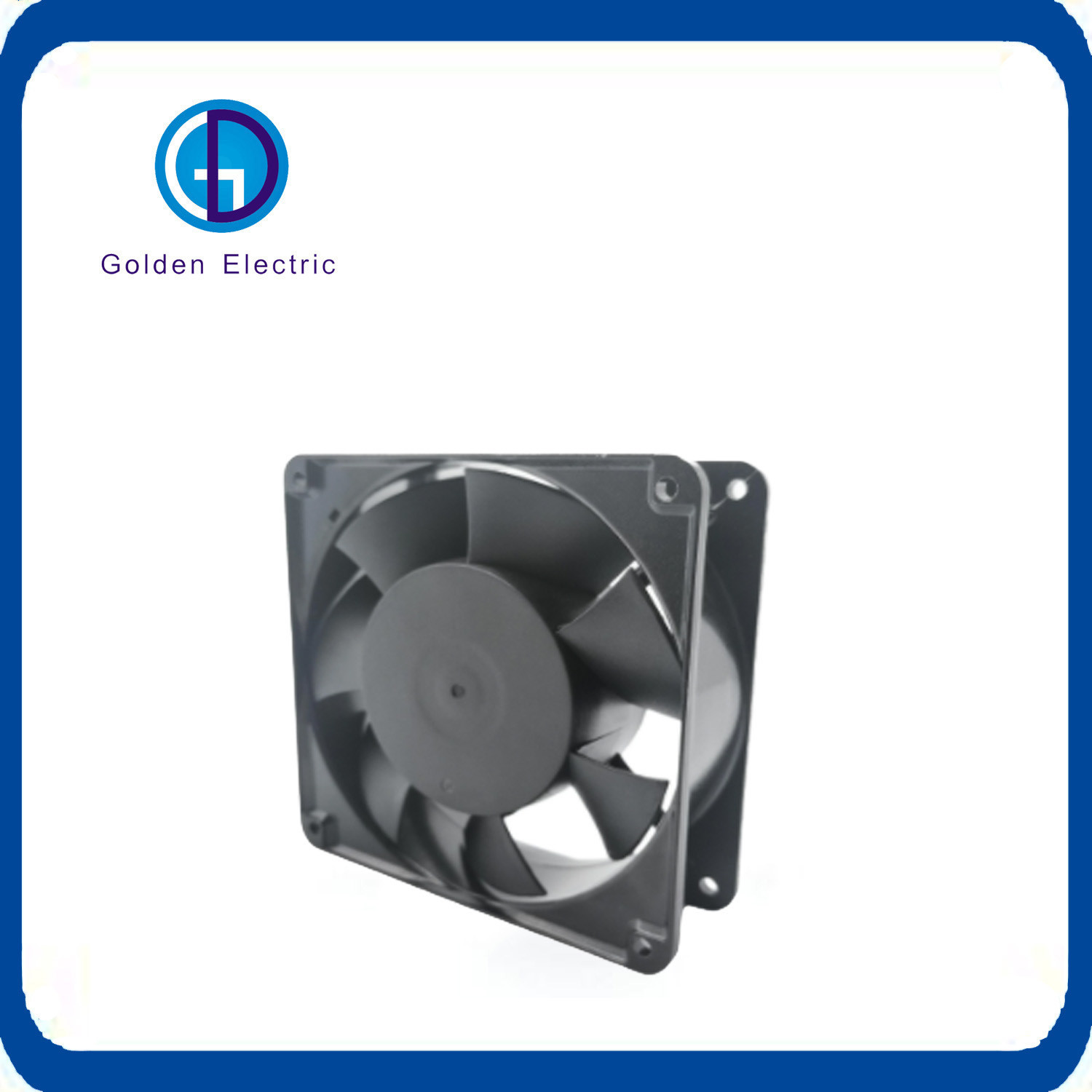

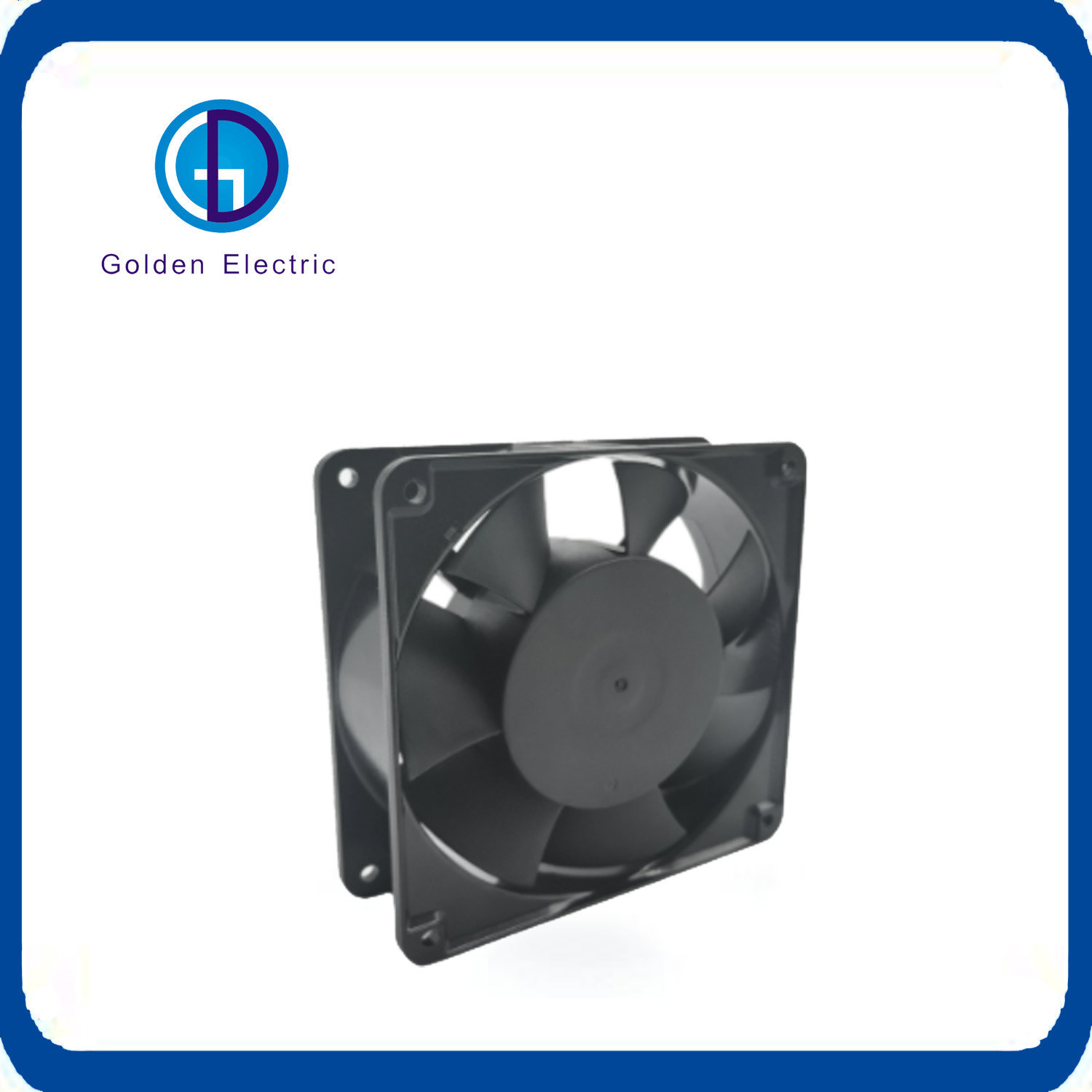

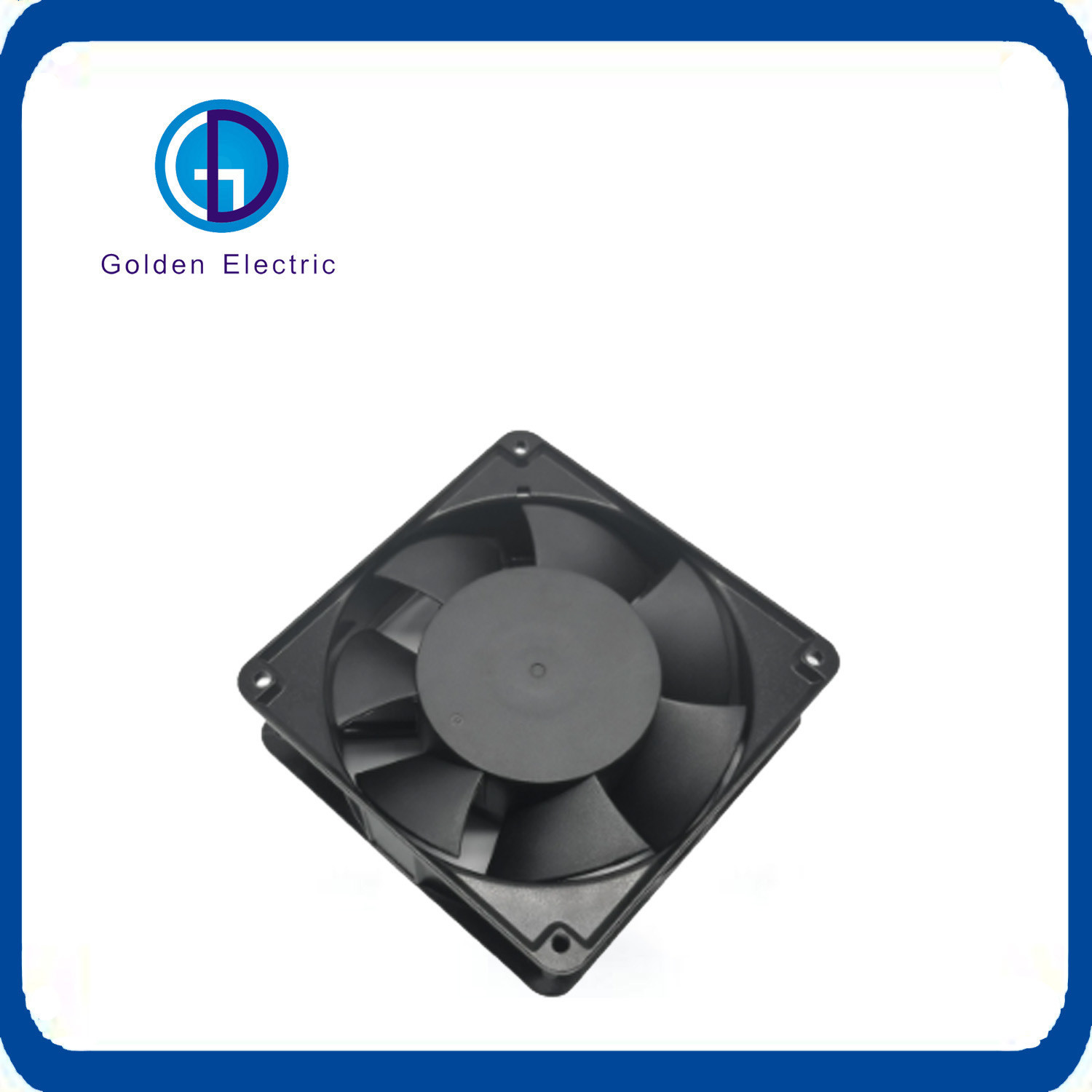

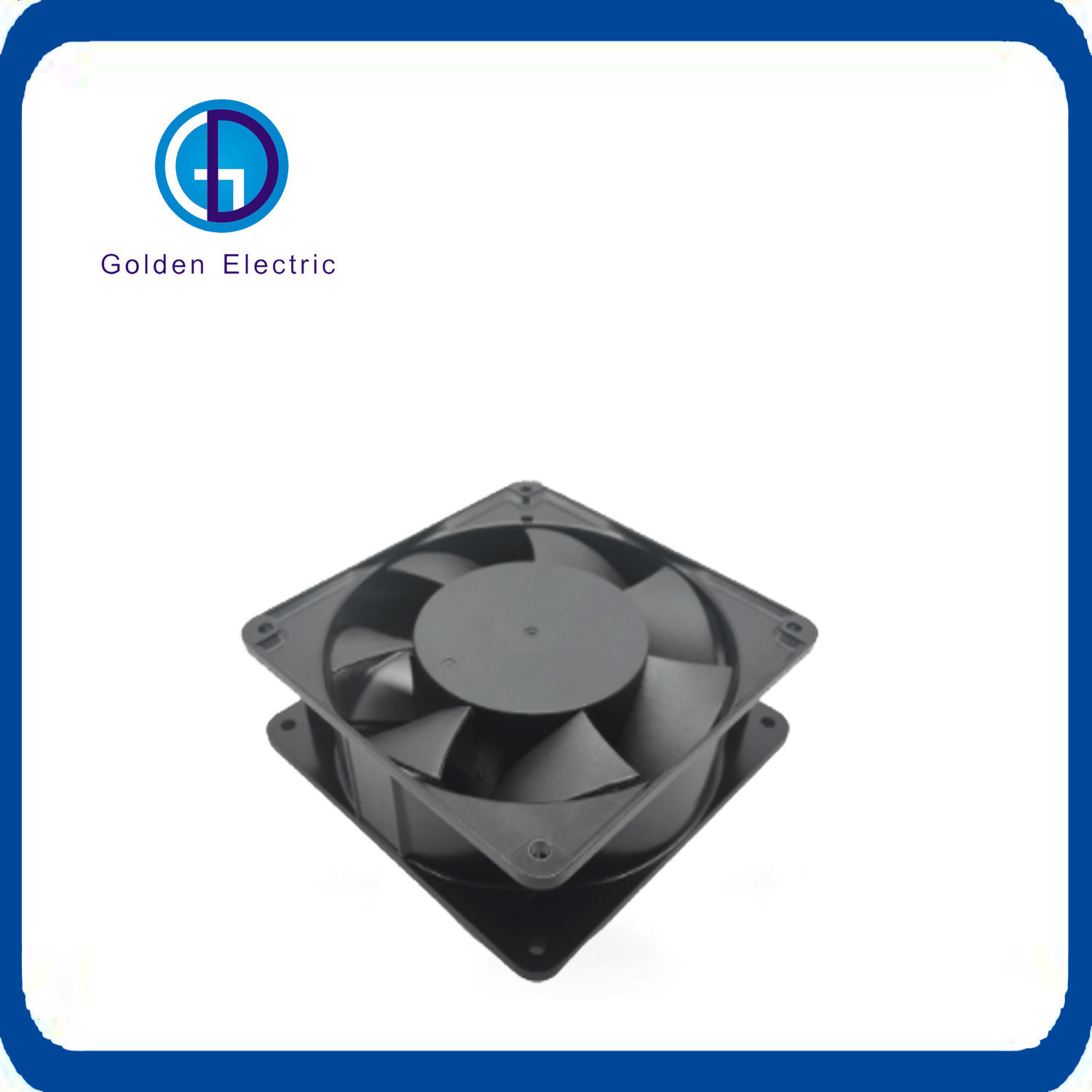

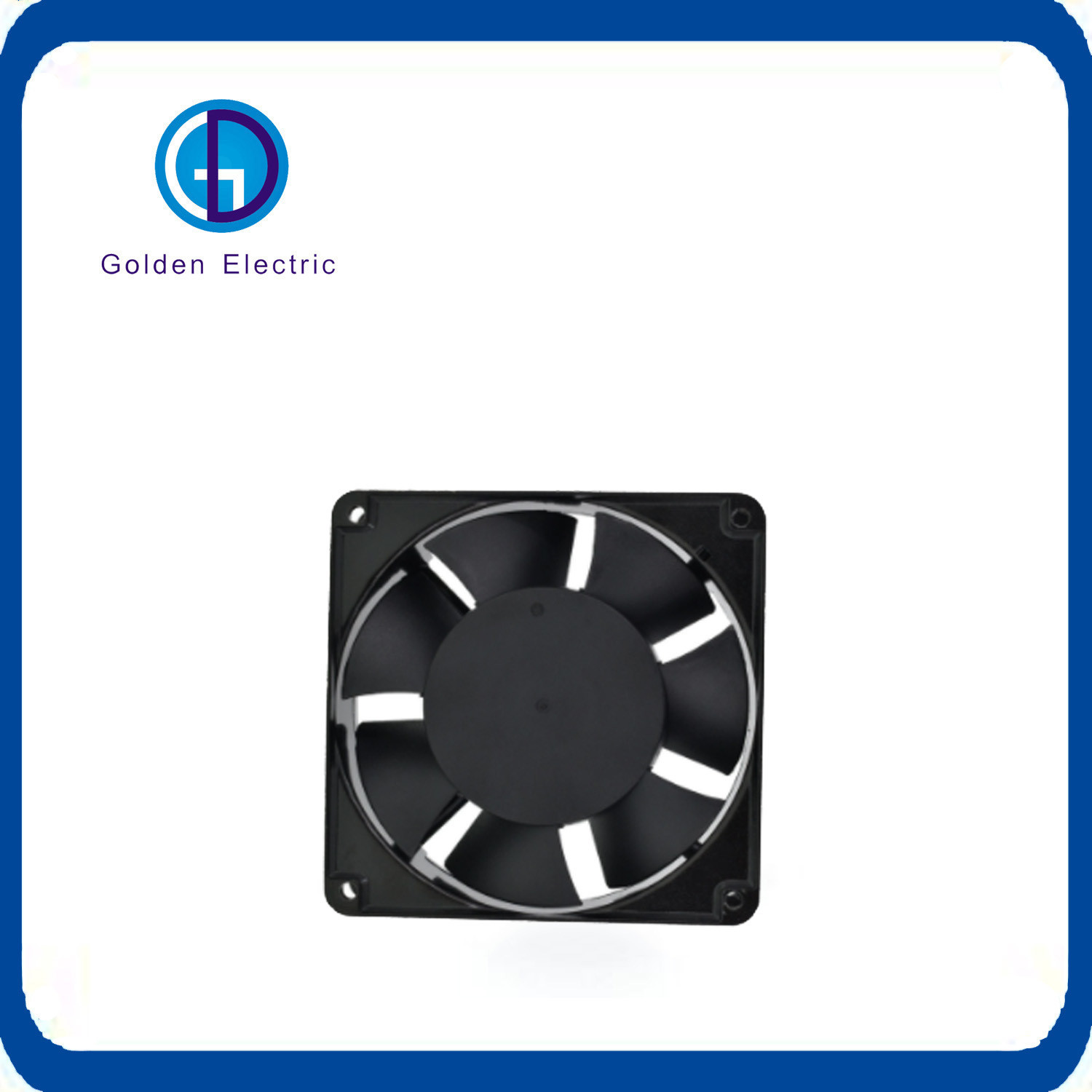

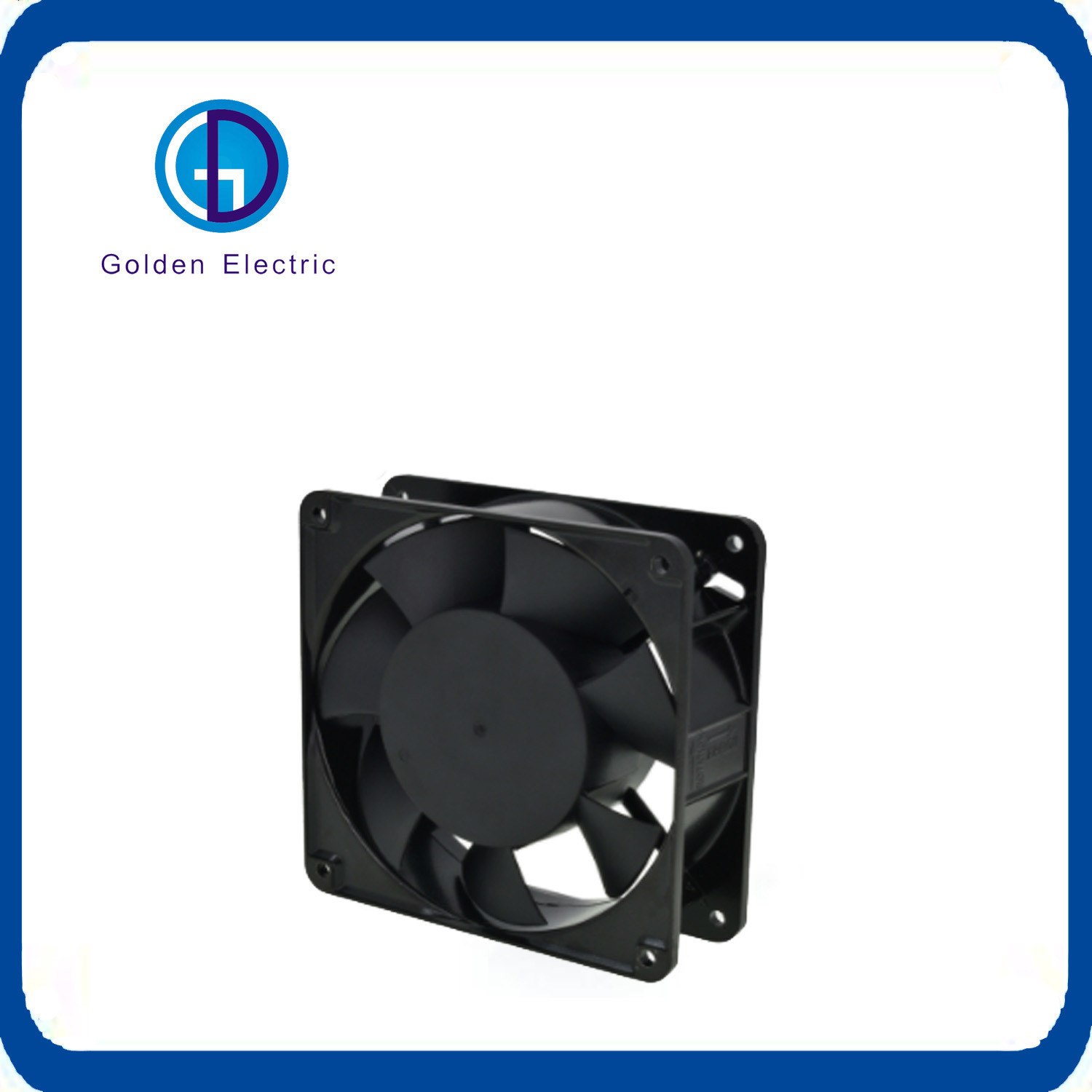

AC AXIAL FAN 120x120x38mm(4.72"x4.72"x1.49")

110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan
General Specification:
Frame:Aluminum Alloy
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing




Motor Protection:
1.  Impedance Protected
2.  Reverse Polarity Protected

Application:
110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan


110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan

Product Parameters

 110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan
Model No. Bearing  Type  Voltage
 (V)		 Speed Type Speed (RPM) Current
(A)		 AirFlow (CFM) Pressure (mmAq) Noise
(dBA)		 Weight
(g)
A12038B S/D 110/60Hz H 2500 0.14 74.98 5.40 45 470
M 2000 0.17 63.95 3.70 42
220/50Hz H 2500 0.13 74.98 5.40 45
M 2000 0.06 63.95 3.70 42

110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan
More Models
Type Model Size Type Model Size
AC Axial Fan A08025 80x80x25mm(3.15"x3.15"x0.98") AC Axial Fan A13538 135x135x38mm(5.31"x5.31"x1.49")
A09225 92x92x25mm(3.62"x3.62"x0.98") A15050 150x150x50mm(5.90"x5.90"x1.97")
A11025 110x110x25mm(4.33"x4.33"x0.98") A17051A 170x150x51mm(6.69"x5.90"x2.0")
A12025A 120x120x25mm(4.72"x4.72"x0.98") A17051B
A12025B A18060 180x180x60mm(7.08"x7.08"x2.36")
A12038A 120x120x38mm(4.72"x4.72"x1.49") A20060 200x200x60mm(7.87"x7.87"x2.36")
A12038B A22060 220x220x60mm(8.65"x8.65"x2.36")
More Style
110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan
110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan
110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan


Packaging & Shipping

110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan
Packaging Details:
Packing can be supplied according customers request.

Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Detail:
Shipped in 7 days after payment



Company Profile

- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product and so on.

  - Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

   - Golden is always striving hard to provide the best services and competitive price to all customers.
110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan

110V/220V AC Industial Ventilation Exhaust Coil Cooling Air Flow Axial Fan

FAQ

1. Are you trading company or manufacturer ?
We are solar system manufacturer,Our cumulative installed capacity reached 5GW+.
2.Can you supply samples for checking ?
Yes, we can supply free samples for all client.
3.How long is your delivery time?
A1)For Sample: 1-2Days ; A2)For small Orders: 3-5Days; A3)For mass Orders:7-10Days; Anyway, It depend on order qty and payment time.
4.Do you accept OEM business?
We accept OEM with your authorization.
5.How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6. what kind of certificate you have ?
We have CE, CB,TÜV,SAA etc.
7.What is the service offered by company?
We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.
