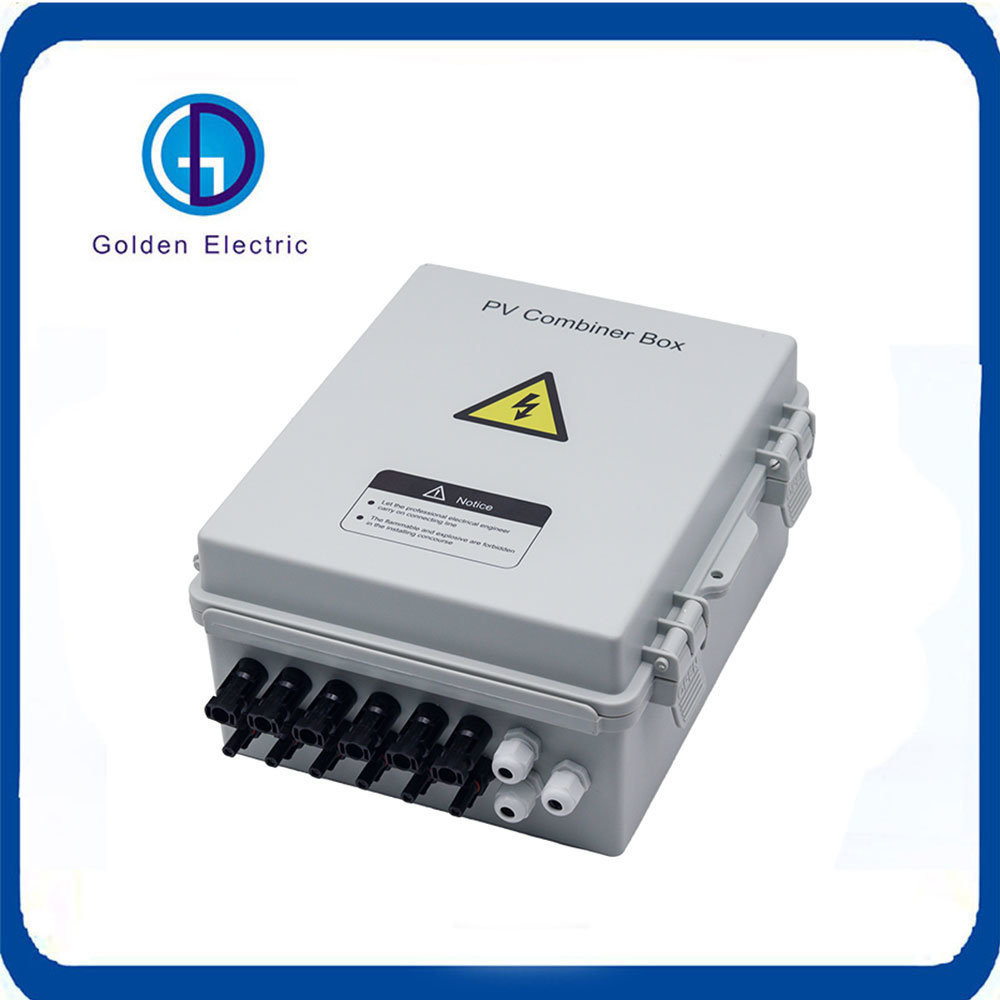

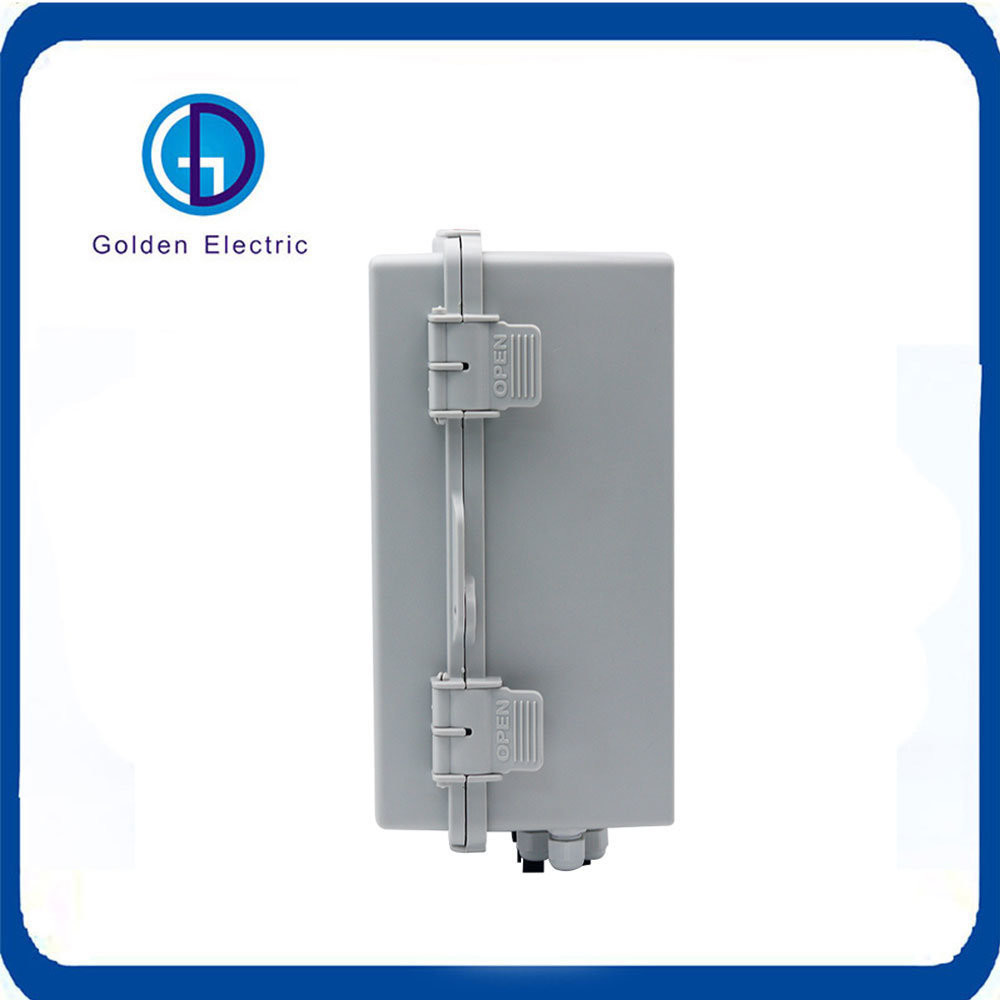

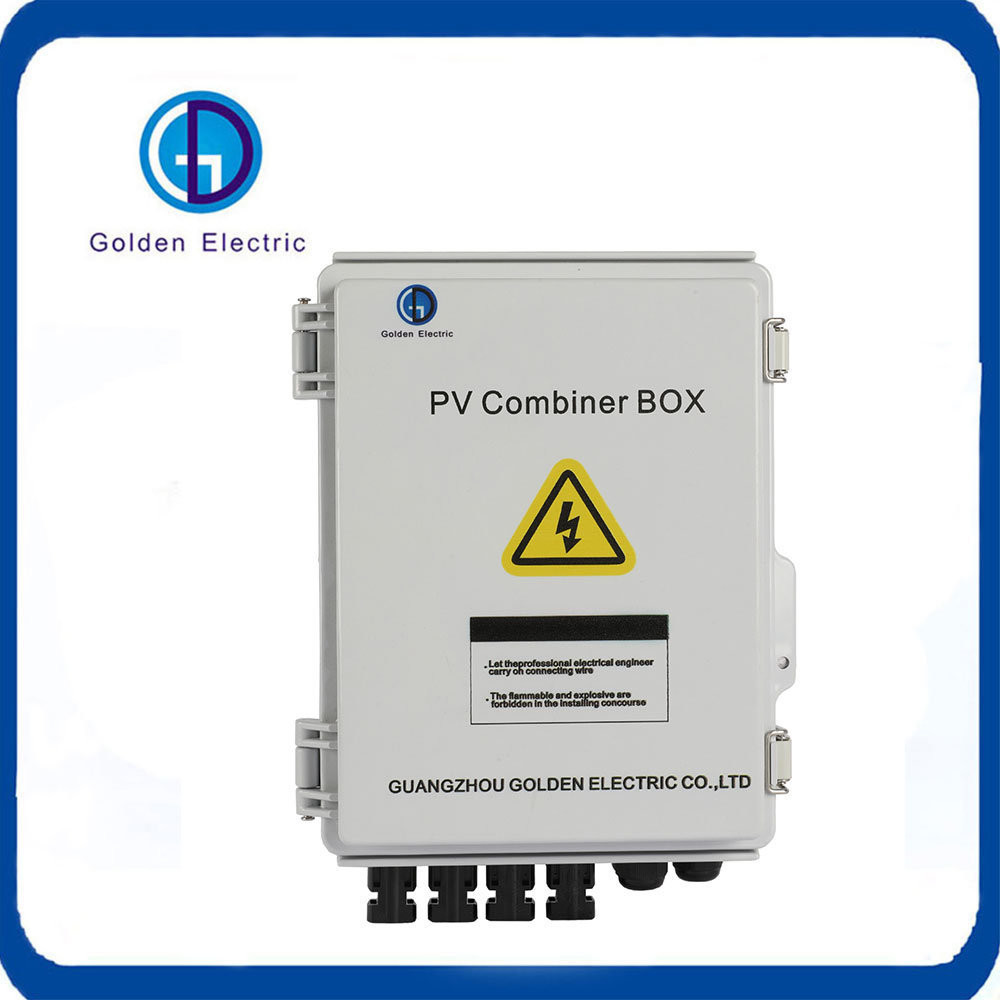

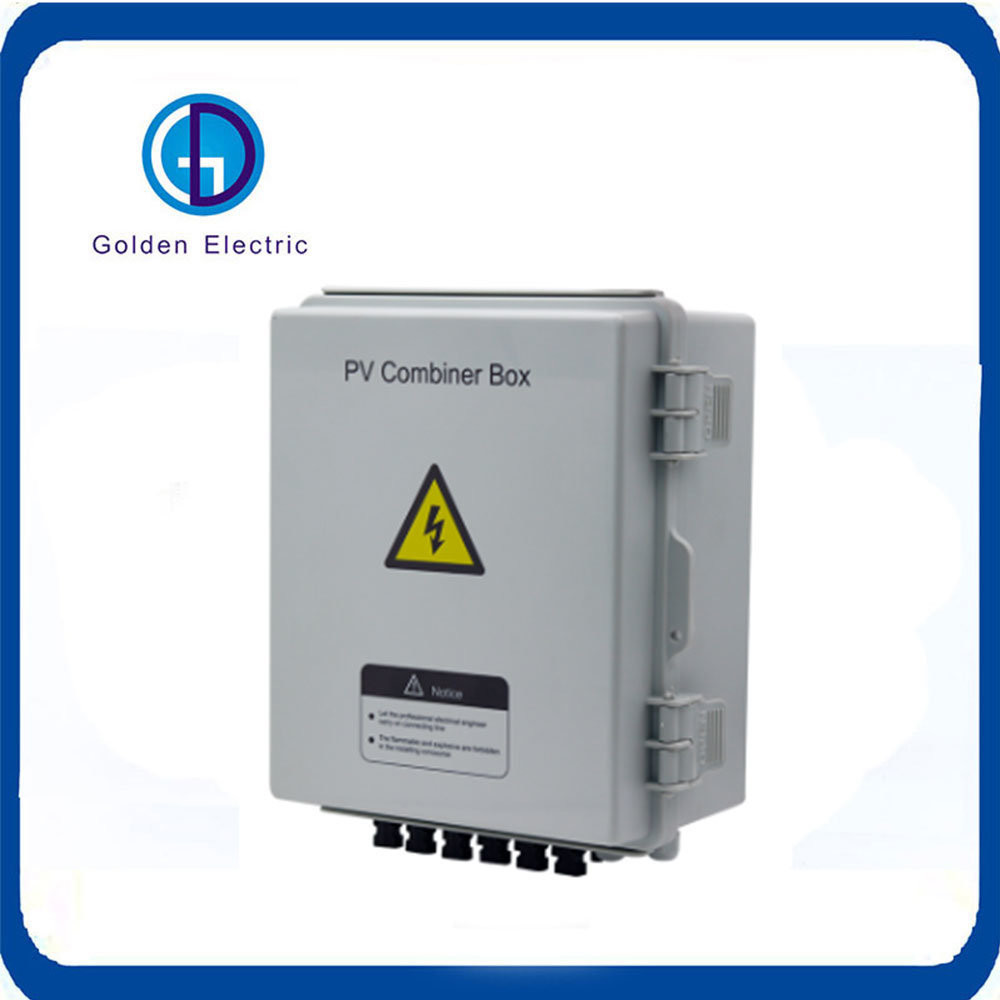

Plastic Solar PV Combiner Box 2/3/4 input 1 output DC500V DC1000V

1
MOQ
USD25-USD100
Price
Plastic Solar PV Combiner Box 2/3/4 input 1 output DC500V DC1000V
Features Gallery Product Description Request A Quote
Features
Specifications
Shell Material: Plastic
Shell Protection Grade: IP65
Brand: Golden Electric /OEM
Strings: 6
Maximum DC Voltage Input: DC 1000V
Voltage Protection Level: 2.8kv/3.8kv
Nominal Discharge Current: 20ka
Maximum Discharge Current: 40ka
Rated Voltage: DC550V / DV1000V
Installation Method: Wall Mounting Type
Material: PC/ABS
Product Name: Plastic PV Combiner Box
Transport Package: Export Standard Packing
Specification: 1/2/3/4/5/6 Strings.
Trademark: Golden Or Netural, Or Customer Brand
Origin: China
HS Code: 8537109090
Supply Ability: 50000PCS/Years
Type: Solar PV Combiner Box
Structure: Protection
Certification: ISO9001:2000, VDE, CCC
Form: All- Packaged Type
Operation Voltage: Low Voltage
Application Range: Solar Panels System
Customization: Available | Customized Request
Highlight:

Metal Solar PV Combiner Box

,

DC1000V Solar PV Combiner Box

,

DC1000V Solar Panel Combiner Box
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Model Number: GD-PV02
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description:

GD-PV2/1 combiner box is suitable for inverter (MAX input voltage DC550V/DC1000V,2PV input channel, 1 output channel, single MPPT inverter). Box body is made of PVC engineering materials,with test for fire retardant, Temperture rise,anti impact, anti ultraviolet, and other testing. IP65 protection grade.


Design and configuration strictly accordance with the "Technical specification for photo-voltaic junction equipment'' CGC/GF 037:2014.

Provide users with a safe, brief, beautiful and applicable photo-voltaic system products.

Product Parameters:

System maximum dc voltage
550/1000
Maximum input strings
4
Maximum input current for each string
15A
Maximum output switch current
20A/32A
Number of inverter MPPT
1
Number of output strings
1
Nominal discharge current
20KA
Maximum discharge current
40KA
Voltage protection level
    2.8KV/3.8KV
Maximum continuous operating voltage Uc
630V/1050V
SMC4 Connectors/dc fuse/dc surge protector
Standard
Monitoring module/Preventing diode
Optional
Box material
PC/ABS
Installation method
Wall mounting type
Operating Temperature
-25ºC--+55ºC
Permissible relative humidity
0-95%, no condensation

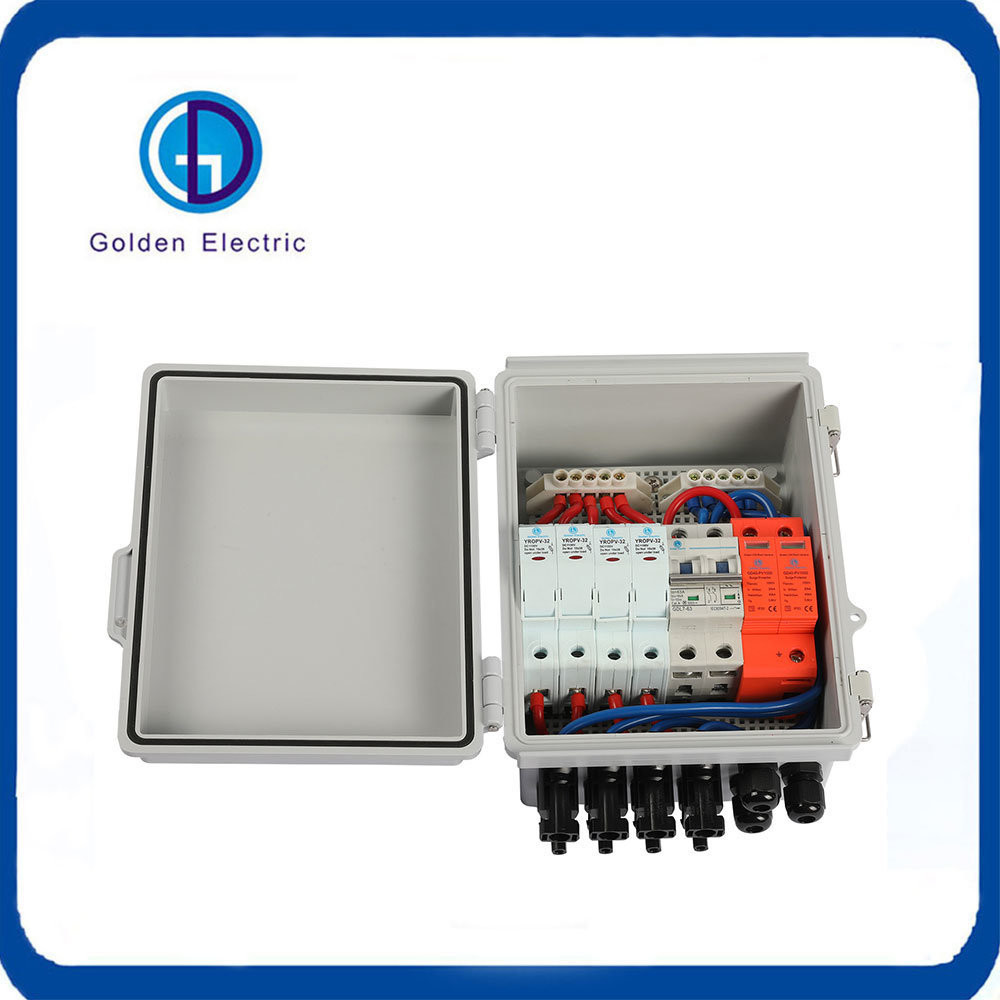

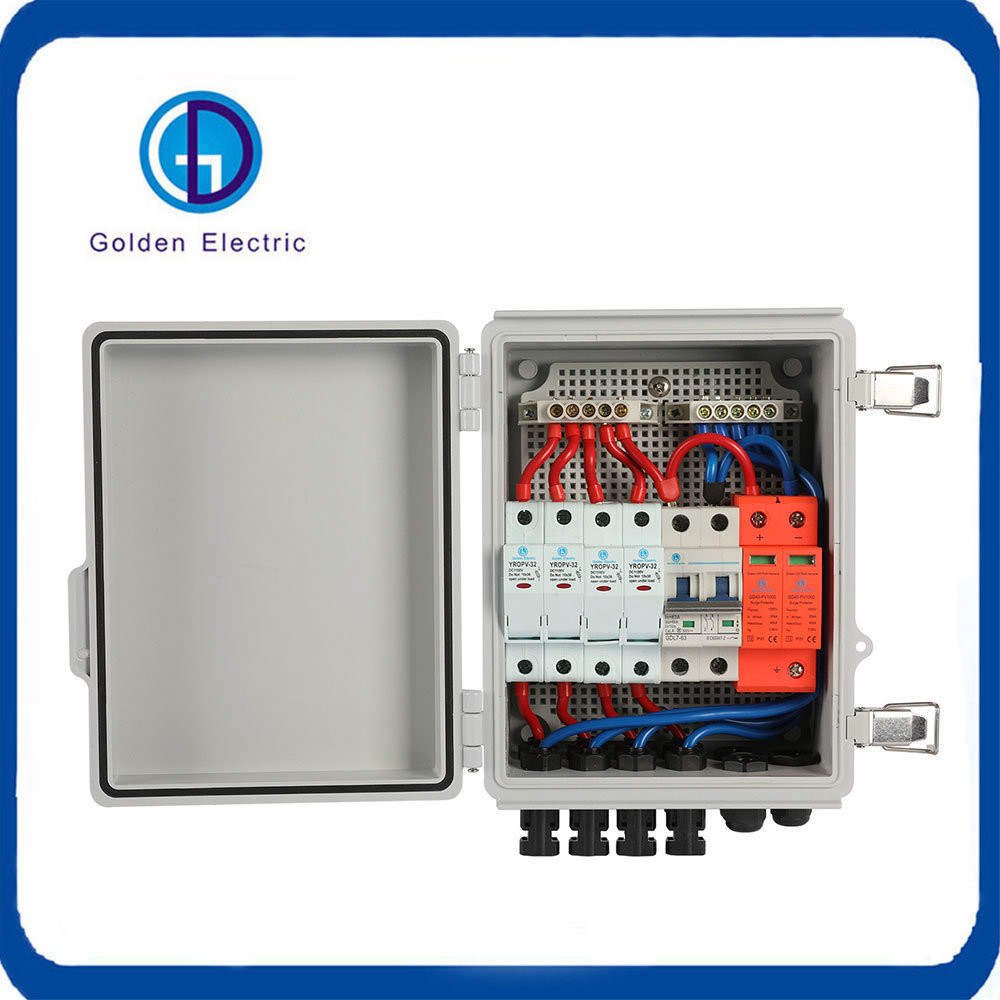

Product Details Show:

High Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power DistributionHigh Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power Distribution
High Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power DistributionHigh Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power DistributionHigh Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power DistributionHigh Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power DistributionHigh Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power Distribution



Packing:

High Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power Distribution

High Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power Distribution


You May Like:

High Quality Plastic or Metal Type PV Solar Plastic Combiner Box PV Enclosure Combiner Box with Power Distribution

FAQ:


1) Q:How can i trust your company?
    A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

2) Q:Your products?
     A: Golden electric is factory for Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.



3) Q: After Sales Service?

     A: We will provide the best After-sales Service



4) Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order.

5)  Q: Your address ?
      A: Locates in Guangzhou province, China,welcome to visit us


6) Q:What's your contact information ?



Send your Inquiry Details in the Below, Click "send" Now!! We will do our best to give you a perfect service.
