Features

Specifications

Model NO.: FMPV32-NL1

Grounding: Un Grounded

Run: Plug-In

Switching Mode: Single Throw-in

Structure Of Operating: Manual

Brand: Golden Electric /OEM

Product Name: DC Isolator Switch

Suitable Environment: Outdoor / Indoor

Rated Current: 16A, 25A, 32A

Installation Method: Rail Mounting Inside The Distribution Box

Ambient Temperature: -5 To +40 Degree Celsius

Rated Voltage: 1200V

Opening Method: Handle 90° Rotary Switch

Product Number: Fmpv-16/25/32-Nl1

Function: Isolator, Control

Pole: 2p/4p

Transport Package: Standard Export Package

Specification: 2P/4P

Trademark: Golden Or Netural, Or Customer Brand

Origin: China

HS Code: 8536500000

Supply Ability: 20000PCS/Month

Type: Low-voltage

Installation: Outdoor High-voltage

Operation: Manual

Grounding Mode: Not Grounding

Movement Mode: Plug-in Type

Number Of Poles: Unipolar

Customization: Available | Customized Request

Basic Infomation

Place of Origin: China

Brand Name: Golden Electric /OEM

Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Carton/Pallet

Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms: LC, T/T, PayPal, Western Union

Supply Ability: 5000/Month

Gallery

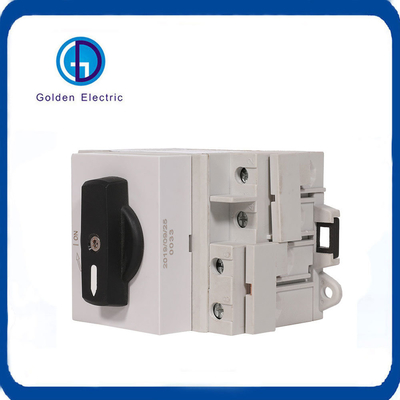

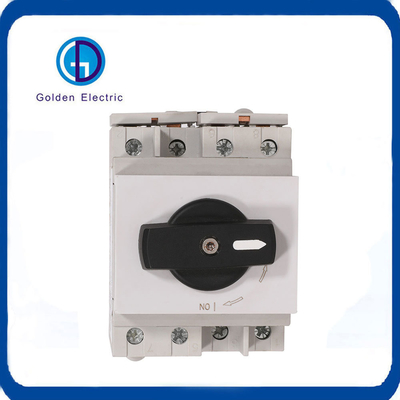

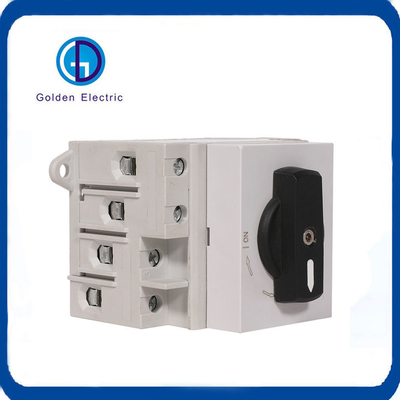

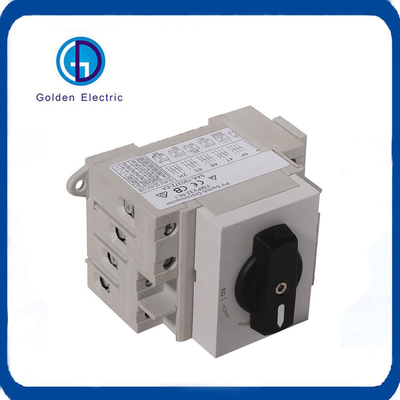

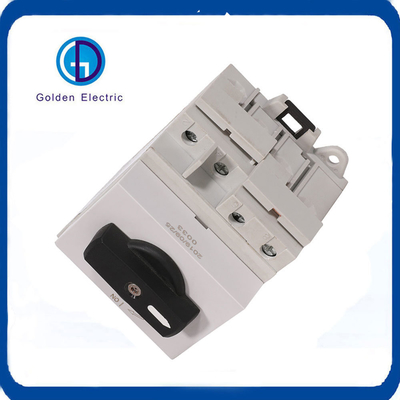

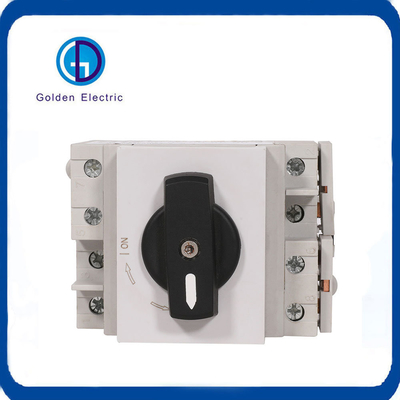

Solar PV Disconnector Switch DC1200V 4P 32A DIN Rail Mounted for Photovoltaic System

Product Description

Our FMPV32-NL1 Series DC changeover switch have been specifically designed to switch Direct Current (DC) at voltages up to 1000v. Their robust design and ability to switch such voltages at reated current , mean that they are ideally suited to to be used in the switching of Photovoltaic (PV) systems . All photovoltaic installations must have a DC switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC .

1.IP20 Protection Level

2.Din rail mounted

3.Switch body for 4P CB4N or CB8N

4.2 Pole,4 Poles are viable(Single l Double String)

5.Standard: IEC60947-3,AS60947.3

6.DC-PV2,DC-PV1,DC-21B

7.16A, 25A, 32A,1200V DC

Electrical Characteristics
Type	FMPV16-NL1, FMPV25-NL1, FMPV32-NL1
Function	Isolator, control
Standard	IEC60947-3, AS60947.3
Utilization category	DC-PV2 / DC-PV1 / DC-21B
Pole	4P
Rated frequency	DC
Rated operational voltage(Ue)	300V, 600V, 800V, 1000V, 1200V
Rated operational current(I_e)	See the next page
Rated insulation voltage(Ui)	1200V
Conventional free air thermal current(I_th)	/
Conventional enclosed thermal current(Ithe)	Same as Ie
Rated short-time withstand current(I_cw)	1kA, 1s
Rated impulsed withstand voltage(Uimp)	8.0kV
Overvoltage category	II
Suitability for isolation	Yes
Polarity	No polarity, "+" and "-" polarities could be interchanged.
Service Life / Cycle Operation
Mechanical	18000
Electrical	2000
Installation Environment
Ingress protection, enclosure	IP20
Storage temperature	-40ºC ~ +85ºC
Mounting Type	Vertically or horizontally
Pollution degree	3
Suitable environment	Outdoor / Indoor

Solar PV Disconnector Switch DC1200V 4p 32A DIN Rail Mounted DC Isolator Switch Disconnector Used for Photovoltaic System

Dimension

Solar PV Disconnector Switch DC1200V 4p 32A DIN Rail Mounted DC Isolator Switch Disconnector Used for Photovoltaic System

- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional for make AC and DC electric items such as cable gland, isolator switch , fuse , circuit breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Solar product etc.

- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.

- Golden is always striving hard to provide the best services and competitive price to all customers.

1) Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

2) Q:Your products?
A: Golden electric is factory for Isolator Switch,Automatic transfer switch,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.

3) Q: After Sales Service?

A: We will provide the best After-sales Service

4) Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order.

5)  Q: Your address ?
      A: Locates in Guangzhou province, China,welcome to visit us

6) Q:What's your contact information ?

Send your Inquiry Details in the Below, Click "send" Now!! We will do our best to give you a perfect service.
