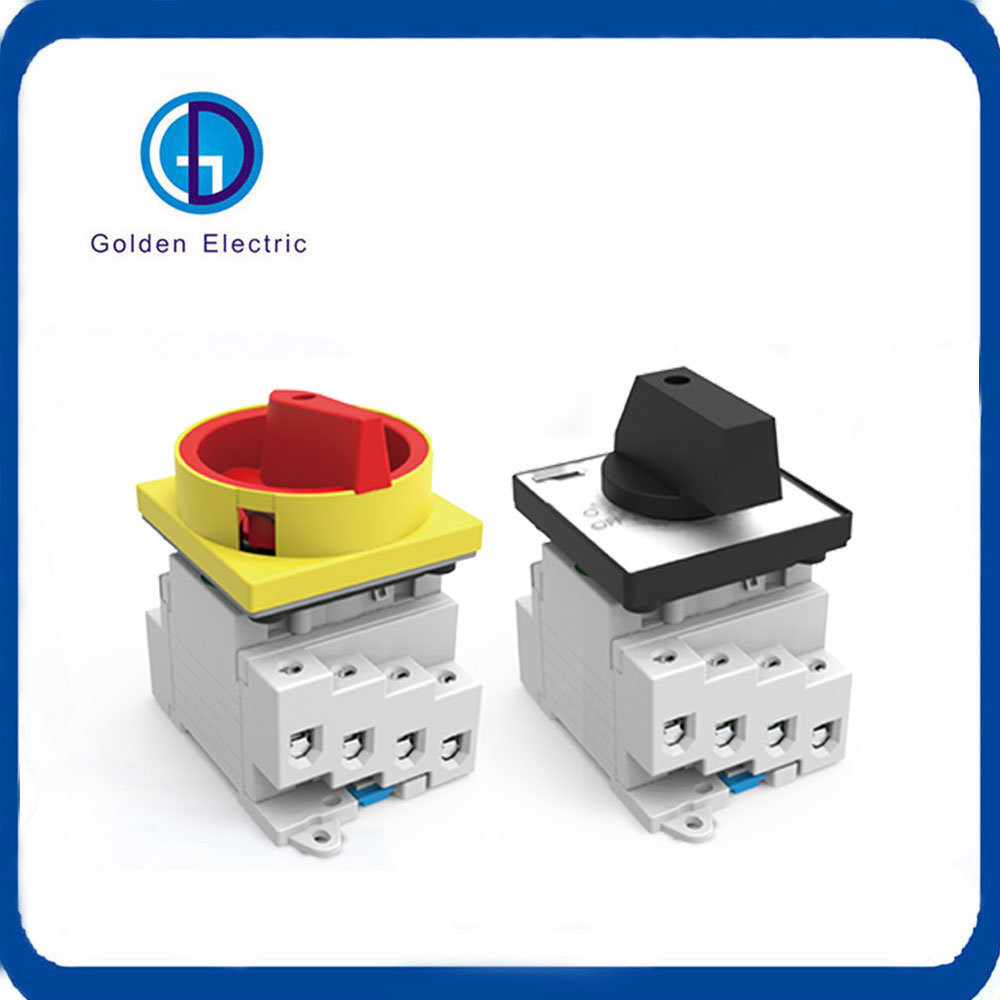

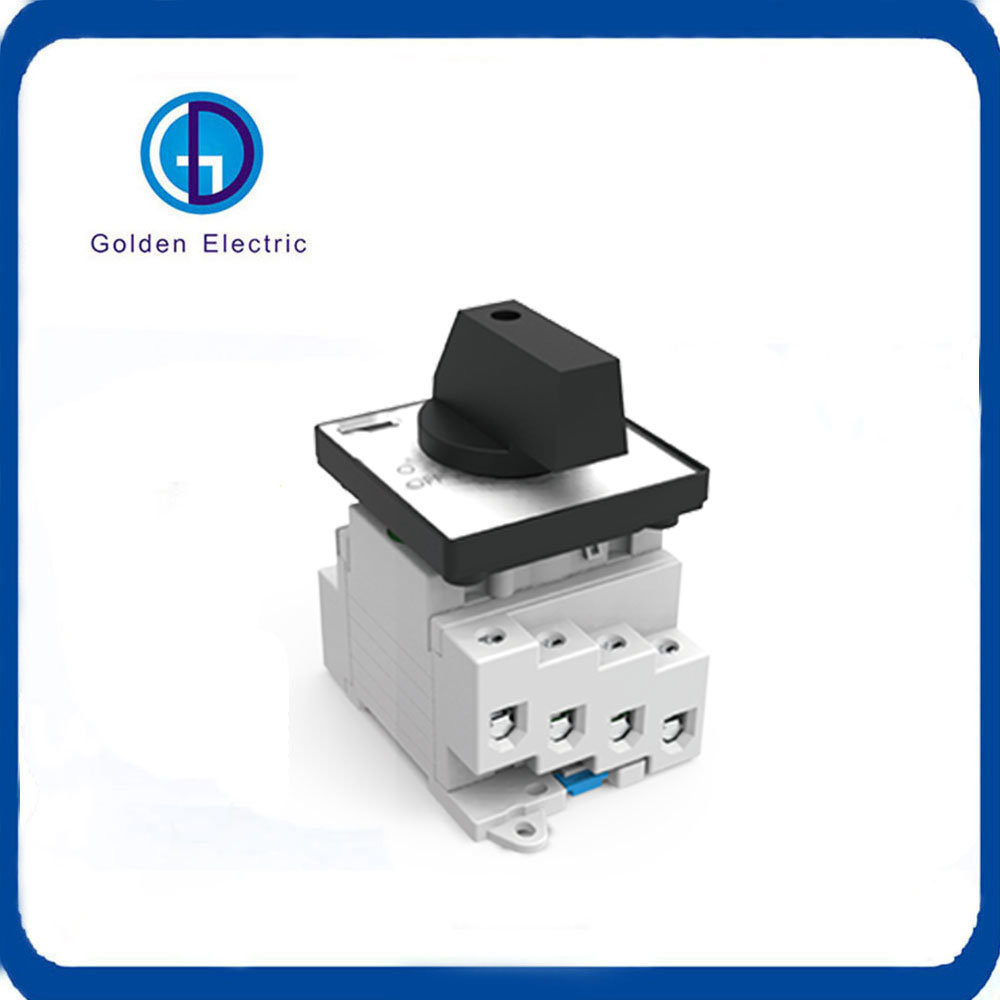

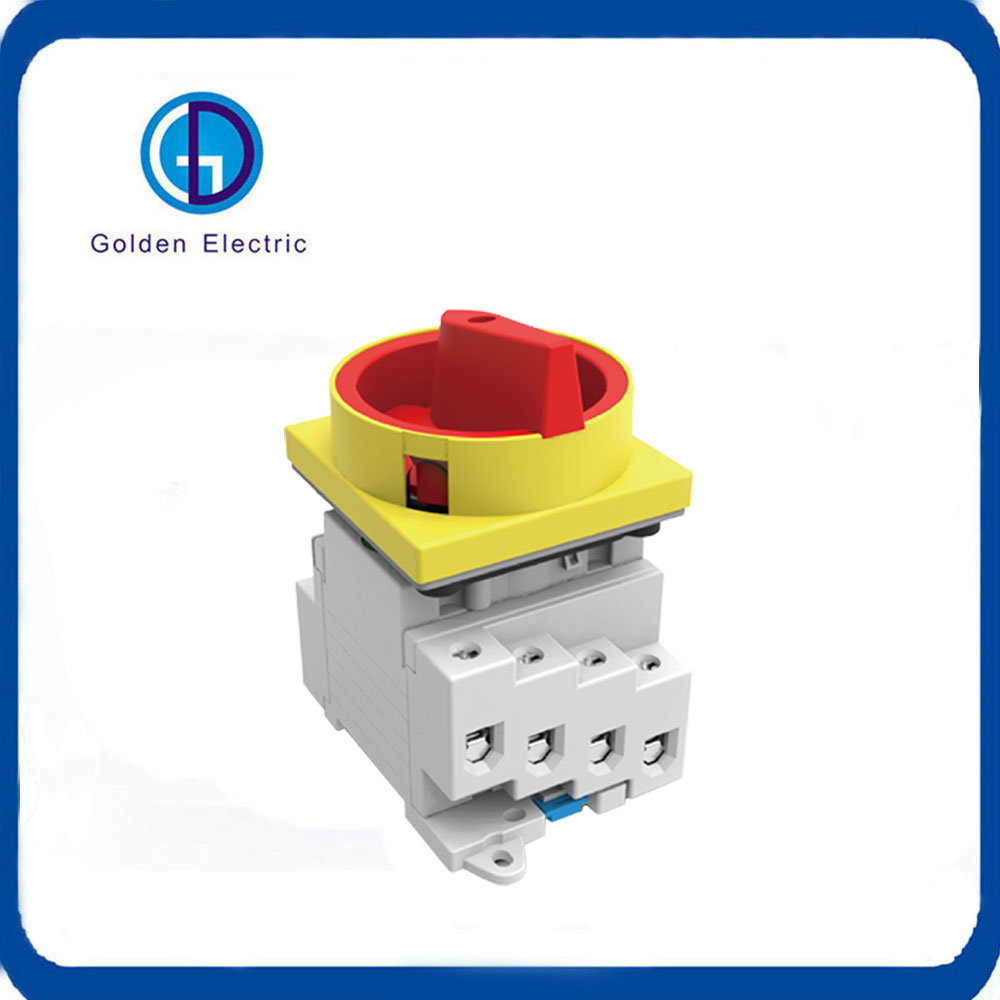

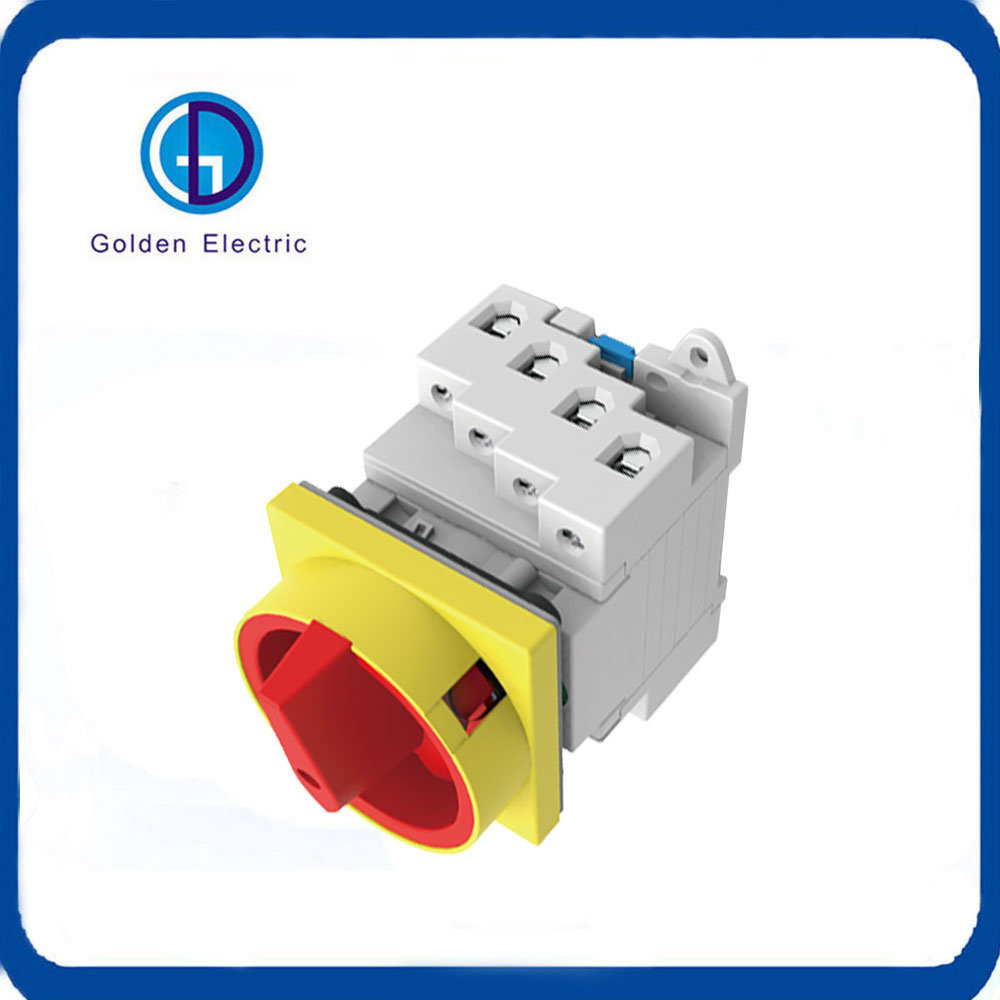

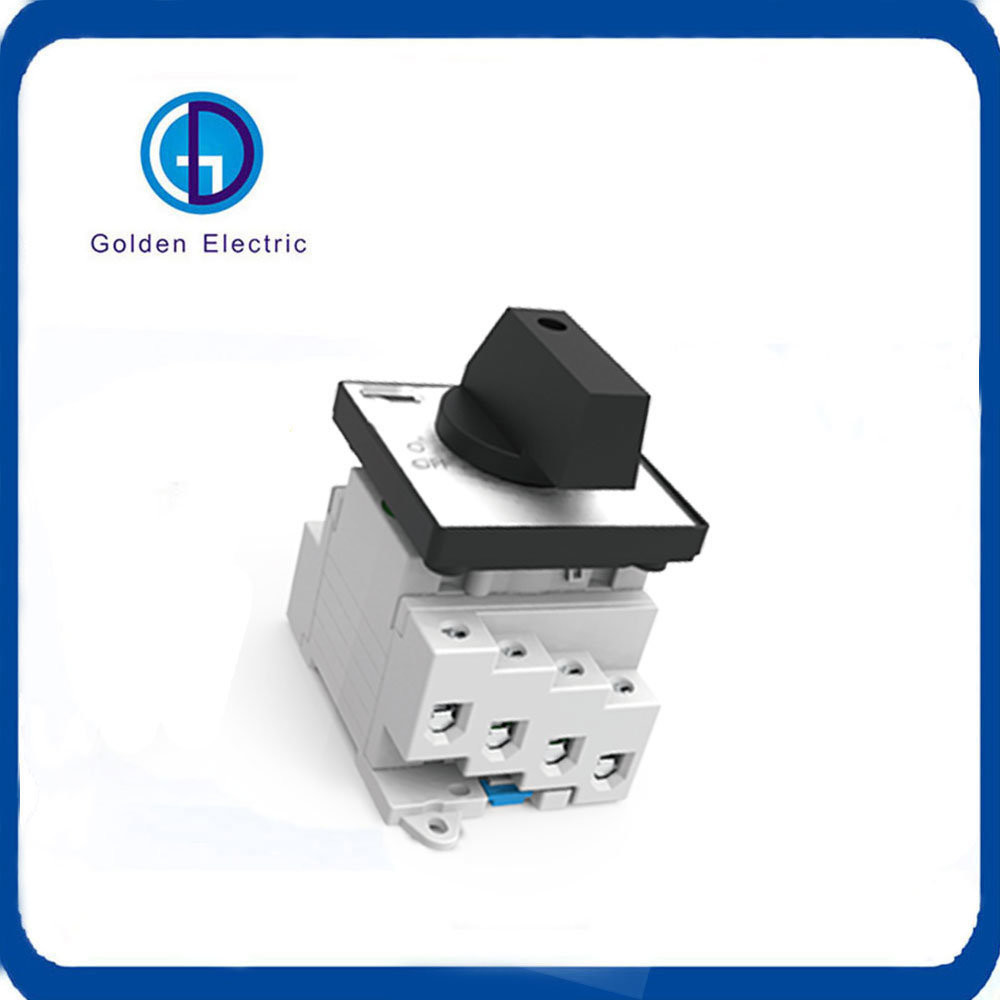

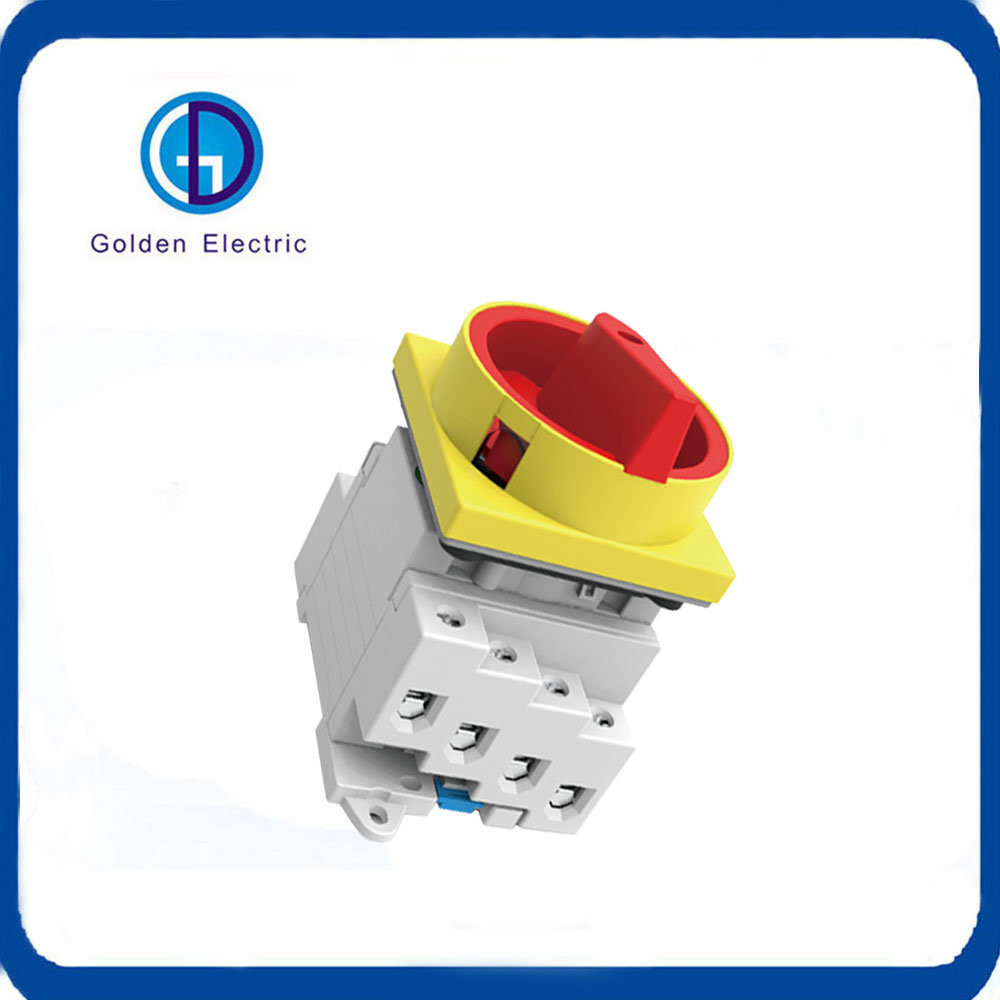

Modular design, DC insulation voltage 1500V, compact structure, 2-4 poles optional
Strong installation, good sealing, installation can make the machine as a whole IP66 class
Adopt parallel wiring, aperture is bigger, install firm, flexible and convenient
High-speed "on-off" switching mechanism, using energy storage spring, fast switching, maximum switching time is less than 3ms
Contact self-cleaning design, reduce the resistance and energy consumption of DC switch, extend the life of switch
Imported UL94V-0 flame retardant material can work at full load in the range of -40ºC~+70ºC ambient temperature
Passed IEC / EN60947-3: 2009+A1+A2 test, the product has TUV, CE, CB, SAA certification
| The following data are according to IEC/EN60947-3:2009+A1+A2, AS60947.3, Utilization category DC-PV2/DC-PV1 |
| Main Parameter |
GD100R/120R-32(R) |
| Rated insulation voltage (Ui) |
1500V |
| Rated thermal current (lth) |
32A |
| Rated impluse withstand voltage (Uimp) |
8000 |
| Rated short-circuit making capacity (lcw) |
1000 |
| Maximum cable cross sections(incl.jumper) |
|
| Solid or standard |
4-16mm² |
| Flexible |
4-10mm² |
| Flexible (+multicore cable end) |
4-10mm² |
| Torque |
|
| Tightening torque terminal screws M4 |
1.2-1.8Nm |
| Tightening torque shell mounting screws ST4.2(304 stainless steel) |
1.5-2.0Nm |
| Tightening torque knob screws M3 |
0.5-0.7Nm |
| Switching on or off Torque |
0.9-1.3Nm |
| The wiring Torque on Base |
1.1-1.4Nm |
| General parameters |
|
| Knob positions |
OFF at 9 hr, ON at 12 hr(Optional OFF at 12 hr, ON at 3 hr) |
| Mechanical life |
10000 |
| Number of DC poles |
2 or 4 (6,8 optional) |
| Operation temperature |
-40ºC to +86ºC |
| Storage temperature |
-40ºC to +86ºC |
| Pollution degree |
2 |
| Overvoltage category |
III |
| IP rating of share and mounting nul |
IP66 |
- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland,MC4 Connector, isolator switch , fuse , breaker , distribution box , PV combiner box ,surge protector, Indicator lamp,Solar Charge Controller,Industrial plug and socket,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
