Rain Resistant 8ka 2 Pole Dc Isolator Switch Real Time Detection

1
MOQ
Rain Resistant 8ka 2 Pole Dc Isolator Switch Real Time Detection
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Poles: 2p 4p
Grounding: Single Ground
Run: Plug-In
Switching Mode: Single Throw-in
Structure Of Operating: Manual
Brand: Golden Electric/OEM
Model No.: Gn4
Enclosure IP Rating: IP65
Rated Short-Time Withstand Current: 8ka
Enclosure Knockouts Size: M20/25
Rated Current: 16A,25A,32A
Max Rated Operating Voltage: DC1000V
Maximum Cable Cross Sections Solid: 4-16mm2
Maximum Ambient Temperature: -5~+65
Normal Speicifition: 600V 16A And 1000V 32A
Transport Package: Export Package 47X23X18cm
Specification: 16A25A32A
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8537209000
Supply Ability: 5000/Month
Type: High-voltage
Structure: Three-column Disconnector
Installation: Outdoor High-voltage
Operation: Manual
Grounding Mode: Grounding
Movement Mode: Plug-in Type
Samples: US$ 10/Piece 1 Piece(Min.Order) | Request Sam
Customization: Available | Customized Request
Highlight:

Rain Resistant 2 Pole Dc Isolator Switch

,

8ka 2 Pole Dc Isolator Switch

,

Real Time Detection 16a DC Isolator
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

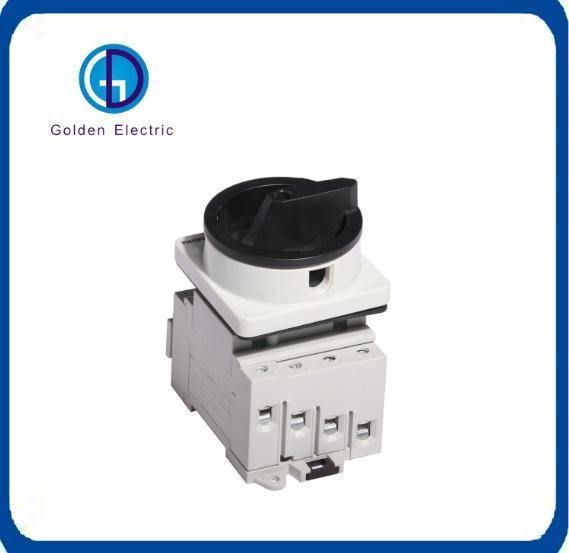

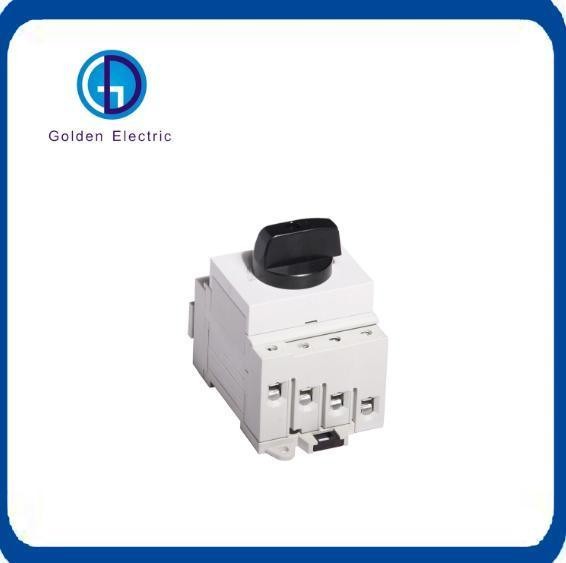

The GN4 Series DC Isolator switch have been specifically designed to switch Direct Current(DC) at voltages up to 1000Volts.Their robust design and ability to switch such voltages,at rated current,mean that they are ideally suited to be used in the switching of Photovoltaic(PV)systems.All Photo voltaic installations must have a DC Switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC 60364-7-712 Illustrated Fig1.
Solar Power 4p PV Switch DC Isolator
Technical Date(IEC60947-3 Rated oepration DC21B)
Model Number GN4-003 Standard IEC60947-3
No.of Poles 2&4 poles Rated Current 16A 25A 32A
IP Rating  IP65 Mechanical life 10
Max Rated Operating Voltage DC1000V Rated Short-time withstand current 8KA
Maximum cable cross sections solid or stranded 4-16MM2 Enclosure knockouts size M20/25
Maximum ambient temperature operation open -5~+65 Maximum ambient temperature -5~+45

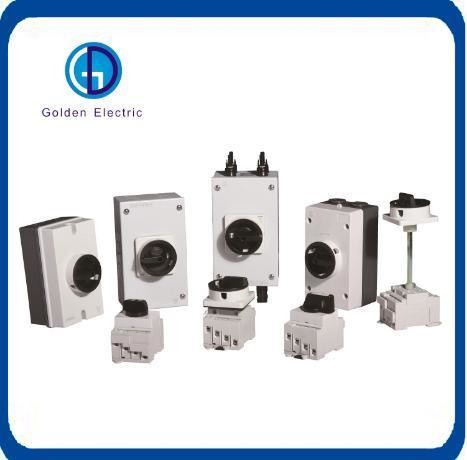

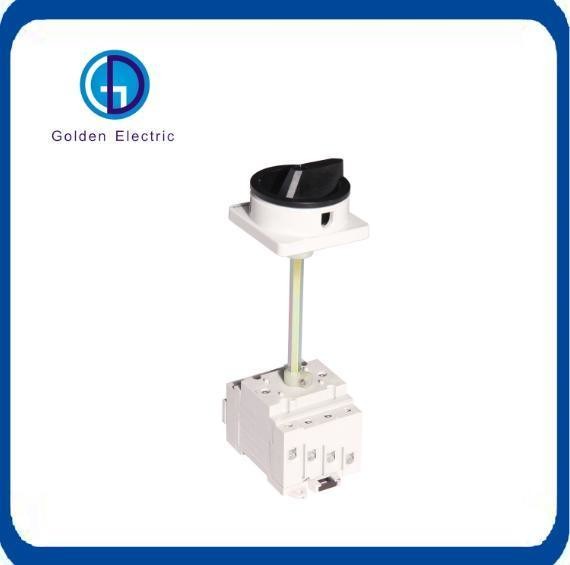

Solar Power 4p PV Switch DC Isolator
Solar Power 4p PV Switch DC Isolator

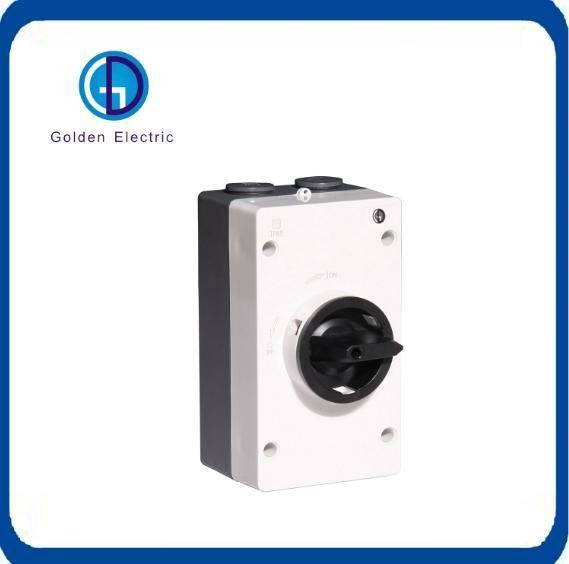

            Knock out type
  *IP65 rated plastic enclosure
  *16A,25A,32A,1000VDC
  *4*M20 knock outs
  *MC4 plugs and wiring can be selected

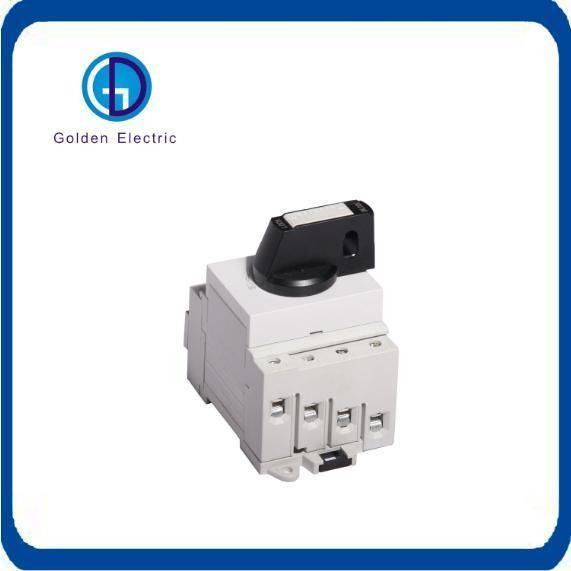

          Screw type
 *IP65 rated plastic enclosure
 *16A,25A,32A,1000VDC
 *2*SS mounting tabs
 *4*M25 threaded holes
 *Air valve helps air flowing and reducing temperature
Solar Power 4p PV Switch DC Isolator


Solar Power 4p PV Switch DC Isolator

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

                                         Any more query please contact with us, thank you!
