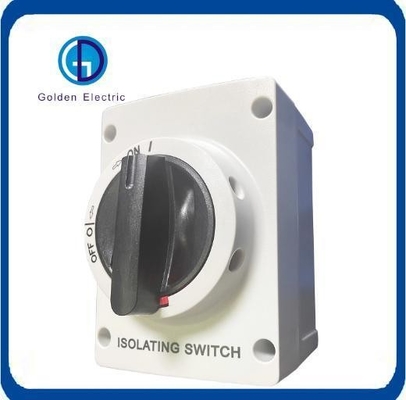

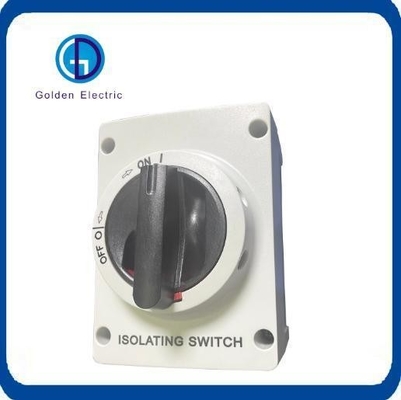

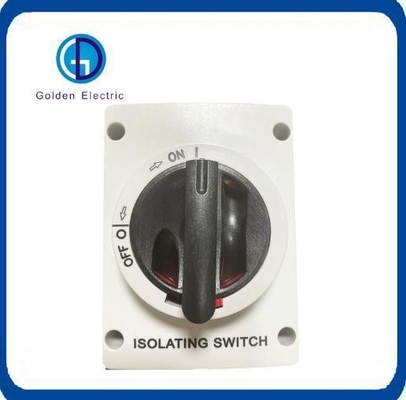

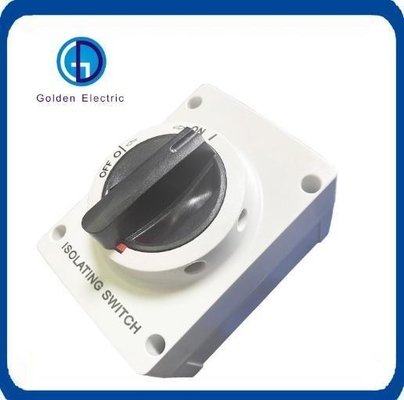

The GN4 Series DC Isolator switch have been specifically designed to switch Direct Current(DC) at voltages up to 1000Volts.Their robust design and ability to switch such voltages,at rated current,mean that they are ideally suited to be used in the switching of Photovoltaic(PV)systems.All Photo voltaic installations must have a DC Switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC 60364-7-712 Illustrated Fig1.
Knock out type
IP65 rated plastic enclosure
16A, 25A, 32A, 1000VDC
4 x M20 knock outs
MC4 plugs and wiring can be selected
Screw type
IP65 rated plastic enclosure
16A, 25A, 32A, 1000VDC
2 x SS mounting tabs
4 x M25 threaded holes
Air valve helps air flowing and reducing temperature
Technical Date(IEC60947-3 Rated oepration DC21B)
| Model Number |
GN4-003 |
Standard |
IEC60947-3 |
| No.of Poles |
2&4 poles |
Rated Current |
16A 25A 32A |
| IP Rating |
IP65 |
Mechanical life |
10 |
| Max Rated Operating Voltage |
DC1000V |
Rated Short-time withstand current |
8KA |
| Maximum cable cross sections solid or stranded |
4-16MM2 |
Enclosure knockouts size |
M20/25 |
| Maximum ambient temperature operation open |
-5~+65 |
Maximum ambient temperature |
-5~+45 |
Technological characteristics
Knock out type
*IP65 rated plastic enclosure
*16A,25A,32A,1000VDC
*4*M20 knock outs
*MC4 plugs and wiring can be selected
Screw type
*IP65 rated plastic enclosure
*16A,25A,32A,1000VDC
*2*SS mounting tabs
*4*M25 threaded holes
*Air valve helps air flowing and reducing temperature
