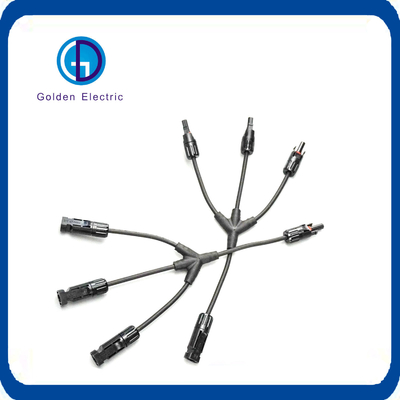

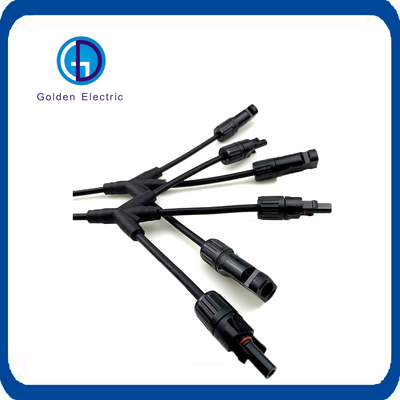

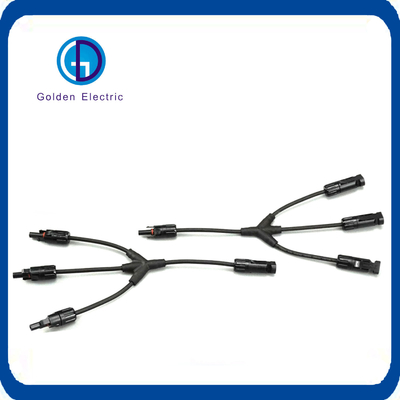

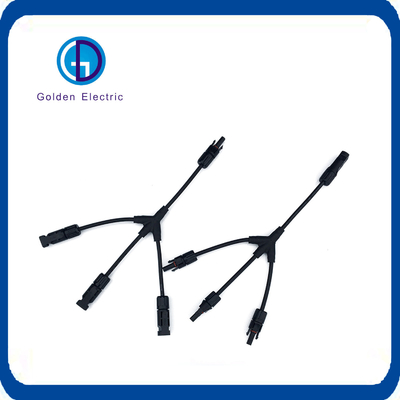

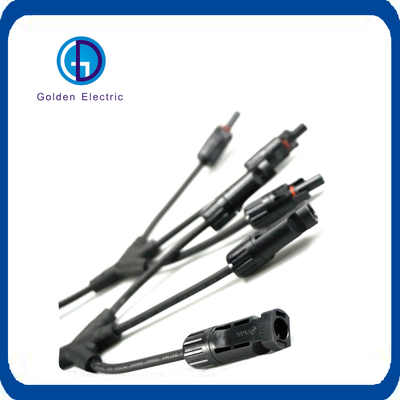

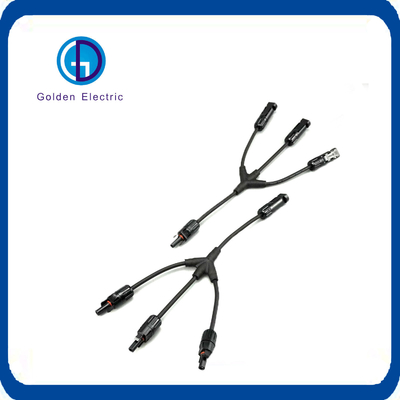

PV Mc004-3t1 Round Connector 1500V/30A Compatible with Mc4 Integration PV004-3t1

1
MOQ
PV Mc004-3t1 Round Connector 1500V/30A Compatible with Mc4 Integration PV004-3t1
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: GD-PV MC4
Rated Voltage: 1000V(TUV),600V(UL)
Rated Current: 25A/30A/45A/80A Optioanl
Warranty: 2 Year
Model No.: PV Mc004-3t1
Shape: Round
Transport Package: Standard Export Carton
Specification: 2.5/4/6 14/12/10AWG
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8537209000
Supply Ability: 5000/Month
Application: Power
Terminal Material: Copper
Interface Type: DC/DC
Housing Material: PPO
Flame Class: UL94V-0
Contact Resistance: Below 5m
Samples: US$ 0.8/Piece 1 Piece(Min.Order) | Request Sa
Customization: Available | Customized Request
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description


Product Description

MC-4 Solar Panel Cable Connectors with Assembly Tool,10 Pairs Copper Solar Wire Adapter Male/Female Waterproof Connector for Connecting Solar Panels 1000V 30A

Features


1.Load Capability with big current and high voltage
2.Lower contact resistance
3.Desugn of waterproof and dustproof
4.Excellent performances of high-low temperature,fireproof ,anti-ultraviolet

Product Parameters



Type PV-004-3T1
Rated Voltage 1000V DC/1500V DC
 Contact  resistance <1mΩ

 Rated current:

 30A/50A
 Temperature  range  -40ºC ~ +85ºC

 Contact material

  Copper,tin plated

Insulation Voltage

 6000V
Fire-proof level UL94-V0

Details display



PV Connector 1500V/30A PV004-3t1 Match with Mc4
PPO material
Insulating material, strong heat resistance, low flammable point. Wear-resistant, durable and corrosion-resistant; the contact hole head of the product is provided with guide insulation to prevent static electricity
PV Connector 1500V/30A PV004-3t1 Match with Mc4
PV Connector 1500V/30A PV004-3t1 Match with Mc4
High-quality sealing waterproof ring
The product adopts high-quality waterproof ring, and the waterproof and dustproof grade reaches IP67


Drawings



PV Connector 1500V/30A PV004-3t1 Match with Mc4

Application field

Solar photovoltaic connector PV004-3T1 (compatible with MC4 connector) is a connector when solar photovoltaic panels are connected in series to form an array module. It has the characteristics of fast and reliable connection, dustproof and waterproof, and easy to use. The shell has anti-aging, anti-ultraviolet, etc. ability
PV Connector 1500V/30A PV004-3t1 Match with Mc4

Other Hot-Selling Models



PV Connector 1500V/30A PV004-3t1 Match with Mc4The Delivery time and shipping of MC4 solar cable connector
Deilivery time:
1-7 days after confirming order
Shipping:
1. Shipment port:GUANGZHOU
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders
