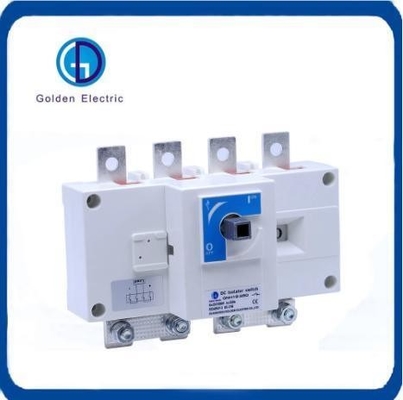

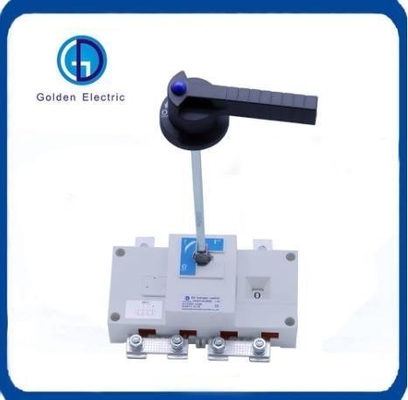

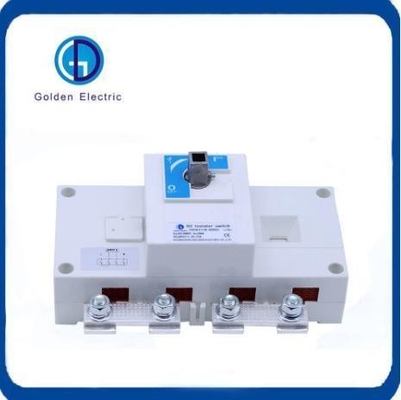

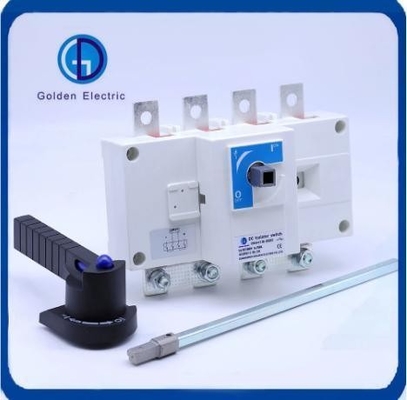

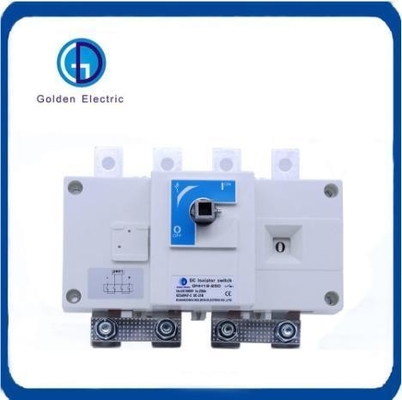

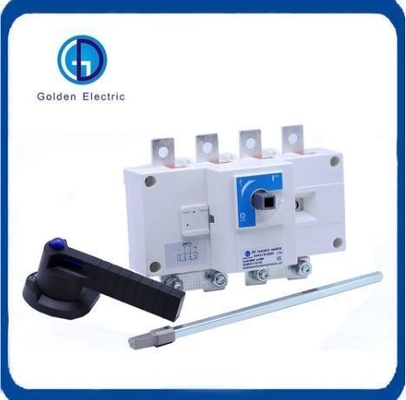

Low Voltage Three Column Solar DC Isolator Switch For Photovoltaic Solar DC 1600A

1
MOQ
Low Voltage Three Column Solar DC Isolator Switch For Photovoltaic Solar DC 1600A
Features Gallery Product Description Request A Quote
Features
Specifications
Run: Plug-In
Switching Mode: Single Throw-in
Common Model: Ukf
Structure Of Operating: Manual
Brand: Golden/OEM
Color: Grey
Function: Conventional Circuit Breaker, Overcurrent Protecti
Waterproof: IP66
Current: 100A-1600A
Wiring: Upside Input, Downside Output
Rated Insulation Voltage: 1500V
Pollution Degree: 2
Solid Or Standard: 4~16mm2
Rated Voltage: DC 1500V / 1000V
Contact: Copper
Protection Grade: IP20
Name: Solar DC Disconnect Switch
Working Temperature: -5 To 40°c
Working Humidity: 50% - 90%
Transport Package: Standard Export Carton
Specification: 1p/2p/3p/4p
Trademark: Golden Electric Or Customize
Origin: China
HS Code: 8543709990
Supply Ability: 5000/Month
Type: Low-voltage
Structure: Three-column Disconnector
Installation: Home Use And Outdoor Use
Operation: Manual
Grounding Mode: Un Grounded
Grounding: Un Grounded
Samples: US$ 2/Piece 1 Piece(Min.Order) | Request Samp
Customization: Available | Customized Request
Highlight:

Three Column Solar DC Isolator Switch

,

1600A Solar DC Isolator Switch

,

Photovoltaic Isolation Disconnect Switch
Basic Infomation
Place of Origin: China
Brand Name: Golden Electric /OEM
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Carton/Pallet
Delivery Time: Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, PayPal, Western Union
Supply Ability: 5000/Month
Product Description

Product Description

GNH19 series products are DC load disconnectors. They can ensure the disconnection and connection of DC circuits under load, as well as safety isolation. They are mainly used in the field of photovoltaic systems. The rated voltage can reach 1500VDC and the maximum current can reach 630A.
* Various current shells optional
* Adopt flame retardant V0 grade material
* Adopt T2 grade copper material
* Supports two installation methods: installation outside the cabinet and installation inside the cabinet
* With observation window, obvious disconnection mark, enhance the safety of use
* Contact embossing design, increase the contact surface to ensure the performance
* Handle with lock function


Photovoltaic Solar DC 1000V 1500V 100A-1600A Disconnector Switch
Rated operational voltage Ue: DC1000/DC1500V
Rated operational current Ie: 100A-1600A
Rated insulation voltage Ui: DC1500V
Poles: 2P (with connect bar), 4P
Connect Material: Red Copper
Pollution degree: 3
Storage temperature: -25 to 55°C
Protection grade: IP20
Installation altitude: 2 000 m
Working Temperature: -5 to 40°C
Storage temperature: -25 to 55°C
Working humidity: 50% - 90%





Product Parameters



GNH19 100-400A

Type GNH19-100/4 GNH19-125/4 GNH19-160/4 GNH19-200/4 GNH19-250/4 GNH19-315/4 GNH19-400/4
Rated operational current le 100A 125A 160A 200A 250A 315A 400A
Rated operational voltage Ue DC1000V/DC1500V
Rated insulation voltage Ui 1500V
Installation category IV
Utilization category DC-21B
Dielectric Strength 3820V
Rated impluse withstand voltge Uimp 12kV
Rated limited short time withstand current (lcw/lcs) 6kA 8kA
Rated short time making capacity(lcm) 10kA 13.6kA
Mechancial endurance times 1700 1400 800
Electrial endurance times(DC1500V) 300 200
Operating Torque 10N.m 21N.m
Power Lose W 15 20



GNH19 500-1600A

Type GNH19-500/4 GNH19-630/4 GNH19-800/4 GNH19-1000/4 GNH19-1250/4 GNH19-1600/4
Rated operational current le 500A 630A 800A 1000A 1250A 1600A
Rated operational voltage Ue DC1000V/DC1500V
Rated insulation voltage Ui 1500V
Installation category IV
Utilization category DC-21B
Dielectric Strength 3820V
Rated impluse withstand voltge Uimp 12kV
Rated limited short time withstand current (lcw/lcs) 10kA
Rated short time making capacity(lcm) 13.6kA 10kA
Mechancial endurance times 800 500
Electrial endurance times(DC1500V) 200 100
Operating Torque 21N.m 50N.m
Power Lose W 20 25 70 110 165 265

Dimensions





Photovoltaic Solar DC 1000V 1500V 100A-1600A Disconnector Switch
Assemble Dimension
Photovoltaic Solar DC 1000V 1500V 100A-1600A Disconnector Switch

Provide you with many options

Photovoltaic Solar DC 1000V 1500V 100A-1600A Disconnector Switch

Packaging & Shipping

Photovoltaic Solar DC 1000V 1500V 100A-1600A Disconnector Switch

1) Are you a factory or trading company?
Yes we are  factories.

2) What is your FOB port?
FOB Guangzhou, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many
overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very
easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
